Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Puck |
| For Use With | Level Measurement |
| Function | Non-contact Level Measurement |
| IP Rating | IP65 |
| Measurement Range | 1-32.8 ft |
| Mounting Type | NPT 2 in |
| Output | 4-20 mA |
| Sensing Mode | Ultrasonic |
| Series | |
| Special Features | LCD Display |
| Supply Voltage | 12-28 VDC |
| Termination | Cable |
| Type | Level Transmitter |
Overview

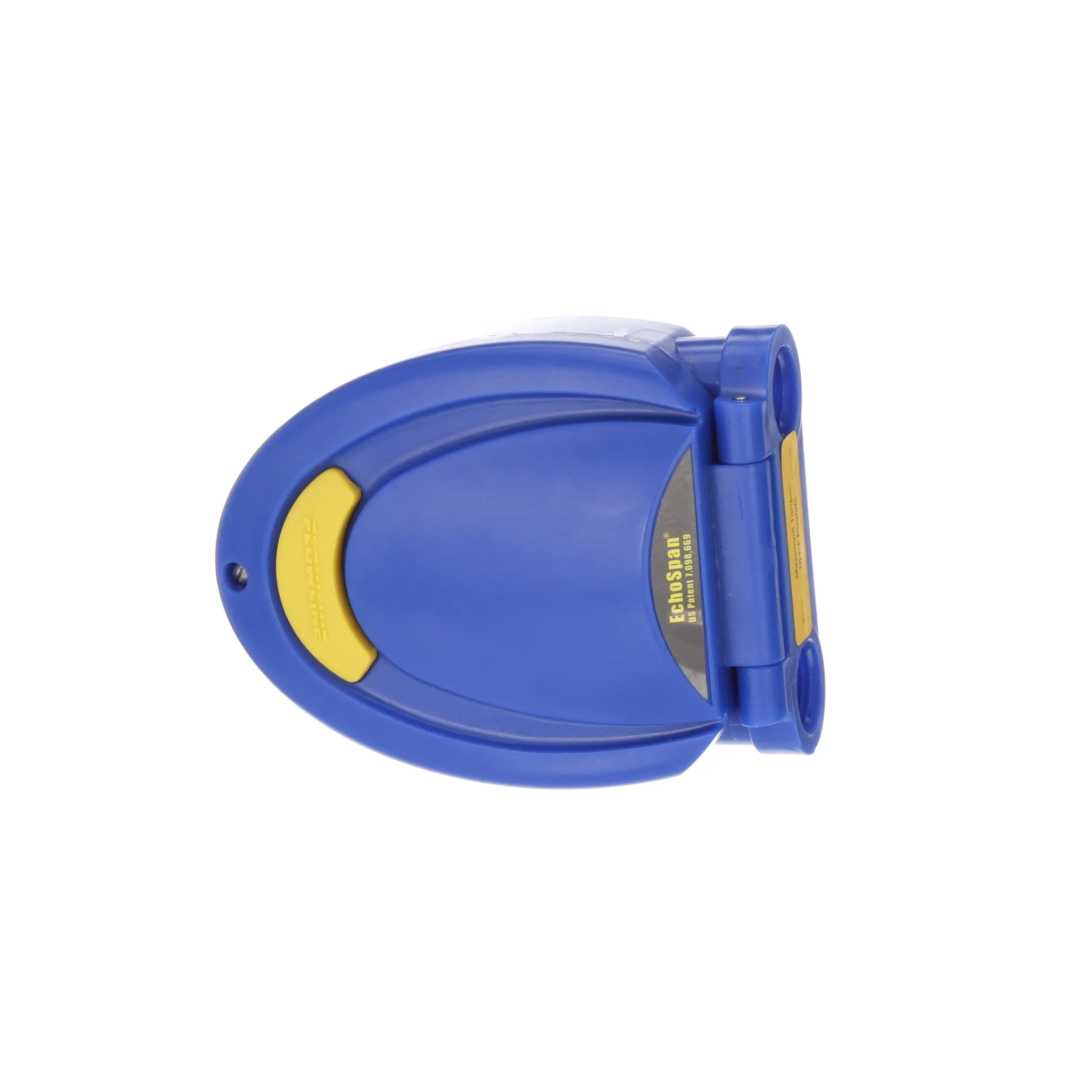

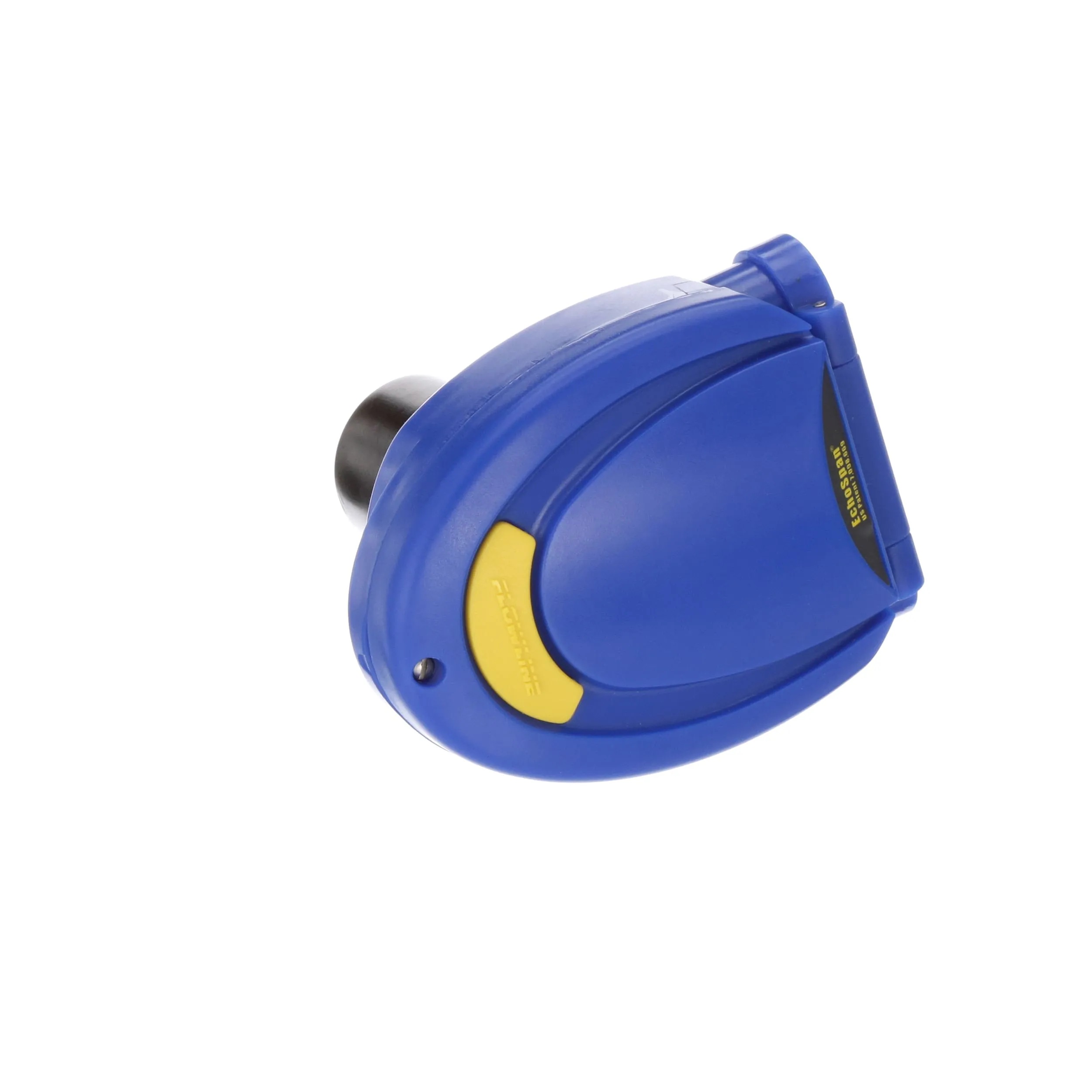

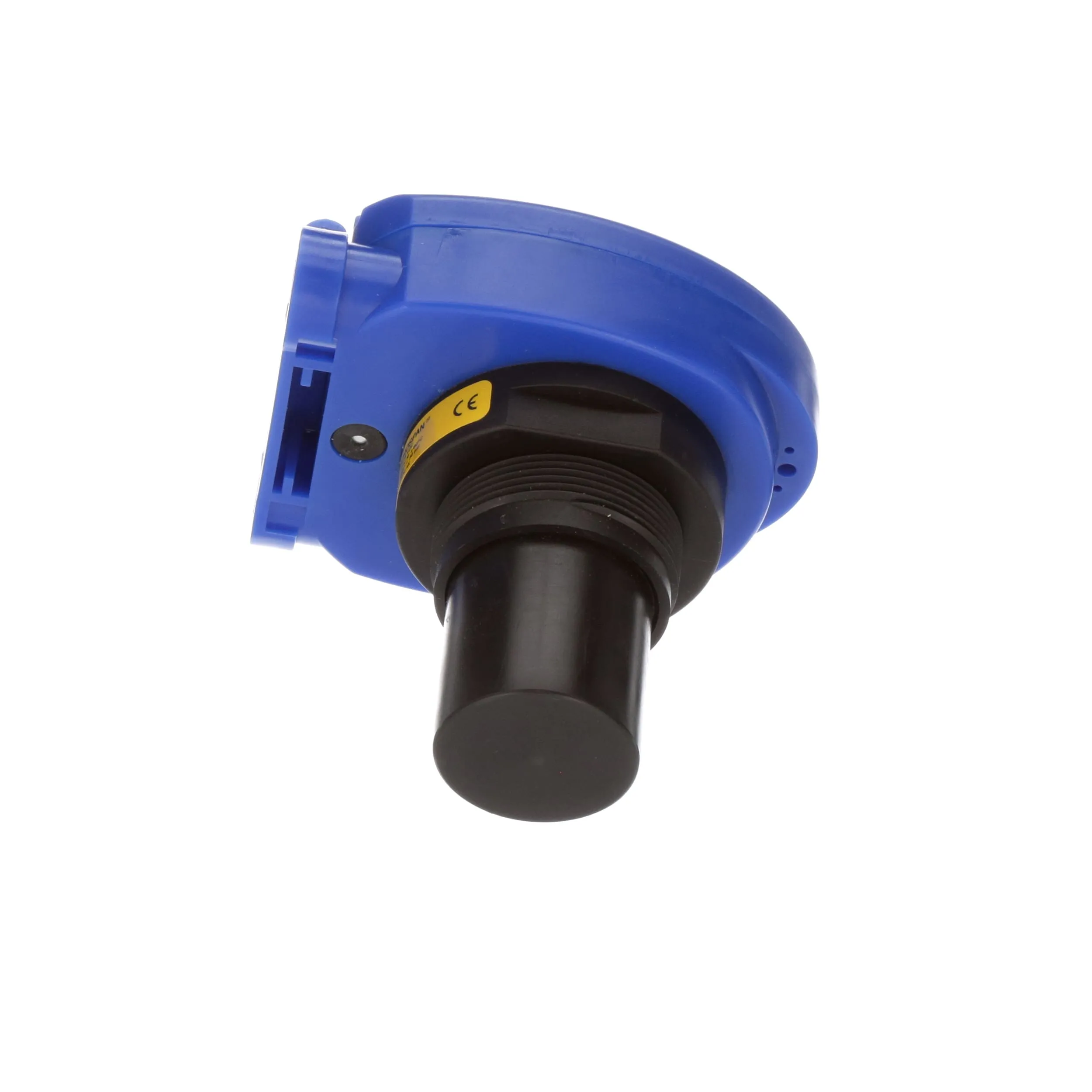

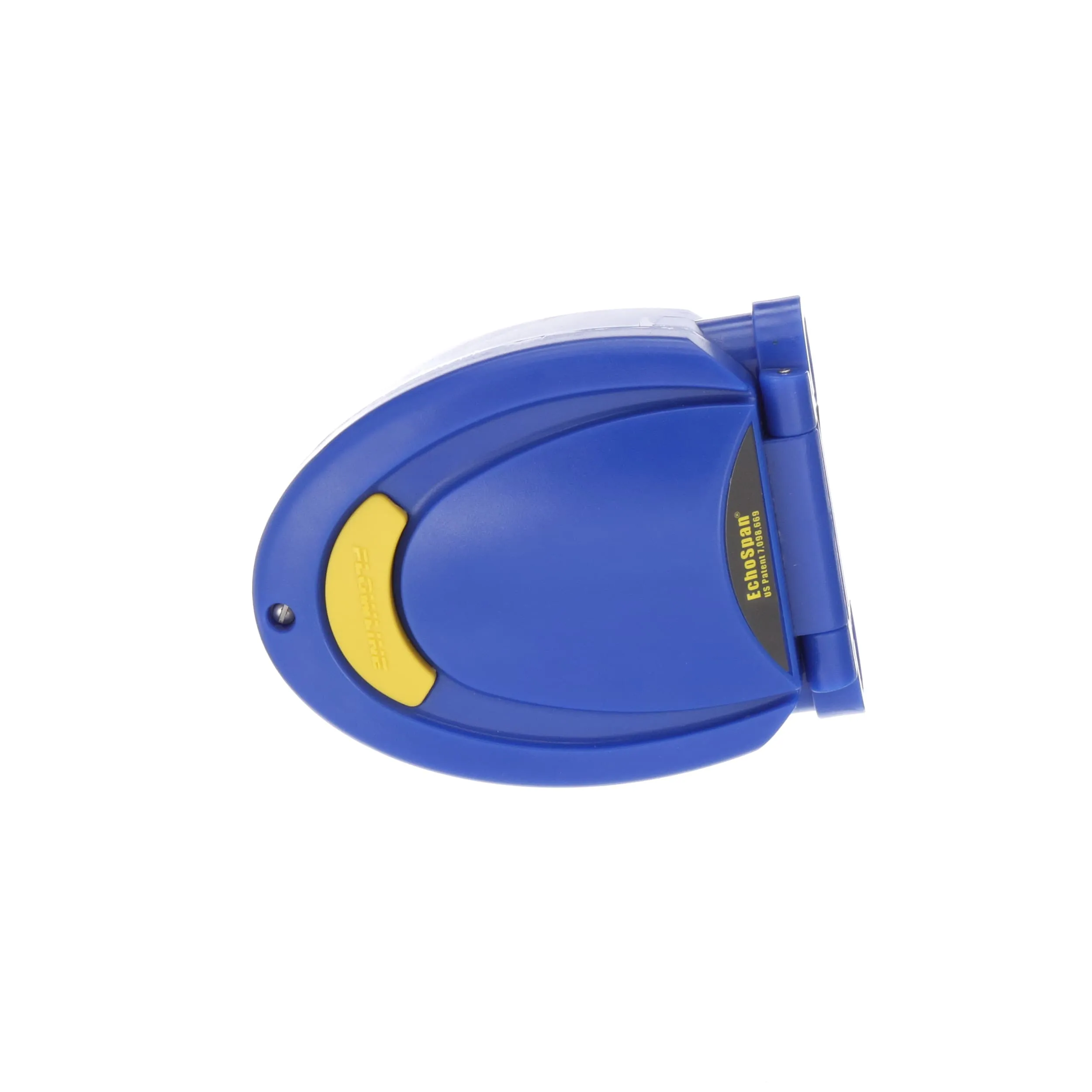

EchoSpan® Ultrasonic Level Transmitter. The general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8' (10 m) with a 4-20 mA signal output, and is configured via the integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications.
Features:
