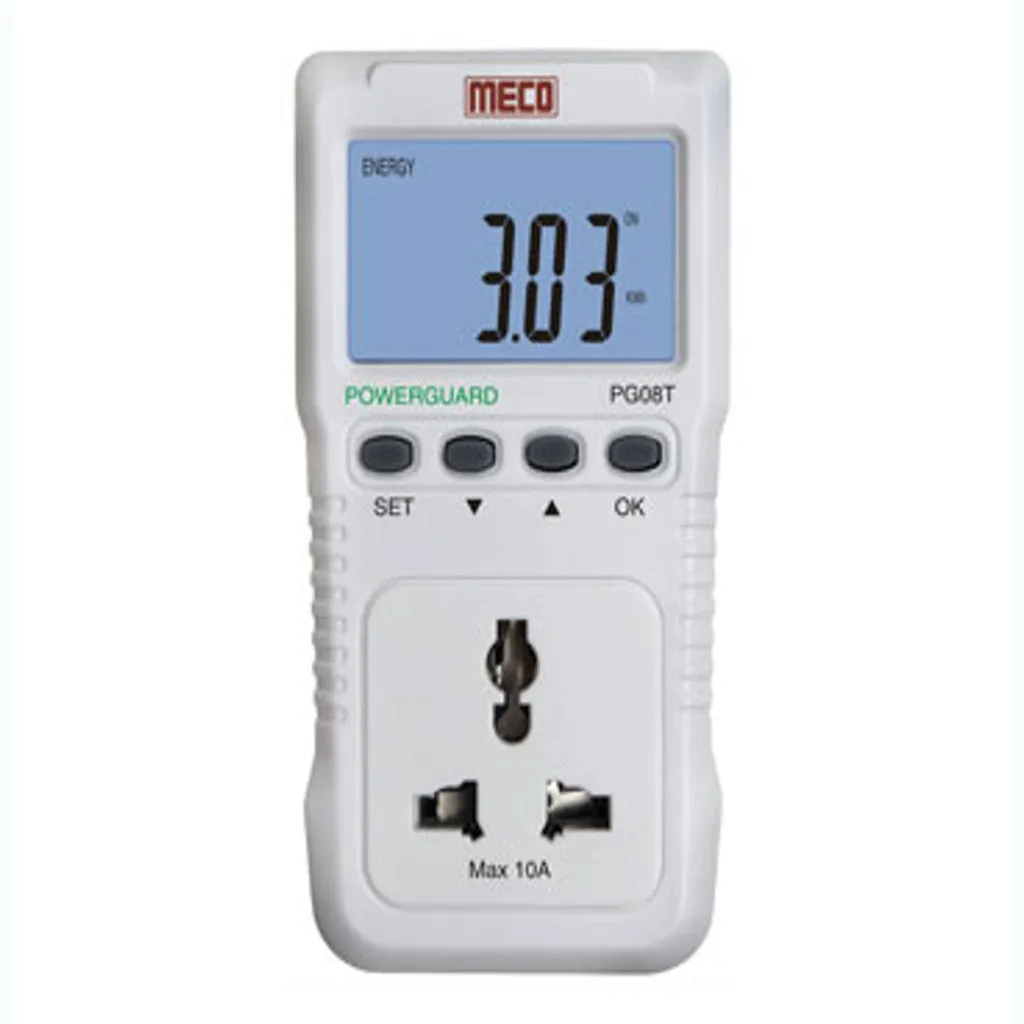

Product Description
-
Three Pin Socket & Plug Suitable for Indian Socket
-
Large LCD Display with Backlight
-
Memory Retention (KWh, MIN, CU, CU/KWh, CO2)
-
Counts CO2 generated by Electrical Equipment (0.555kg CO2 is generated by using 1 KWh Energy)
-
Timer & Relay Function for Power ON / OFF the Load
-
TRMS V & mA for Sine Wave
-
Measures
-
Power (W)
-
Power Factor (PF)
-
Carbon Emission (CO2 in Kg)
-
Total Used Time (MIN)
-
Money (CU)
-
Tariff (CU/KWh)
-
Timer (DHH:MM)
-
Frequency (Hz)
-
Energy (KWh)
-
TRMS Current (mA)
-
TRMS Voltage (V)
-
Applications
-
Teaching, Demonstration & Testing of Electrical Energy Consumption of Household / Office Appliances like Refrigerator, Washing Machine, Microwave Oven, LED Lights etc
-
It can be used in Houses, Offices, Shops, Schools, Laboratories etc
Product Specification
|
Brand |
Meco |
||
|
Product Model |
PG08T |
||
|
Product Type |
Power Guard |
||
|
Functions (Annunciator) |
Input Range |
Accuracy (% of FS) (FS = 2200W) |
|
|
Power (W) |
0.2 ~ 1W |
< 10 |
|
|
1 ~ 10W |
5 |
||
|
10 ~ 2200W |
1 |
||
|
Power Factor (PF) |
For 0.2 ~ 5W |
NA |
|
|
For 5 ~ 10W |
|||
|
For 10 ~ 2000W |
< 0.05 PF |
||
|
CO2 (Kg) |
CO2 (Kg) |
NA |
|
|
Total Usage Time (MIN) |
Minutes |
||
|
Money (CU) |
CU |
||
|
Tariff (CU/KWh) |
CU/KWh |
||
|
Timer |
000:01 ~ 923:59 (DHH:MM) |
||
|
Frequency (Hz) |
45 - 55Hz |
±0.05Hz |
|
|
Energy (KWh) |
For 5 ~ 2200W |
1 |
|
|
TRMS Current (mA) |
0.02 ~ 100mA 100mA ~ 10A |
NA 3 |
|
|
TRMS Voltage (V) |
195 ~ 265V |
0.5 |
|
|
Warranty |
1 Year |
||
