Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-196-RS |
| Body Style | Cylindrical |
| Length, Probe | 150 mm |
| Measurement Range | -50 to 250 C |
| Sensor Type | PT100 |
| Shop By | Factory Choice |
| UPC Code | 5056111996355 |
| Warranty | 3 Year Warranty |
Overview

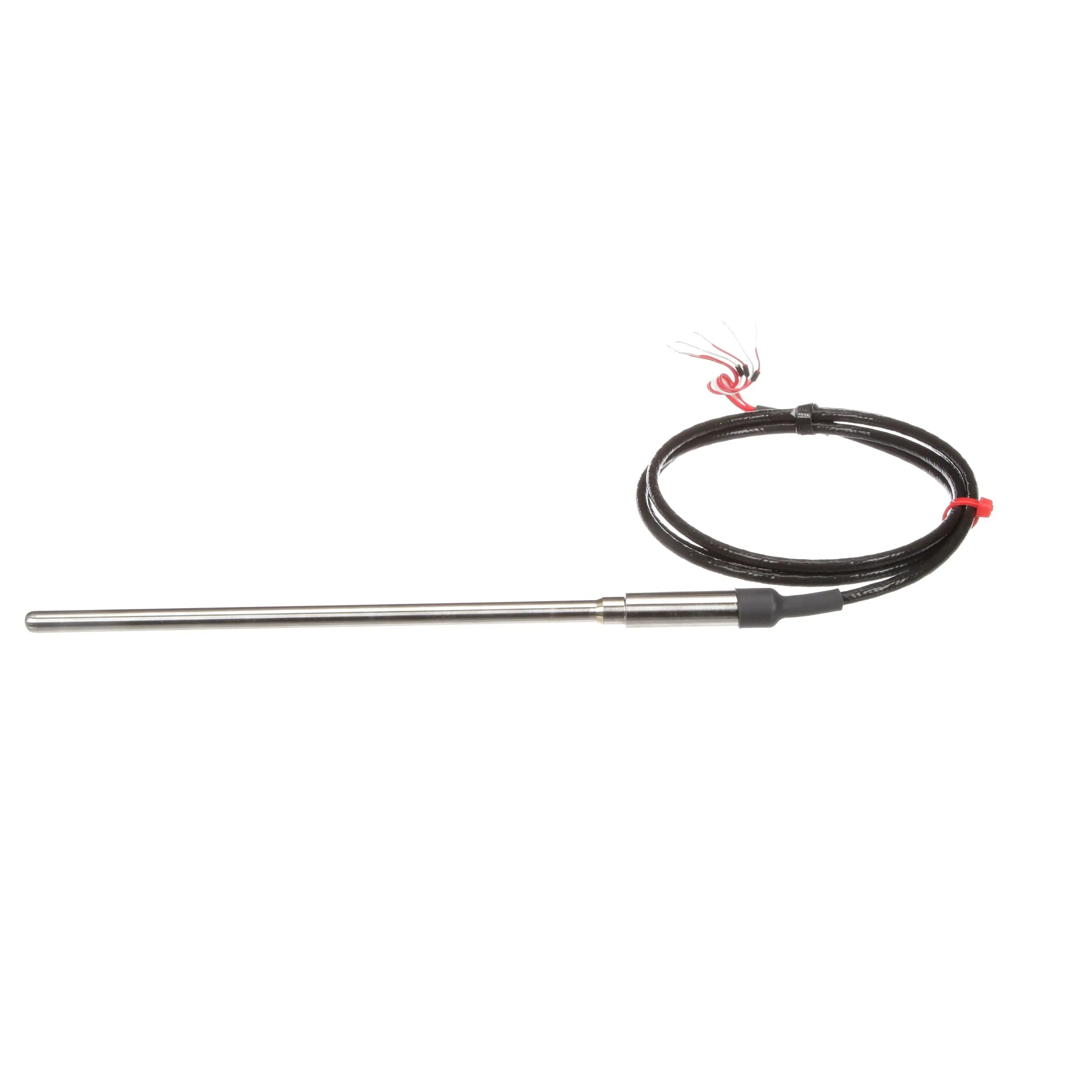

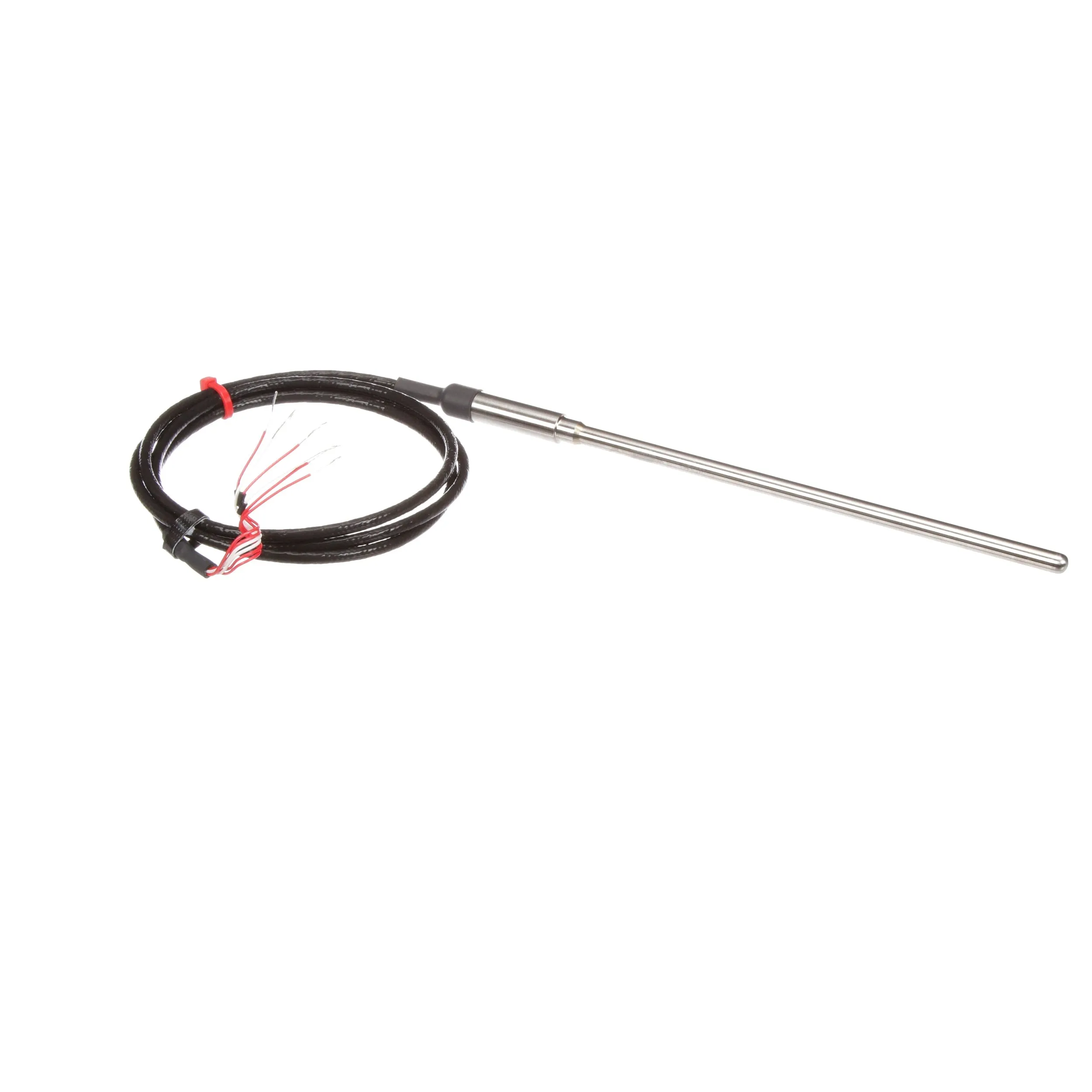

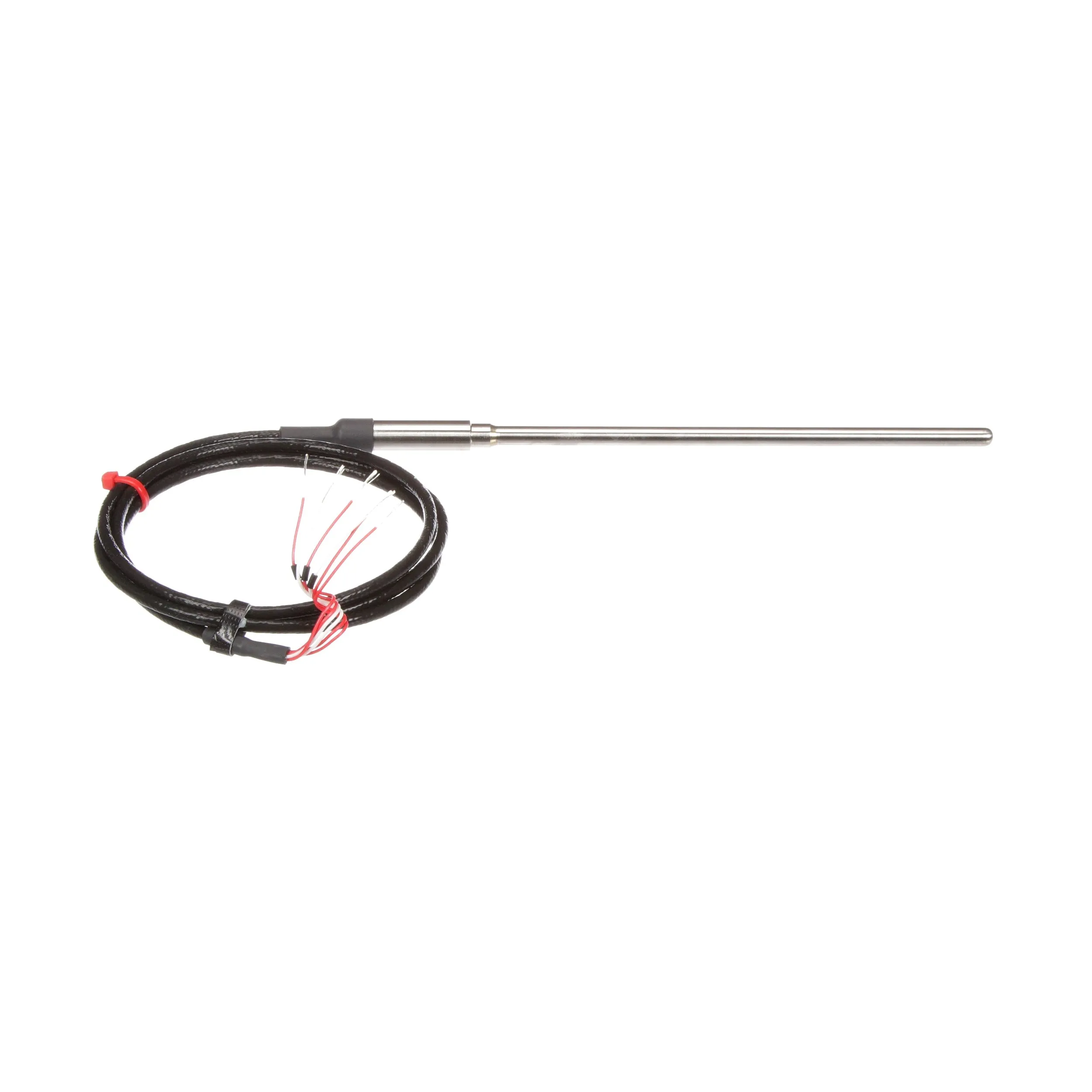

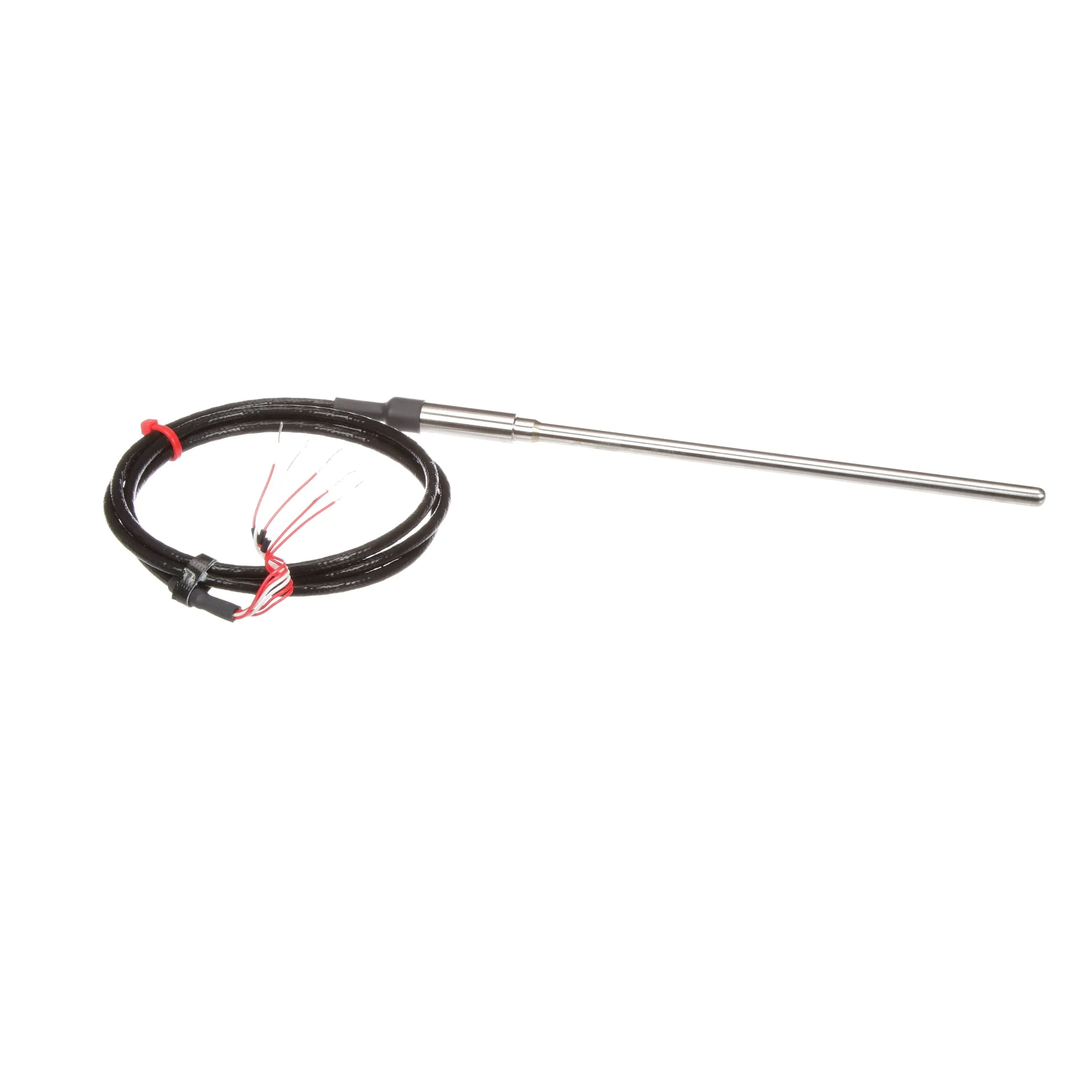

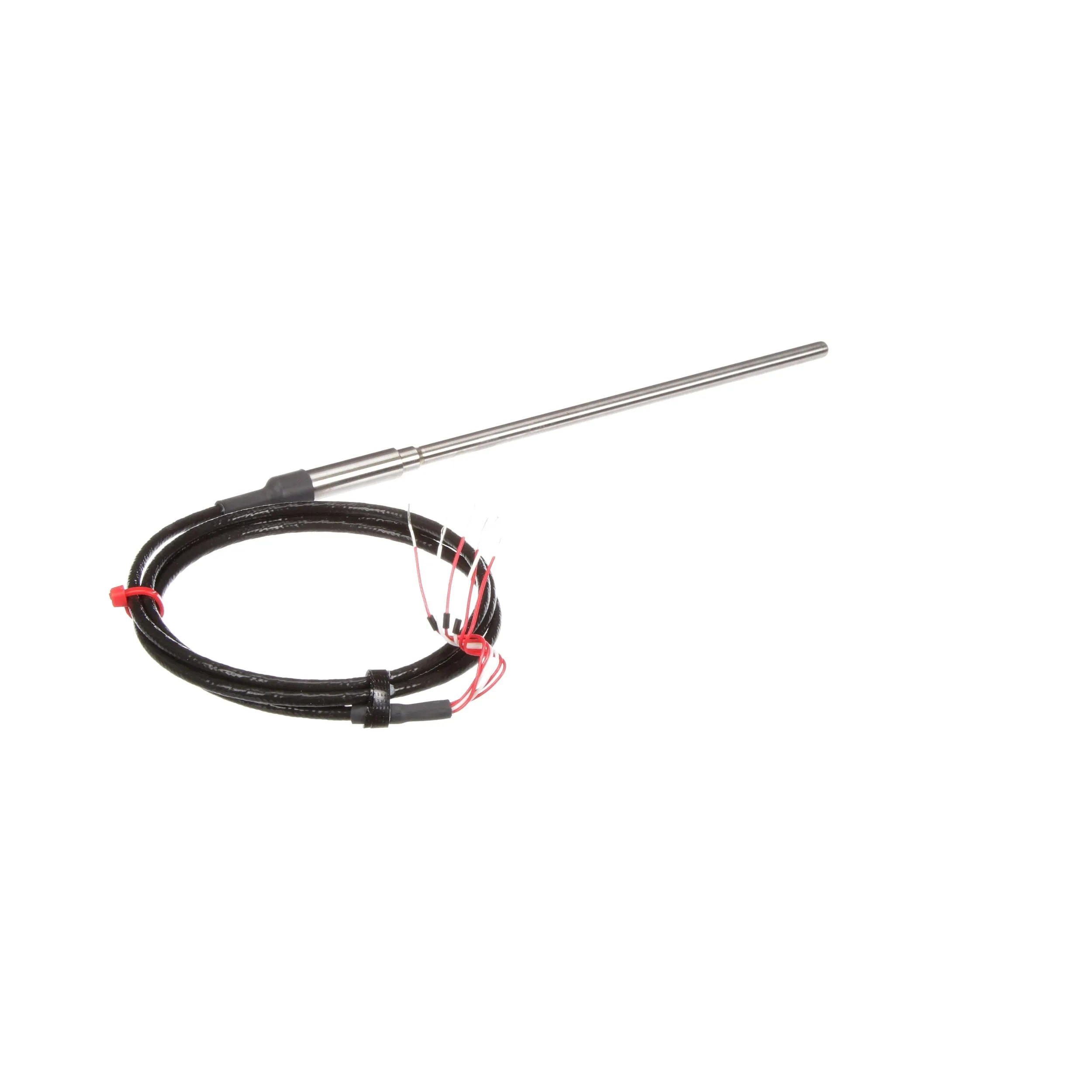

Industrial Style & Mineral Insulated Duplex PT100 Sensors
Duplex PRT’s with two independent PT100 detectors inside the tip of the probe. This allows one probe to be connected to two measurement or control devices; alternatively one sensor may be used as a primary and the other as a backup, eliminating the need to remove and replace the probe if one of the sensors should fail.
Duplex PT100 class B, 3-wire
6-core screened cable
Stainless steel (316) sheath
Plain pot seal
Mineral insulated types can be carefully bent into shape
