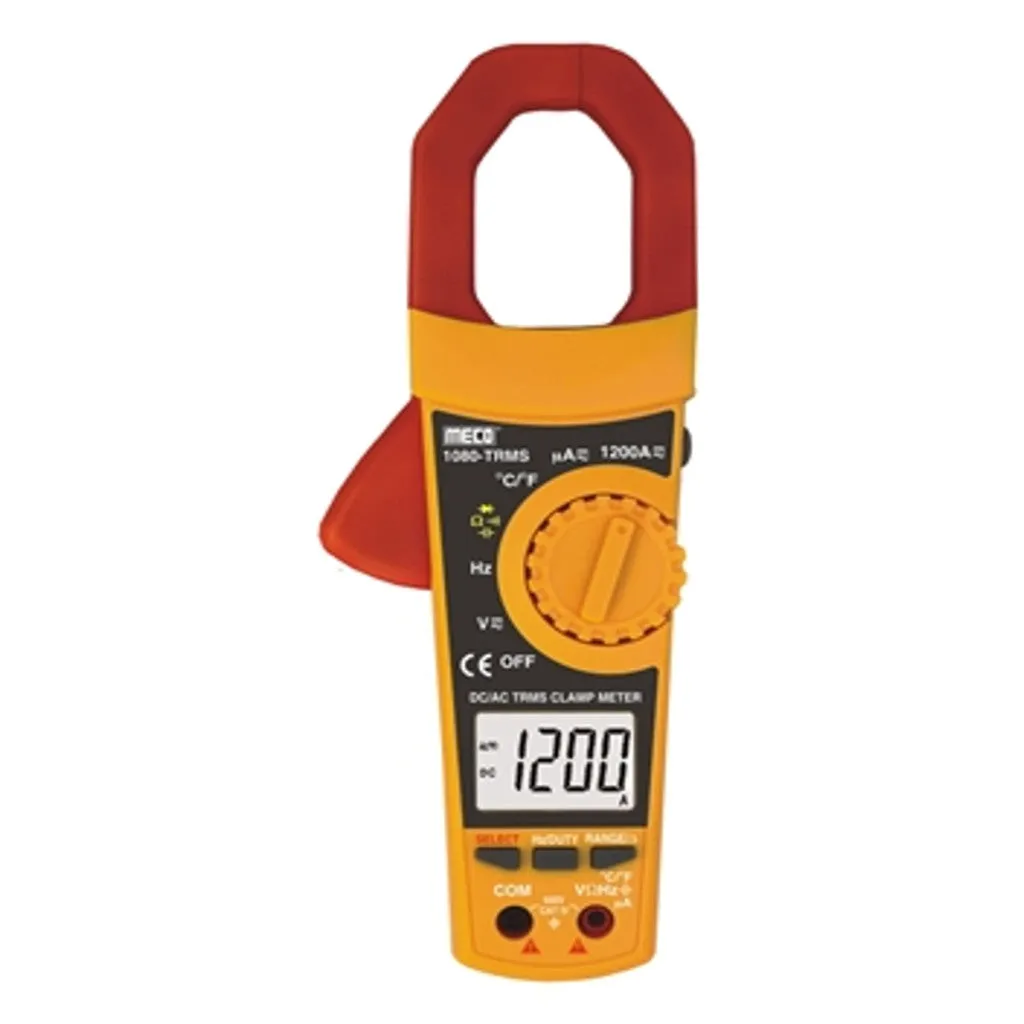

Brand

Meco

Product Model

1080-TRMS

Product Type

Digital Clamp Meter

Dc Voltage

600mV / 6 / 60 / 600 / 1000V

Accuracy

±(0.5%rdg 3dgt)

Ac Voltage

600mV / 6 / 60 / 600 / 750V

Accuracy

±(1.0% rdg 5dgt)

Ac Response

40Hz~1000Hz

Dc Current

600 / 6000mA / 60 / 600 / 1200A

Accuracy

±(1.2% rdg 10dgt) on 600 / 6000mA

±(2.0% rdg 30dgt) on 60 / 600 / 1200A

Overload

1200A DC Max. for 1min. for A

Trms Ac Current

600 / 6000μA / 60 / 600 / 1200A

Accuracy

±(2.0% rdg 30dgt) on all Ranges

Ac Response

40 Hz~1000Hz

Overload

1200A AC Max. for 1min. for A

Resistance

600V / 6 / 60 / 600kV / 6 / 60MV

Accuracy

±(0.8% rdg 5dgt) on 600V

±(0.8% rdg 3dgt) on 6 / 60 / 600kV / 6MV

±(1.0% rdg 25dgt) on 60MV

Capacitance

9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9μF / 9.999mF

Accuracy

±(3.5% rdg 60dgt) on all ranges except

±(5.0% rdg 10dgt) on 999.9μF & 9.999mF

Frequency

99.99Hz~10.00MHz

Accuracy

±(0.01% rdg 3dgt)

Duty Cycle

0.1%~99.9%

Accuracy

±(0.01% rdg 3dgt)

Temperature

-20°C~1000°C / 0°F~1832°F

Accuracy

±(1% rdg 5dgt) on - 20°C~400°C

±(1.5% rdg 15dgt) on 400°C~1000°C

±(0.75% rdg 5 dgt) on 0°F~750°F

±(1.5% rdg 15 dgt) on 750°F~1832°F

µa Measurement For Hvac Flame Sensors

600.0μA / 6000μA

Accuracy

±(1% rdg 20 dgt)

Sp. Function

Diode Test, Audible Continuity, Data Hold

Power

One 9V Battery

Battery Life

200 hours typical

Jaw Opening

30mm

Measuring Catagory

CAT IV 600V

Accessories

Supplied with Pair of Test Leads, Battery, K Type Thermocouple (upto 260°C), Inst. Manual & Carrying Case

Dimensions

238 x 90 x 48mm (approx.)
