Features:

• Power: 60W-600W
• Current: 0-2A-0-20A
• Voltage: 0-500V-0-500V

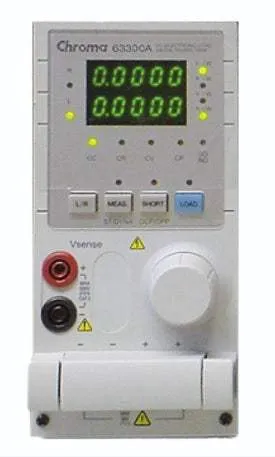

The Chroma Model 6330A series high speed DC electronic load improves CPU clock, baud rate, parser and added synchronic parallel function for fast operation. Each load is isolated and floating, programmable in dual current range and measuring voltage range, and capable of synchronizing with other modules for control operating. Plugging the user selectable load modules into the Chroma 6332A/6334A system mainframes provide easy system configuration. With Synchronic parallel control capability, users can parallel and synchronize more than one load together from an internal loading control signal.

Real time measurement of voltage, current, is integrated into each Chroma 63308A load module using a 16-bit precision measurement circuit. The Chroma 63308A load modules have been enhanced for automated testing. Enhancements include synchronized paralleling allowing from transient response testing using parallel load groups and high speed data transfer circuits allowing for global queries of voltage and current. It is also protected against OP, OC, OT, OV, and reverse polarity to guarantee quality and reliability for even the most demanding engineering testing and ATE application.
