Product Details
＋

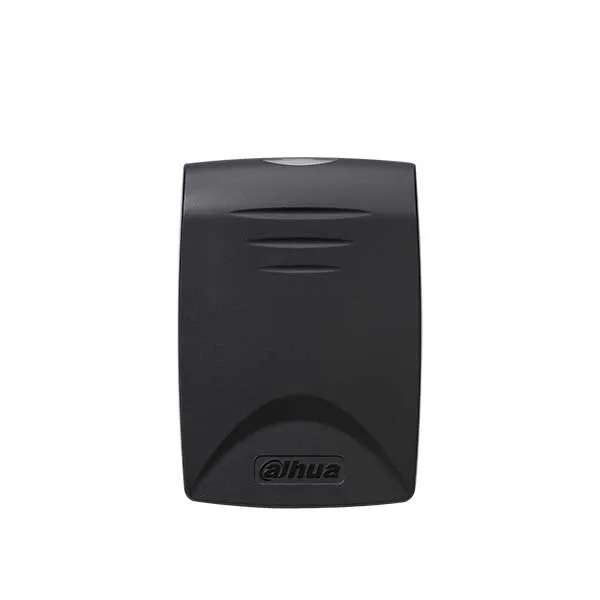

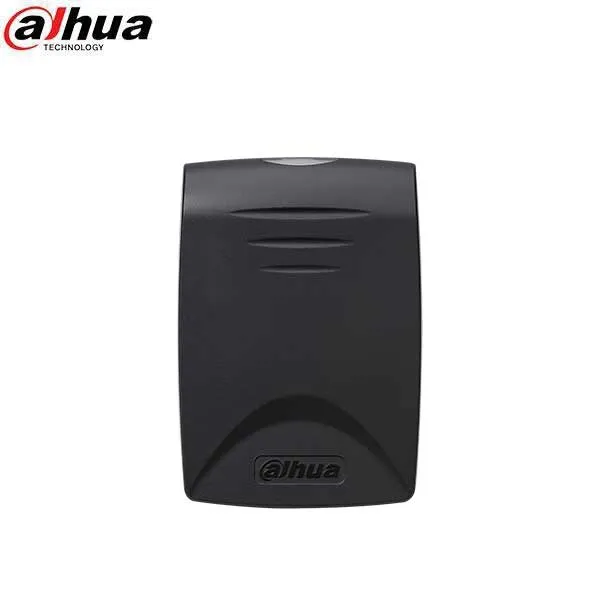

DH-ASR1100B
This is the Dahua Card Reader with water-proofing and 13.56 MHz RFID. it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.
Features
- Wiegand 34 or RS485 Protocol
- MIFARE 13.56 MHz Card
- Waterproof Design
- Built-in Relay to Lock Door
- Watch Dog Function for Tamper Detection
- IP67 Ingress Protection
- Audible and Visual Indicators
- Surface-mount Installation
Specifications
| System | |
| Main Processor | 8-bit |
| LCD Display | Blue Backlight |
| Audible Indicator | Buzzer |
| Reader | |
| Format | 13.56 MHz MIFARE |
| Distance | 2.36 in. to 3.15 in. maximum |
| Response Time | < 0.1 s |
| Interface | |
| To Controller | Wiegand 34, RS485 |
| Electrical | |
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Construction | |
| Color | Black |
| Dimensions | 2.83 in. x 4.02 in. x 0.71 in. |
| Ingress Protection | IP67, water-resistant |
| Certifications | EN UL FCC CAN/CSA |
