Additional Features:

• Testing to 5 kV (1550C) or 10 kV (1555)
• CAT III 1000 V, CAT IV 600 V safety rating
• Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps above 1000 V
• Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
• Long battery life gives the user over 750 tests between charges
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Large digital/analog LCD for easy viewing
• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• Resistance measurements up to 2TΩ
• Timer settings up to 99 minutes for timed tests
• 3-year warranty

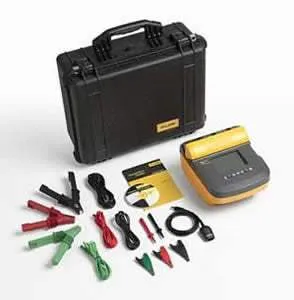

Included Accessories:

• Test Cables with Alligator Clips (red, black, green)
• Infrared adapter with interface cable
• FlukeView Forms Basic CD-ROM
• AC Power Cord
• English Manual
• Users Manual on CD-ROM
• Quick Reference Card
• Software License Agreement
• Registration Card
• FlukeView Forms Installation Guide
• USB-IR Cable Installation Guide
• IP67 Hard Case
• Certificate of Calibration
• Ruggedized Alligator Clips

The Fluke 1555/KIT insulation resistance testers, offer digital insulation testing up to 10kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 and 1550C are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
