Product Details
＋

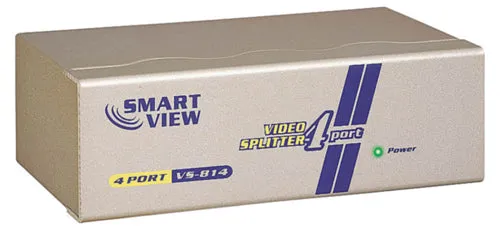

This VGA splitter enables you to display one VGA source on four VGA displays simultaneously. It is typically used to split a PC's VGA video output to four VGA monitors or projectors.
| Physical Characteristics | |
|---|---|
| Color | Silver |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 70℃ |
| Power | |
| Input Voltage | 125V |
| Power Supply | 5V DC@2A |
| Power Consumption | 5W (Max) |
| Connector(s) | |

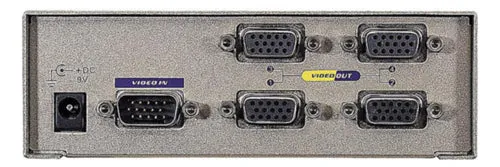

| Input | 1 x HD15 Male Input |
| Output | 4 x HD15 Female Output |
| Performance | |
| VGA Resolution | 1920x1440 |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1 lbs [0.5kg] |
| Package Weight | 1.5 lbs [0.7kg] |
| Contents | |
| Included in Package | 1 VGA splitter |
| 1 AC to DC 7.5V 800mA power adapter | |
| 1 User Manual | |
