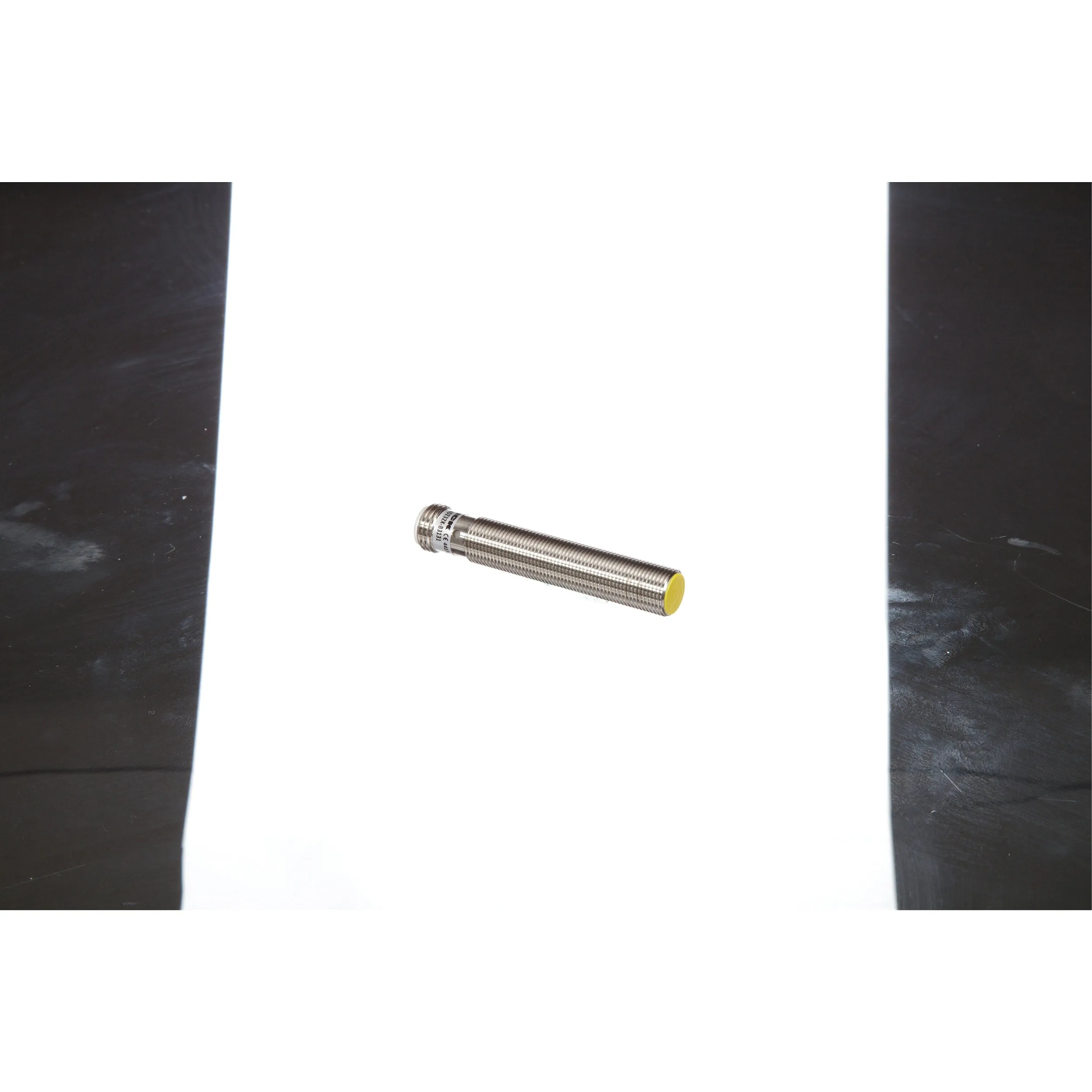

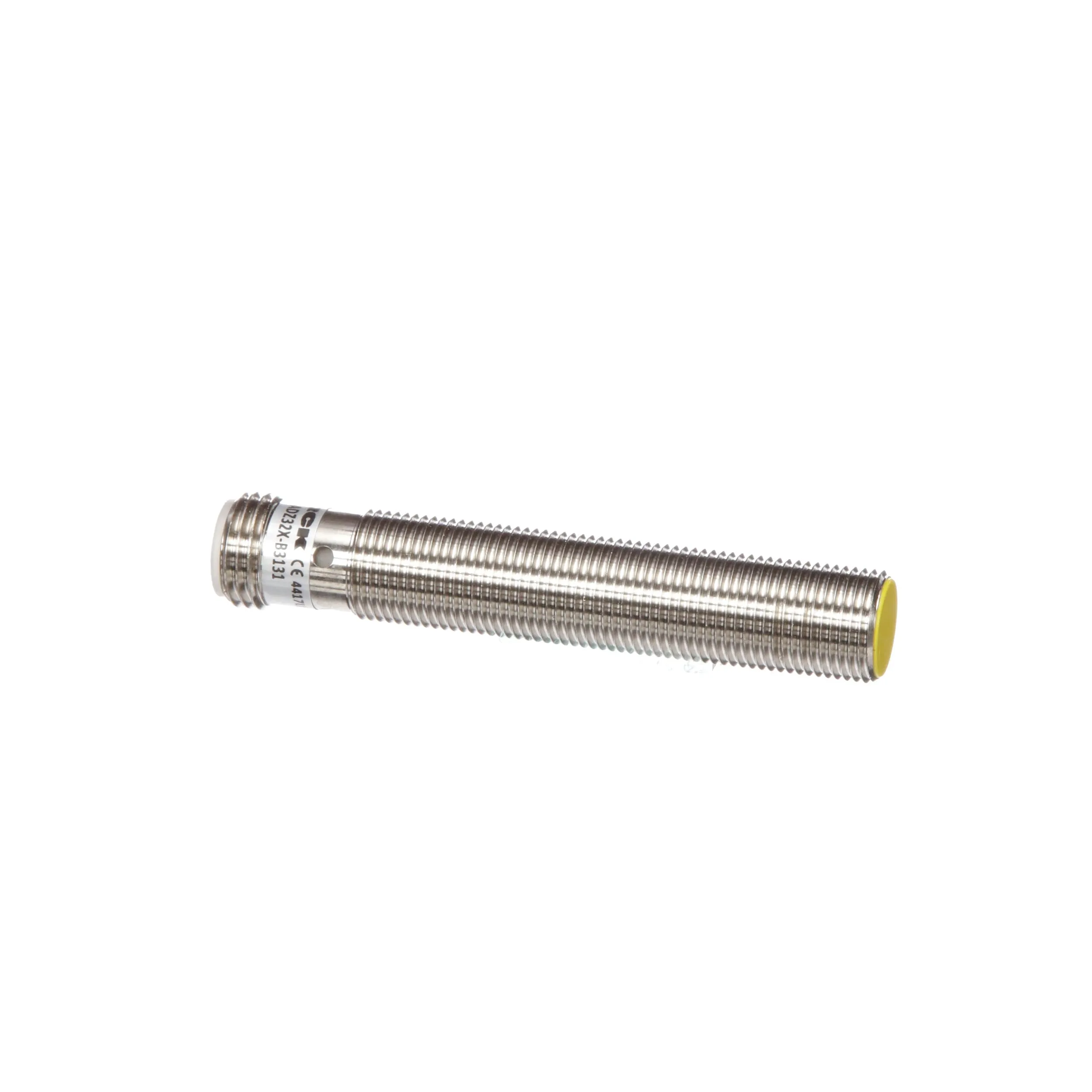

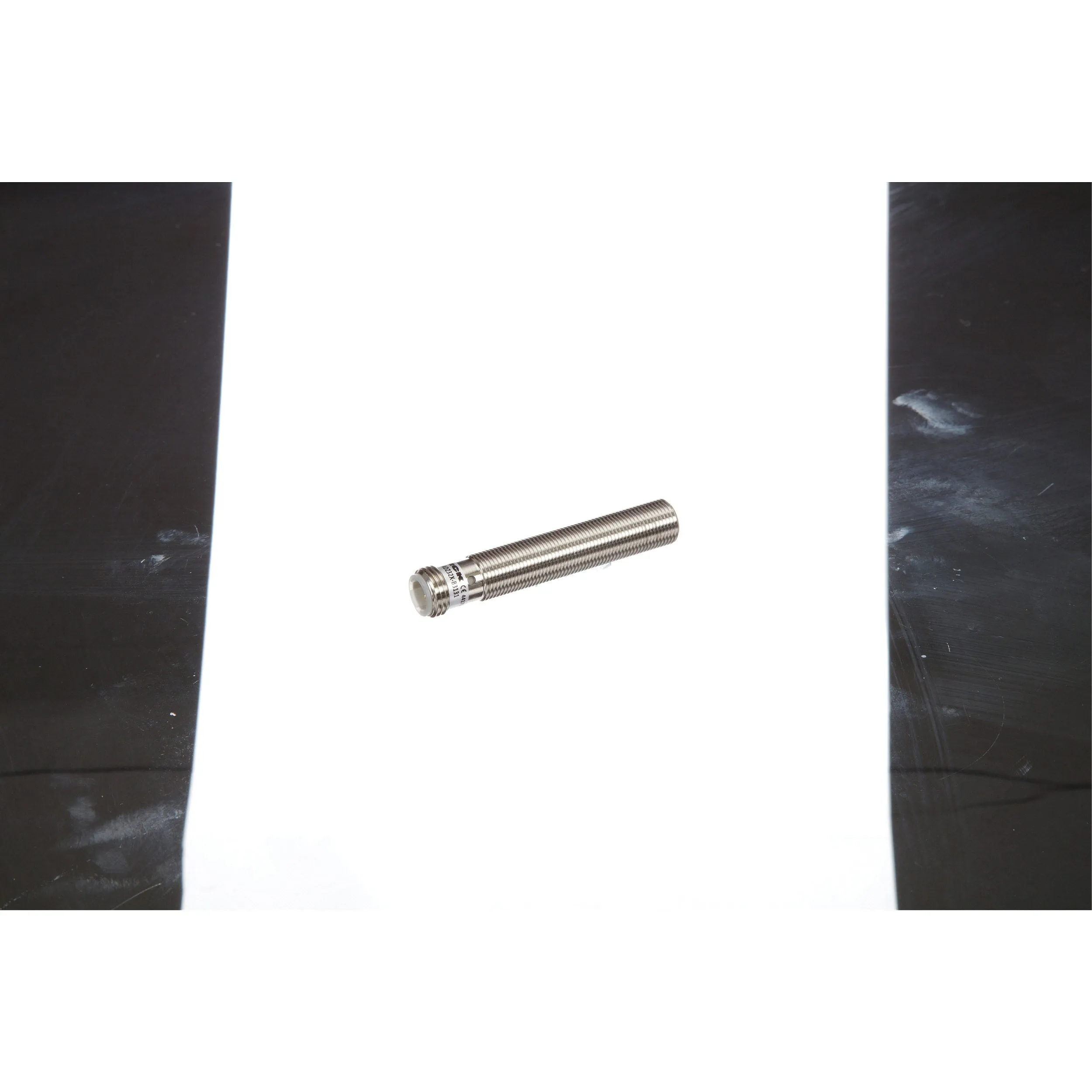

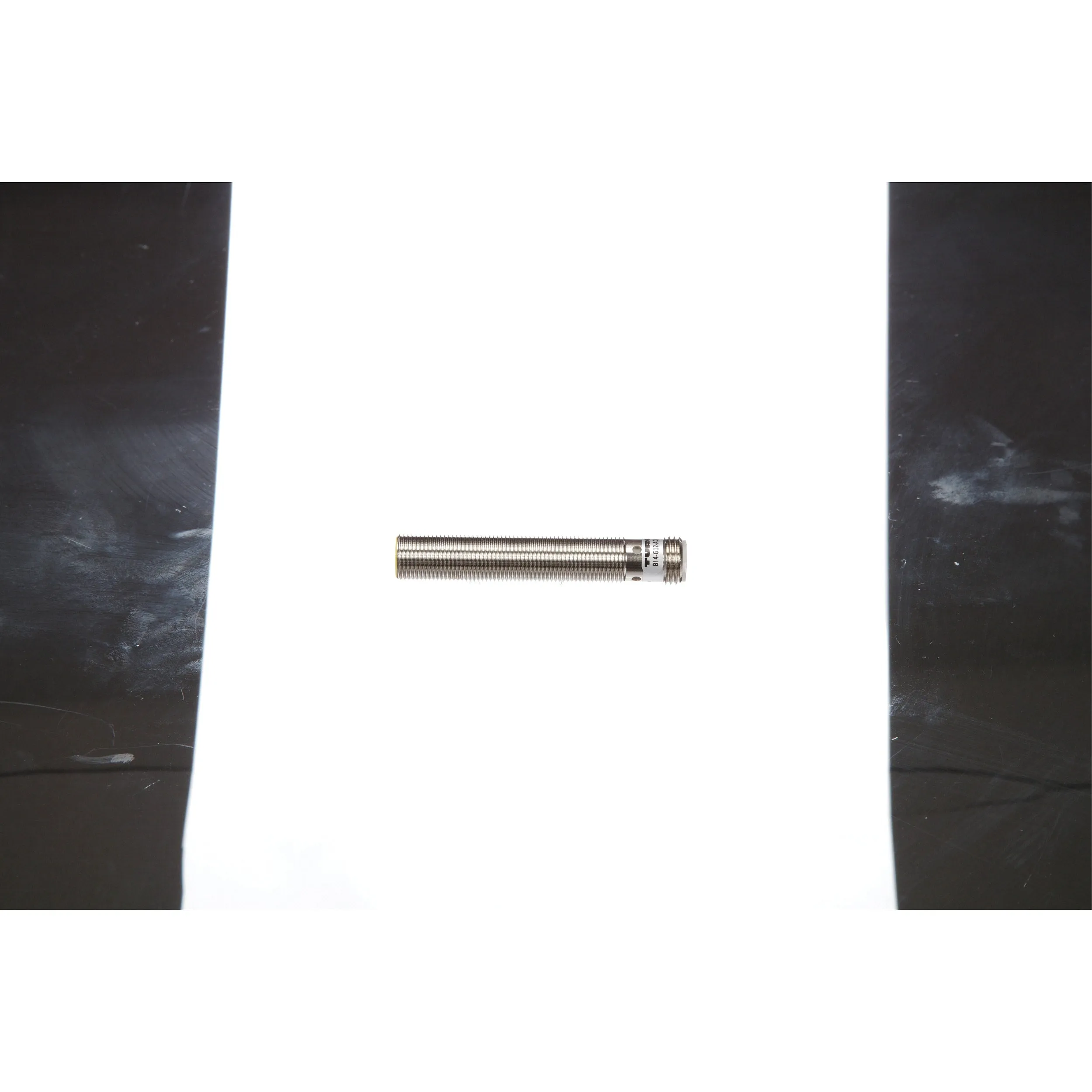

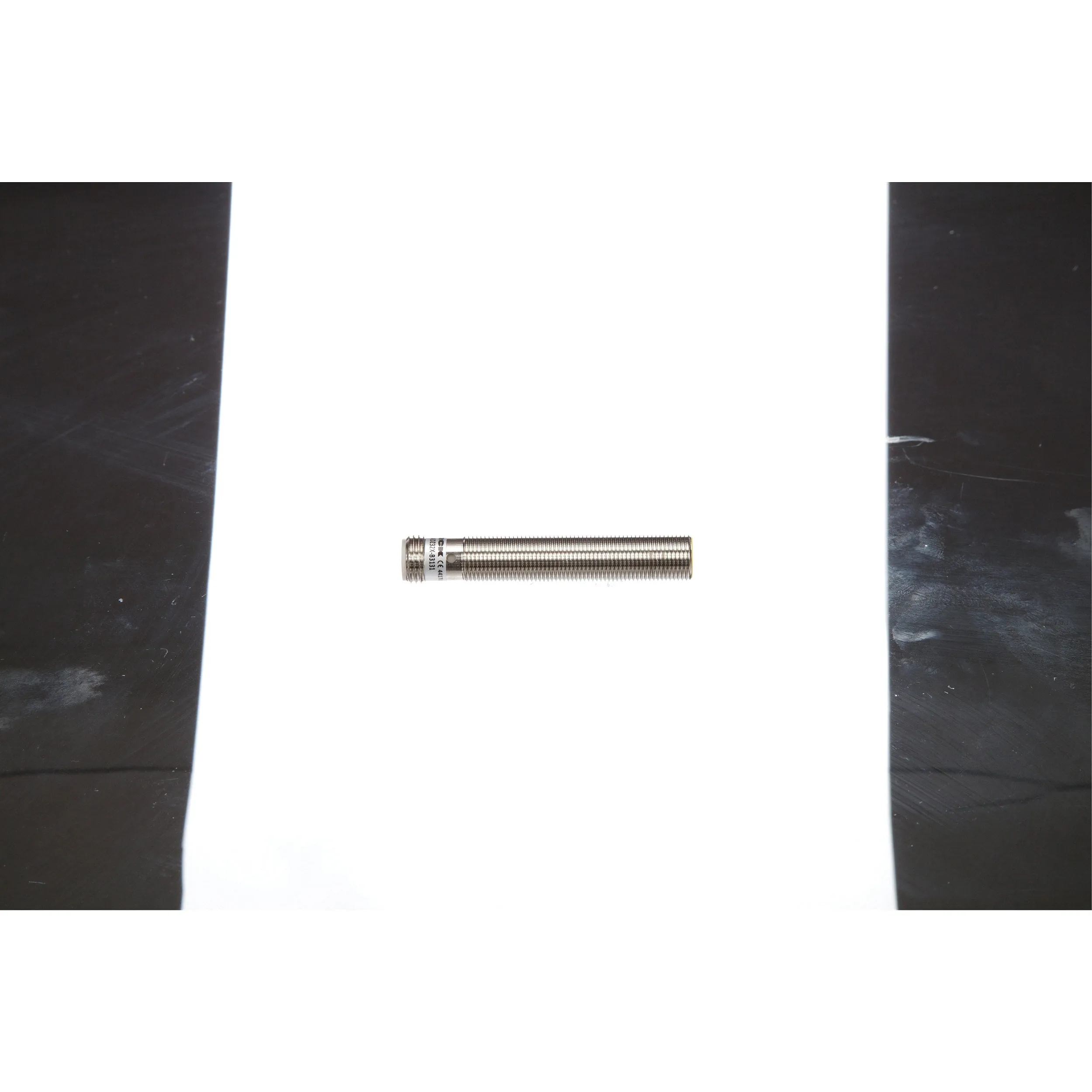

TURCK BI4-G12-ADZ32X-B3131
TURCK BI4-G12-ADZ32X-B3131
  • TURCK BI4-G12-ADZ32X-B3131
  • TURCK BI4-G12-ADZ32X-B3131
  • TURCK BI4-G12-ADZ32X-B3131
  • TURCK BI4-G12-ADZ32X-B3131
  • TURCK BI4-G12-ADZ32X-B3131
Product Details ＋
Product Attribute Attribute Value
Alternate Mfr Part Number T4205031
Body Style Cylindrical
Current Consumption 100 mA (Max.)
Current, Switching 100 mA
Dimensions 2.795" L
Frequency, Switching 0.06 kHz
Housing Material Brass
IP Rating IP67
Maximum Operating Temperature 70 C
Measurement Range 4 mm
Minimum Operating Temperature -25 C
Mounting Type M12 Threaded
Operating Temperature, Maximum 70 C
Operating Temperature, Minimum -25 C
Output NO
Primary Type Inductive Proximity Sensors
Series
Supply Voltage 20-250 VAC ; 10-300 VDC
Termination M12, 2 Pin

Overview

Features:

  • Choice of Barrel with Potted-In or 1⁄2-20 (microfast) Quick-Disconnect
  • Short-Circuit and Overload Protected
  • LEDs Indicate: Output Energized, Short-Circuit and Power-ON (For M12 Only Output Energized)
  • Normally Open Output Specifications:
  • Environment Rating: NEMA 1, 3, 4, 6, 13; IP67
  • Operating Temperature: –13°F to 158°F
  • Voltage Drop: 6.0 VDC at Full Rated Current
  • Max. Leakage Current: 1.7 mA
    • TURCK BI4-G12-ADZ32X-B3131
    • DefaultTitle

    $ 63.28

    $ 48.68

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
