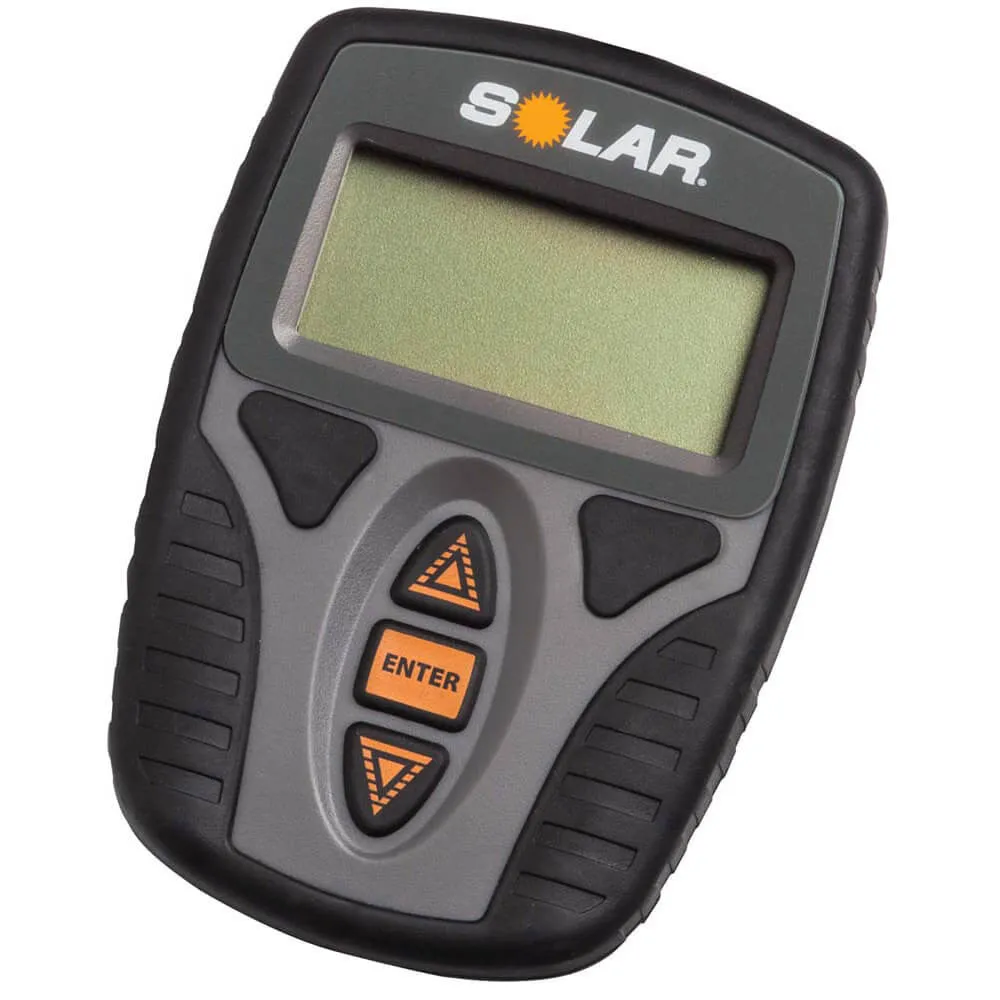

Solar BA9 40-1200 CCA 12 Volt Digital Battery & System Tester
The BA9 Battery and System Tester features an operating range of 4.5-16V and is optimized to test six distinct battery types: Conventional Flooded Acid, AGM Flat Plate, AGM Spiral Wound, Start-Stop AGM, Start-Stop Enhanced Flooded and Gel Cell batteries. It also features the convenience of starting and charging system testing, offering quick assessment and providing both a numerical result and a pass/fail result. The BA9 has a testing range of 40-1200 CCA, covering everything from powersport to Group 31 batteries. It features an LCD display that offers a high level of detail throughout the testing process and improved viewing in bright sunlight. It also features reverse polarity protection to avoid damage from reverse hookups and over-voltage protection when attached to a system with voltage exceeding 15V.
Features:
- 4.5-16V operating range
- 40-1200 CCA testing capacity
- Tests multiple battery types
- Tests to CCA, CA, DIN, EN, IEC standards
- Bright LCD display
- Small, portable, pocket-sized
- Reverse polarity and over-voltage protection
- 1 year limited warranty
Specifications:
- Applicable Battery Voltages | 12 Volt
- Applicable System Voltage | 12 Volt
- Operating Voltage Range | 4.5-16V
- Battery Types Tested | Flooded, AGM Flat Plate, AGM Spiral, Gel Cell, Start-Stop AGM, Start-Stop Enhanced Flooded
- Testing Capacity | 40-1200
- Rating Systems | CCA, DIN, IEC, EN, CA(MCA)
- Temperature Compensation | No
- Display Type | LCD
- Cable Length | 21"
- Cable Termination | Clamps
- Reverse Polarity Protection | Yes
- Over-Voltage Protection | Yes
- Warranty | 1 Year Limited
