Additional Features:

• Dual Input
• Power: 250W, 50W
• Voltage: 60V, 60V
• Current: 50A, 5A
• Minimum Voltage: 0.4V at 50A, 0.4V at 5A
• Full front panel control with 150 memory states
• Sequencer: 9 sequences, up to 16 steps each
• SL DC Operating Modes: CC, CR, CP, CV, shorts, dynamic
• SLD Operating Modes: CC, CR, CV, shorts, dynamic
• SL AC Operating Modes: CC, Crest Factor, CR
• Standard GPIB / RS-232 programming
• Analog inputs

Flexible measurement

• 16-bit, 4.5 Digit front panel meters
• 16-bit GPIB, RS-232 readback
• Isolated current monitor output (DC single input models <200V)

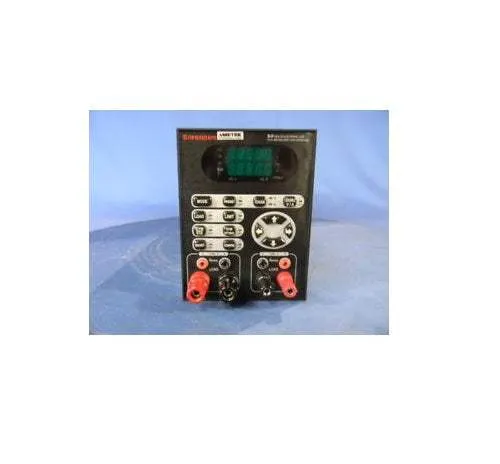

The Sorensen SLD-60-505-255 DC modules are specifically designed for low power, high channel count testing and provide the highest channel density available.
