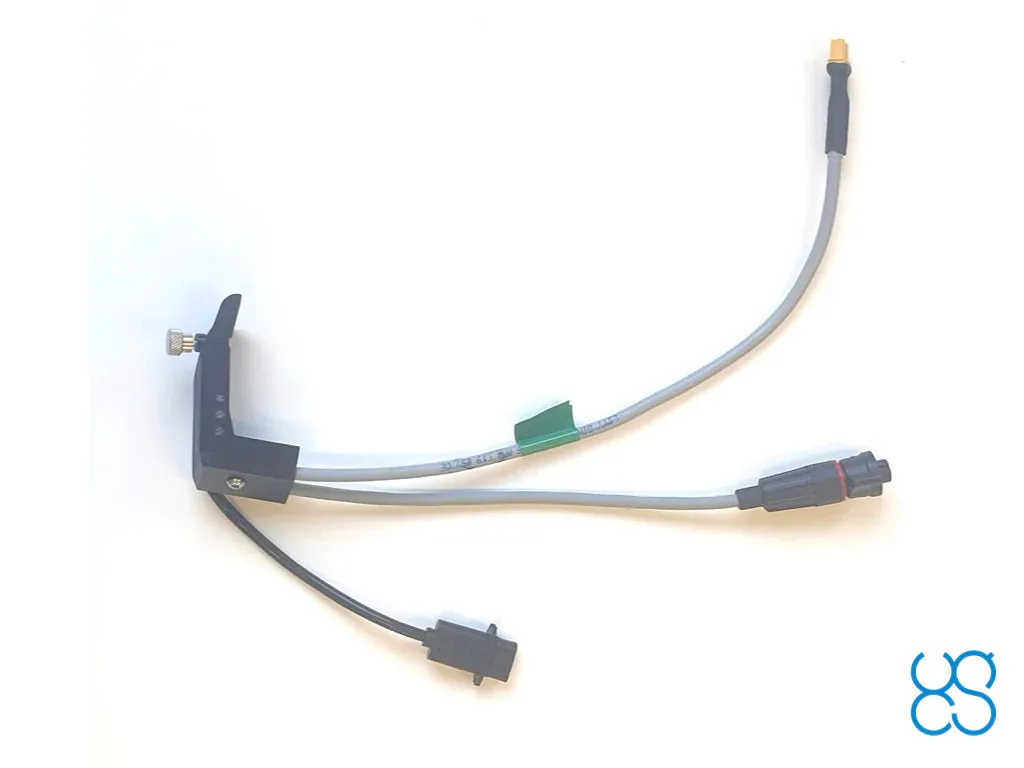

Smart cable assembly to connect  3rd generation to DJI M300/M350 RTK drone.

The cable assembly has 2 connectors for the SkyHub:
- XT30 socket connector (power)
- Switchcraft W16982-7SG-P-518 connector (signal)

For the drone side native DJI SDK Round Ribbon Cable is used.

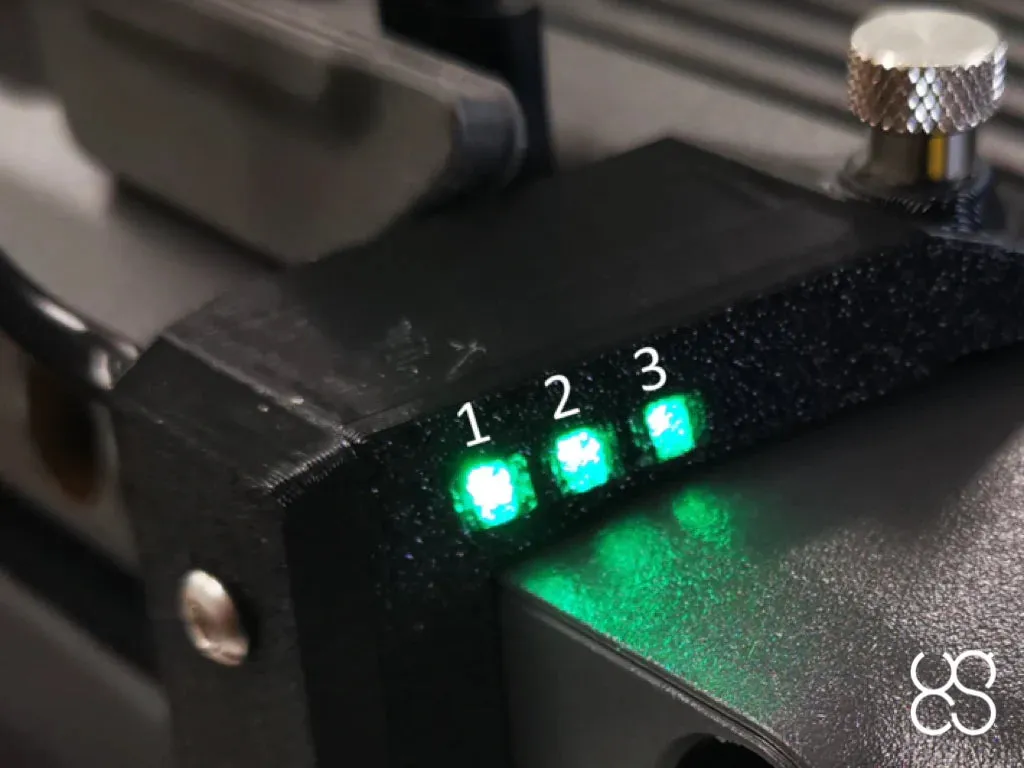

Mounting bracket has built-in LED indicators:

• LED1 lights up when the power is coming from the drone.
• LED2 is blinking when there is a communication from the drone.
• LED3 is blinking when there is a communication from SkyHub.
• LED2 lights up fully when the connection is established.
