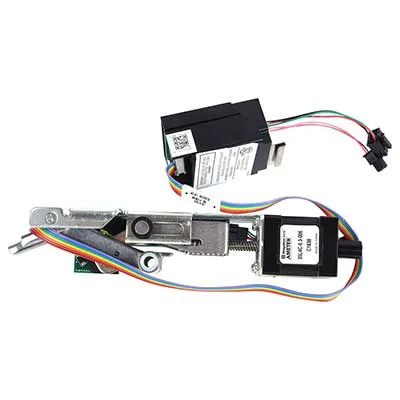

Sargent M56A-F Electric Latch Retraction Motor Kit Part, F-Rails 33-36" Device (MFG After 2006), Exit Device Field Install Kit

• Motor driven electric‚ retraction for smooth‚ precise operation.
• Retrofits‚ standard mechanical rail.‚
• M56AF - for doors 33-36"
• Retrofit Kits‚ can only be added to‚ 80 Series exit devices‚ manufactured after 2006
  & P series exit device. not available on FM8700 Series exit devices.
• Amount of rail retraction is automatically controlled by the 56-‚ circuitry; System actively monitors its position and adjusts itself
• Digital retraction timer (0-20 seconds; factory setting is 5 seconds.
• Can be used for continuous and intermittent use.
• Power Requirements: 24VDC regulated/filtered power supply.
• Current draw: .6A during retraction and .25A maintained in‚ dogged‚ hold position.
• Requires 1A at 24VDC regulated/filtered power supply.

‚

Technical Specs
