Product Description

• Insulation Resistance Measurement Up To 3G Ohm

• Insulation resistance measurement up to 3G Ohm with Test voltages selection: 50 V, 100V, 250V, 500V and 1000V

• Route Mean Square Value With Distorted Wave Form

• Measuring principal employed permits the measurement of rout mean square value (TRMS) OF AC quantities and mixed quantities (AC and DC) regardless of wave form

• Ac Current Measurement With Clip-On Sensor

• Current measurement up to 300A with clip-on sensor having ratio 1mV/10mA

• Min/Max Function

• By pressing min/max button instrument will start recording minimum and maximum readings

• Temperature measurement

• Temperatures from -200 to 800 ºC using pt100 and pt 1000 sensors

• Auto Power Off

• In order to save the power of the Batteries, the meter will automatically shut OFF if it detects no activity for 10 minutes

• Continuity Test

• This permits resting for short circuit and open circuit. In addition to the display, a facility of sound signal is available

• Auto And Manual Ranging Modes

• In AUTO ranging mode the instrument automatically selects the range with best resolution depending on the applied input

• In MANUAL ranging mode range is user selectable using MAN key

• Indication Of Negative Values On The Analog Scale

• When measuring DC quantities, also negative values are shown on the analog scale so that variations of the measured value can be observed at the Zero point

• Protection From Dust And Water

• Instrument: Ip50 For terminals : IP20 as per IEC60529

• Applicable International Safety Standards

• 1000 V CAT II/600V CAT III as per International Safety standard IEC 61010-1- 2001 and IEC 61557

• Signaling In The Case Of A Blown Fuse

• The display shows “FUSE” in case of blown fuse

• Automatic Blocking Socket (abs)

• The automatic terminal blocking system prevents incorrect connection of test lead and incorrect selection of measurement quantity, which provide safety to the user

• Interface And Software Rish Com 100

• The multimeters are fitted with a serial RS-232 C interface via which the measured values can be transmitted to a PC

• These values, electrically isolated, are transmitted to the attachable interface adaptor with infrared light through the case

• Analog Scale

• Analog scale that updates at the rate 20 times/sec to observe fluctuations in input

• Continuous On Mode

• In this mode, AUTO POWER OFF is disabled

• DATA Hold Function

• By pressing DATA HOLD button, reading on the display can be latched for Hands free operation

• NULL ZERO Correction for Resistance

• For Low ohm measurement, the lead resistance can be compensated by pressing the shift key (Yellow Key)

• For nF range, stray capacitance can be compensated by shift key (Yellow Key)

• Diode Measurement

• For testing diode and transistors, diode measurement function is available

• Display With Backlit

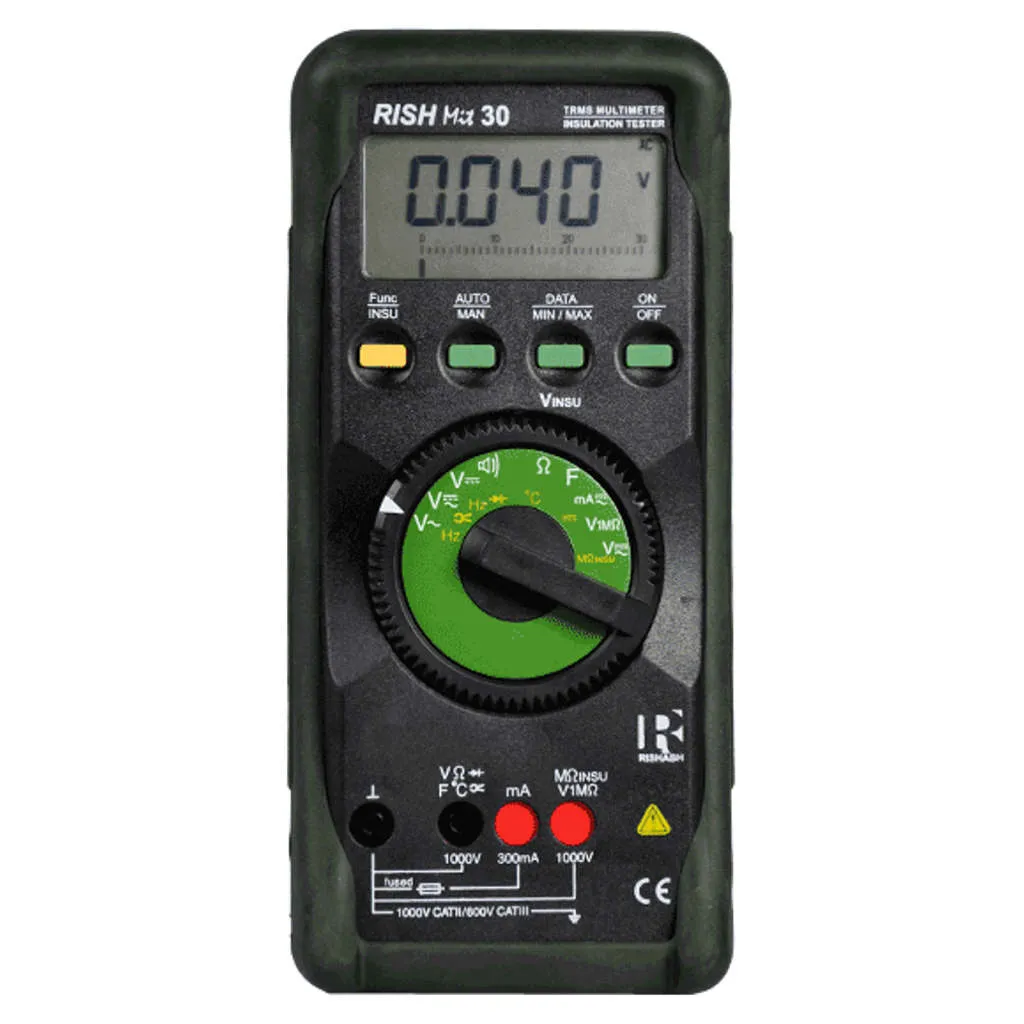

• For clear visibility in dark conditions, RISH MIT 30 is featured with backlit
