Product Description
-

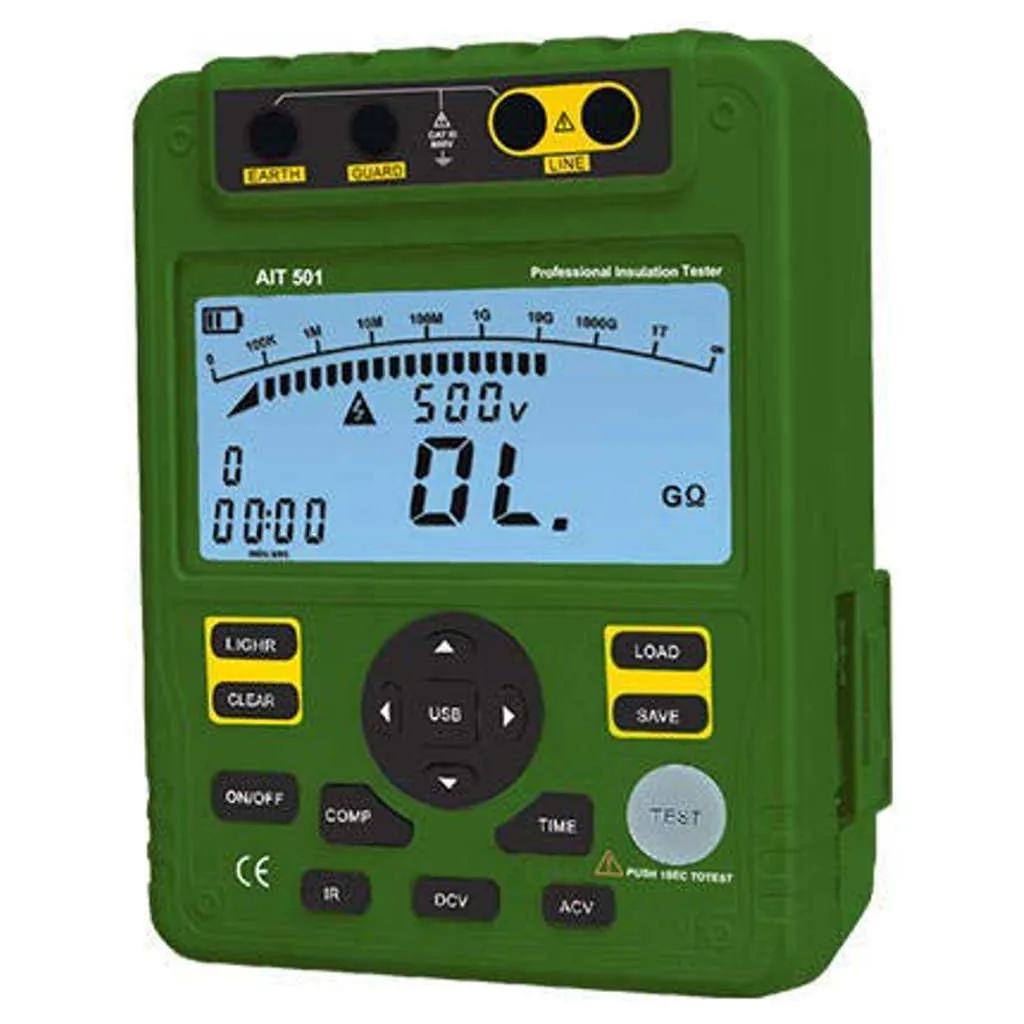

The Agam AIT 501 is the compact insulation resistance tester with diagnostic features like PI, DAR
-
When carrying out insulation resistance measurements this device uses test voltages of 500V, 1000V, 2500V and 5000V
-
At 500V this tester can carry out insulation resistance measurements from 1MOhms to 20GOhms, it carries out this measurement at 5MOhms to 1000GOhms
-
The tester can also be used to carry out AC/DC voltage measurements and low resistance testing
-
The AIT 501 is an autoranging device and will automatically choose the applicable range depending on the test
-
It also includes a large, backlit LCD screen, auto power down function when left idle and includes a USB interface for using the tester to download data to PC
-
To accompany USB connectivity the AIT 501 also includes datalogging capabilities
-
When displaying testing results the AIT 501 uses both numerical and analogue bar graph representation of the test results
-
It also allows users to carry out comparisons, polarisation index calculations and dielectric absorption calculations
-
This insulation resistance tester is CAT III 600V, EN 61010-1 and EN 61326-1 compliant
-
An ideal tool for Insulation testing designed smartly
Product Specification
|
Brand |
Rishabh |
|
Product Type |
Digital Insulation Tester |
|
Product Model |
AIT 501 |
|
Display Type |
Analog |
|
Test Voltages |
500V, 1000V, 2500V, 5000V |
|
Test Voltage Accuracy |
0% to 20% |
|
500v Range (accuracy) |
1MOhm to 20GOhm (± 3% 5) |
|
1000v Range (accuracy) |
2MOhm to 40GOhm (± 3% 5) |
|
2500v Range (accuracy) |
5MOhm to 100GOhm (± 3% 5) |
|
5000v Range (accuracy) |
10MOhm to 1000GOhm (± 3% 5) |
|
Short Circuit Current |
1.8 mA |
|
Ac/ Dc Voltage |
600V |
|
Low Resistance |
0.1Ohm to 999.9Ohm |
|
Power |
1.5V Alkaline Batteries (LR6) x 8 |
|
Operating Temperature |
-10 to 40 °C |
|
Storage Temperature |
-20 to 60° C |
|
Lcd Size |
123mm x 58mm |
|
Dimensions (h X W X L) |
202 x 155 x 94 mm |
|
Net Weight |
Approx. 2kg (including battery) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
