Specifications

• Number of Banks: 2
• Number of Channels: 4
• Switch Bandwidth: 2.7 GHz
• Impedence: 50 Ohms
• Max Insertion Loss: -1.35 dB
• Voltage AC: 30 Volts
• Max Carry Current AC: 0.5 Amps

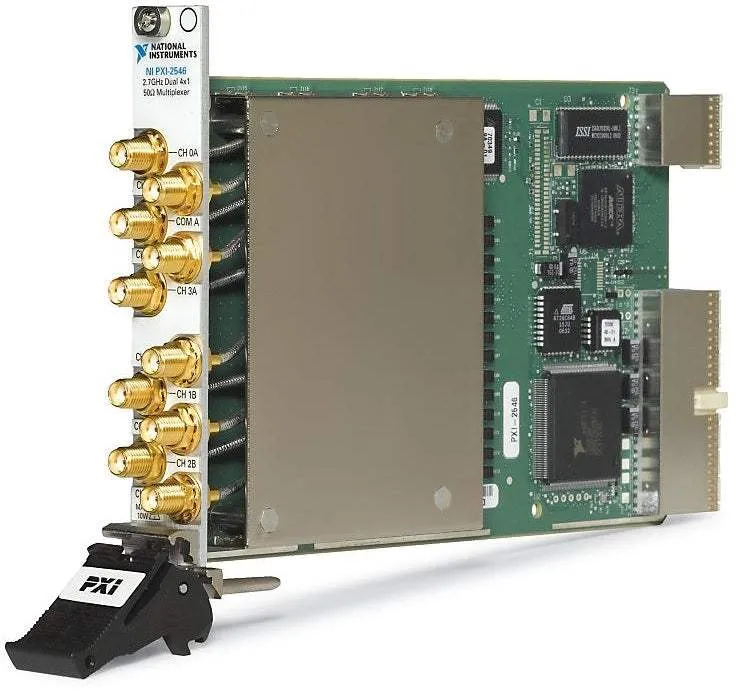

The PXI-2546 is a pxi from National Instruments. The PXI RF Multiplexer Switch Modules are ideal for high-channel-count applications that need to connect measurement or signal generation instruments to various test points on devices or units under test (DUTs or UUTs). PXI RF Multiplexer Switch Modules use a variety of relay types, including electromechanical armature relays, reed relays, field-effect transistor (FET) relays, and solid-state relays, each with their own benefits, allowing you to choose a multiplexer that fits your requirements.
