Features:

• (14) Multiplexer/Matrix Configurations
• Scanning Speed Up To 900 Operations Per Second
• 32000-Step Scan List For Deterministic Scanning
• Fully Software Programmable
• Tight Synchronization With Instruments Through Hardware Triggers

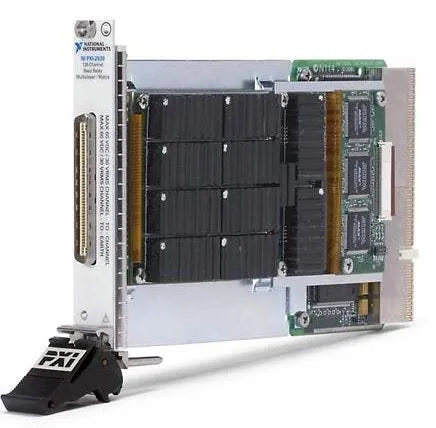

The National Instruments PXI-2530 / SCXI-1130 High-Density Multiconfiguration Multiplexer / Matrix Module is a high-density, multiconfiguration multiplexer/matrix switch. With 14 possible configurations and multiple expansion options, these modules offer an excellent solution for large or complex-channel-count systems. The NI PXI-2530 incorporates reed relays into the PXI platforms for long-life functionality. At up to 10 times the speed of traditional armature relays, the PXI-2530 is an ideal front-end for high-speed measurement devices, such as the NI PXI-4070 61/2-digit FlexDMM.
