Additional Features:

• High-performance 14-slot PXI chassis
• Low-jitter (<5 ps) 10 MHz reference clock
• External 10 MHz reference clock with BNC I/O connectors
• Temperature-controlled fan speed
• Software-programmable trigger routing between bus segments
• Accepts both 3U PXI and 3U CompactPCI modules
• Up to 500 W removable, high-performance power supply with universal AC input

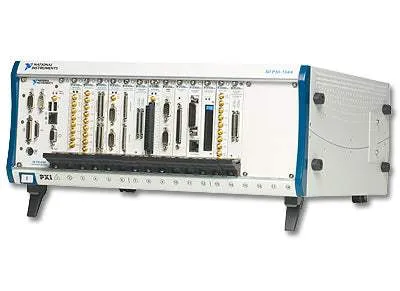

The NI PXI-1044 chassis is a high-performance chassis, featuring 500 W of total power for a wide range of test and measurement applications. The 14-slot PXI chassis accepts both CompactPCI and PXI modules. The PXI-1044 incorporates a high-performance backplane with integrated timing and synchronization features, making it ideal for applications requiring multi-instrument synchronization and automated testing.
