The Triplett Model PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test.
DESCRIPTION
The Triplett Model PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test. You can view results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live. Includes test leads with large color-coded alligator clips and carrying case. No battery is required. CAT III 600V safety category. 1-year warranty.
Also available as Motor and Phase Rotation Tester - PR450
CATEGORY:
Features
- Determines correct phase wiring sequence(L1, L2, L3) for 3-phase system installation

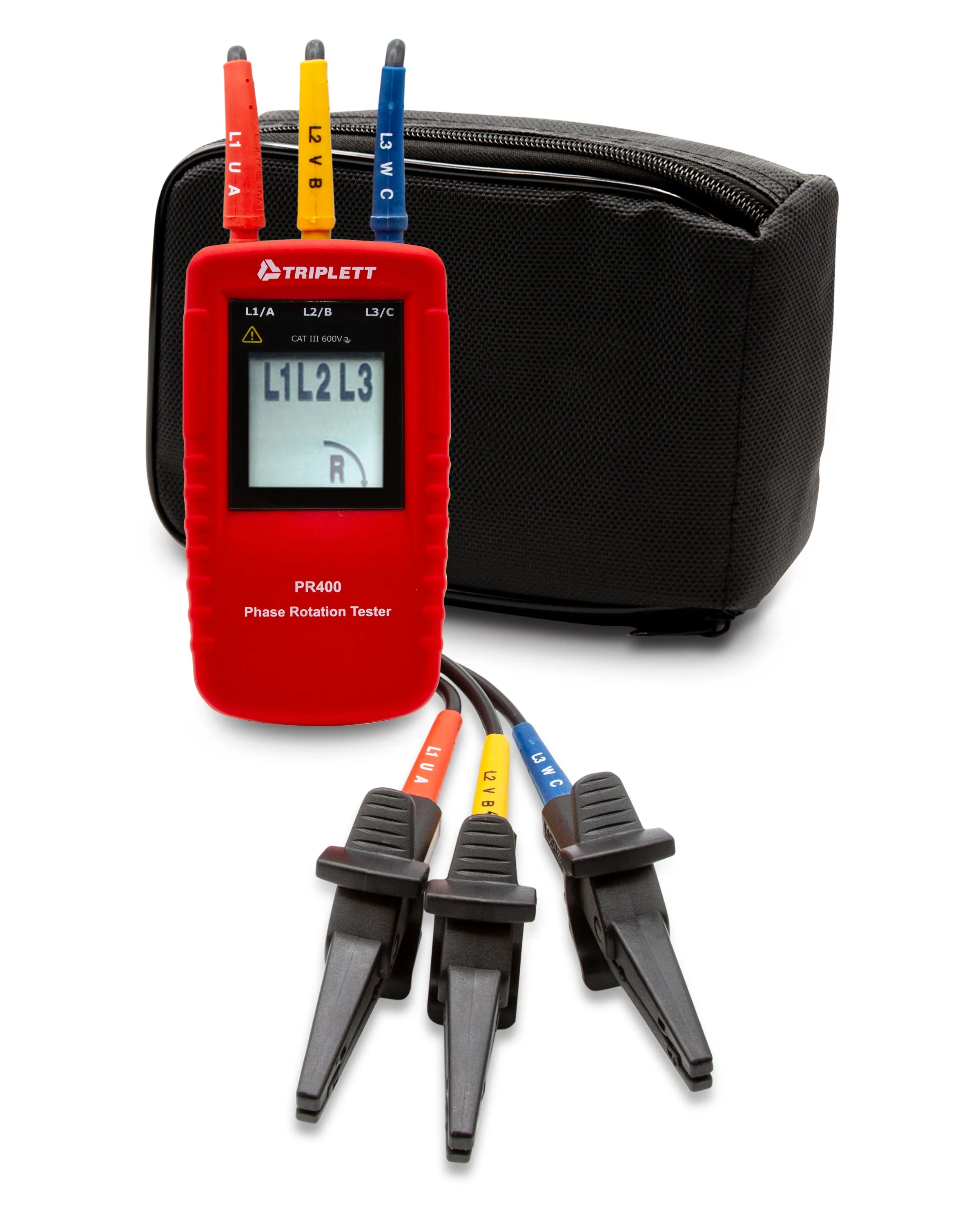

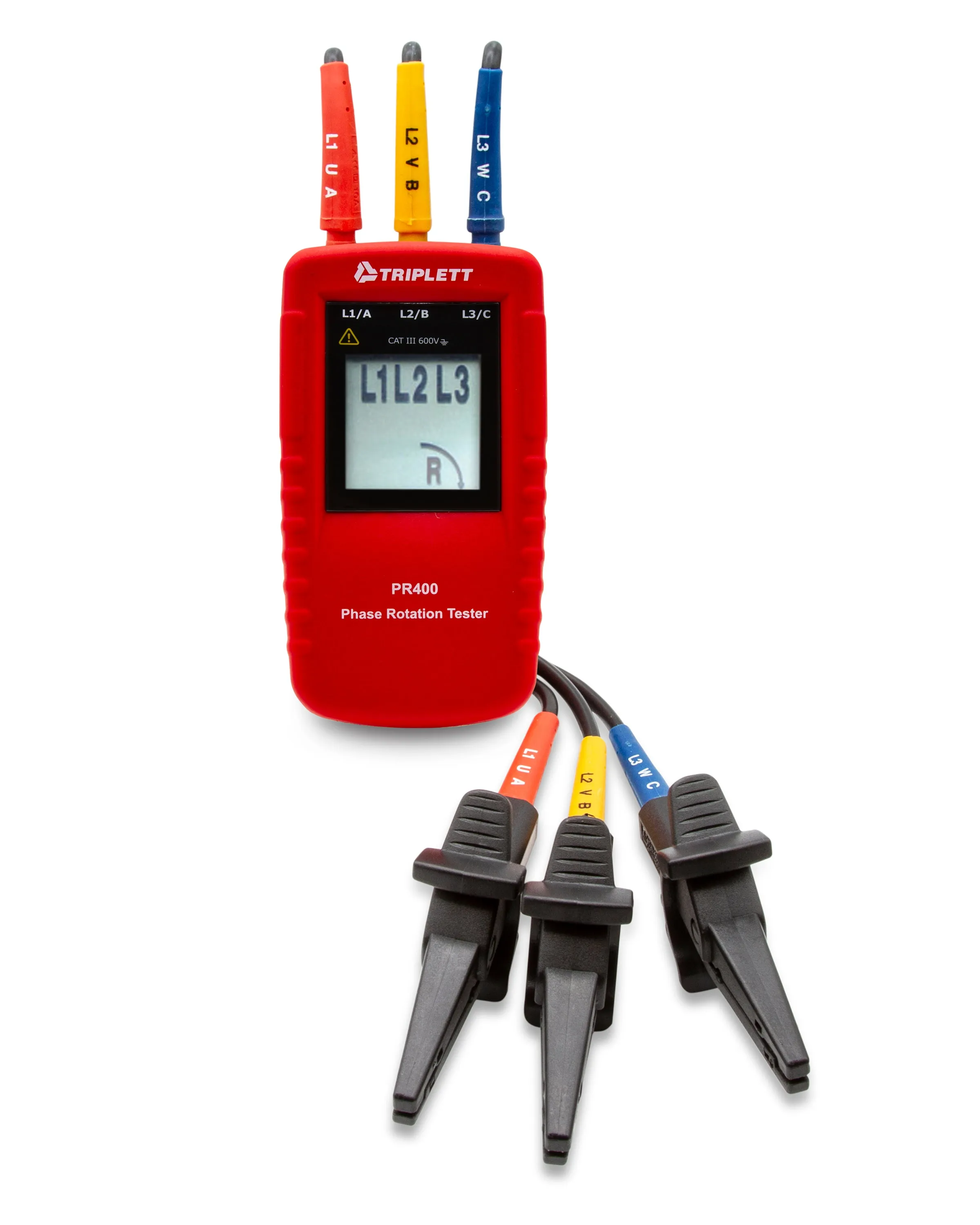

- Complete with color coded test leads with large color-coded alligator clips, and carrying case
- Cat III-600V safety category

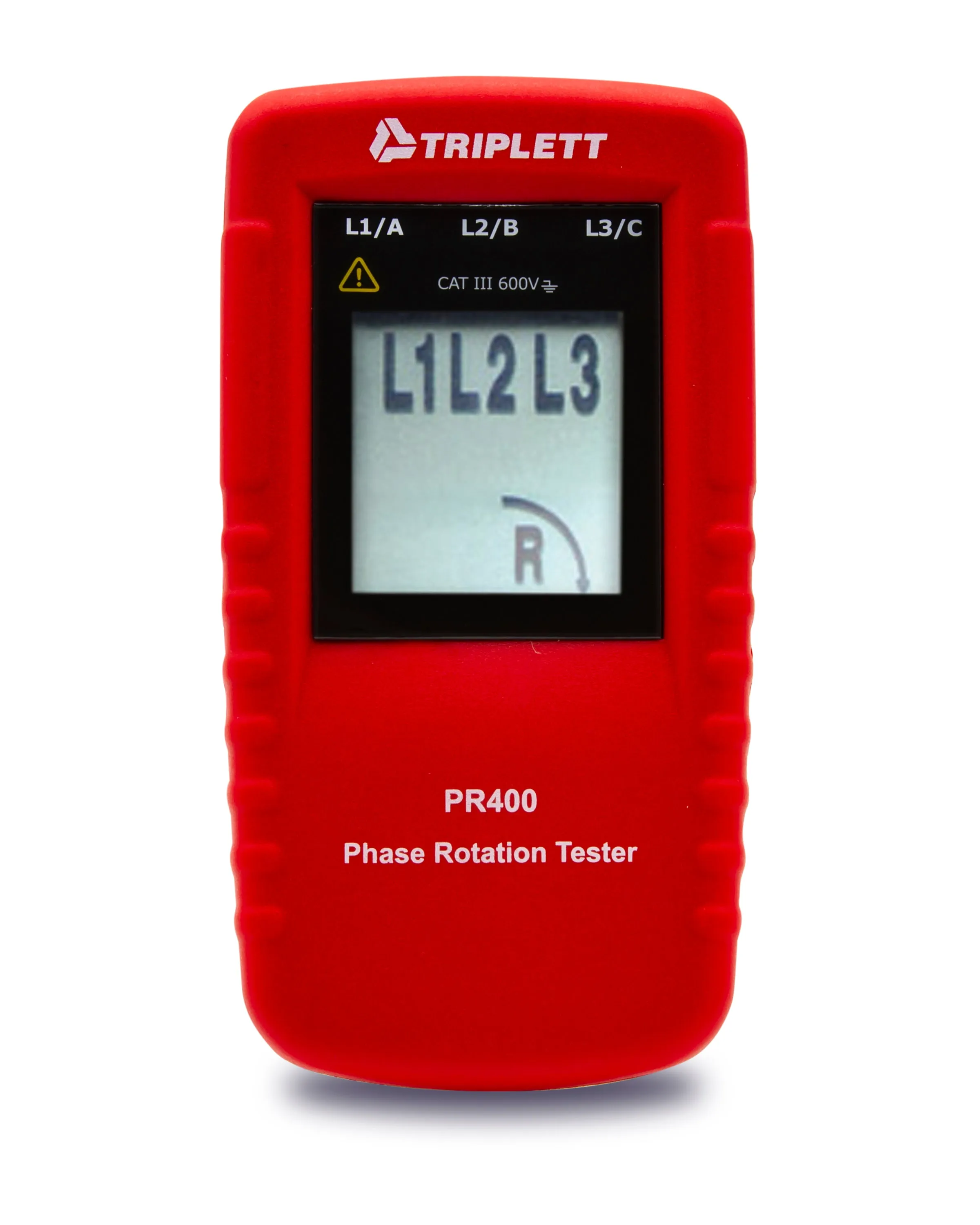

- View results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live
- No battery required
- 1-year warranty
Specifications
| PR400 | |
| Voltage Range | 40 to 600VAC |
| Bandwidth | 15 to 400Hz |
| Safety Category | CAT III 600V |
| Dimensions | 5.1 x 2.7 x 1.3” (130 x 69 x 32mm) |
| Weight | 4.6oz (130g) |
