Name: Non-Contact Phase Rotation Tester - (PR600)
SKU: 1820069

Product Details ＋

DESCRIPTION

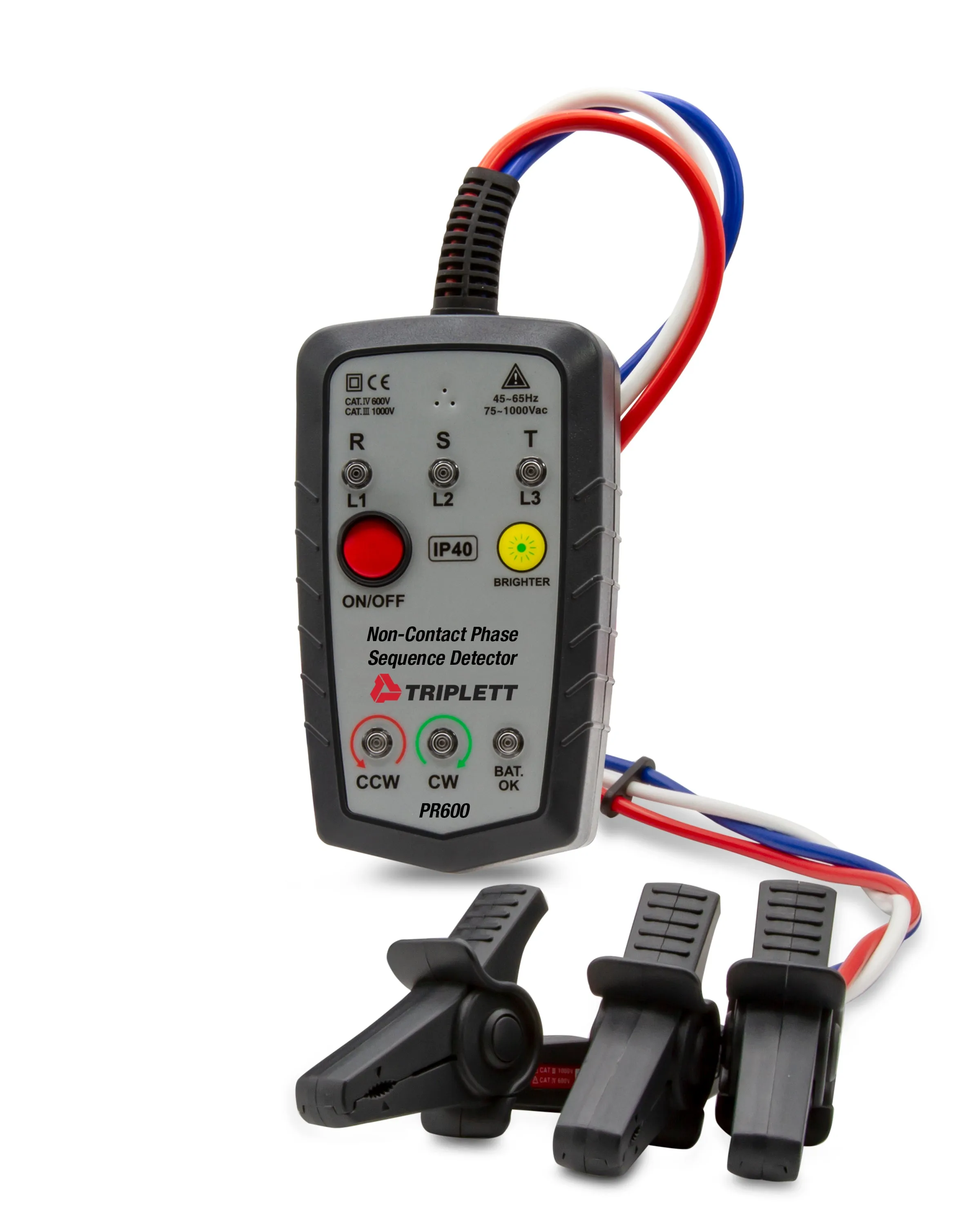

The Triplett Model PR600 Non-Contact Phase Rotation Tester determines the correct phase wiring sequence for 3-phase system installations. You can clip on to insulated wires with a maximum conductor diameter of 1.3" (33mm). View the results on an easy-to-read LED display to see phase direction (clockwise/counterclockwise) and which phases are live. A buzzer sounds to indicate live wire and clockwise (intermittent beep) or counter clockwise (continuous beep) direction. There are 2 selectable brightness levels for use in sunlight or dimly lit areas and a back cover magnet that mounts on to metal surfaces for hands-free operation. Additional features include Auto power off and Low Battery indicator. CAT IV 600V safety category. Includes 59" (1.5m) test leads with large color-coded alligator clips, 9V battery and soft case.

CATEGORY:

Specifications

Clip on to insulated wires with a maximum conductor diameter of 1.3" (33mm)
Determines correct phase wiring sequence for 3-phase system installation
View results on an easy-to-read LED display to see phase direction (clockwise/counterclockwise) and which phases are live
Buzzer sounds to indicate live wire and clockwise (intermittent beep) or counter clockwise (continuous beep) direction
2 selectable brightness levels for use in sunlight or dimly lit areas

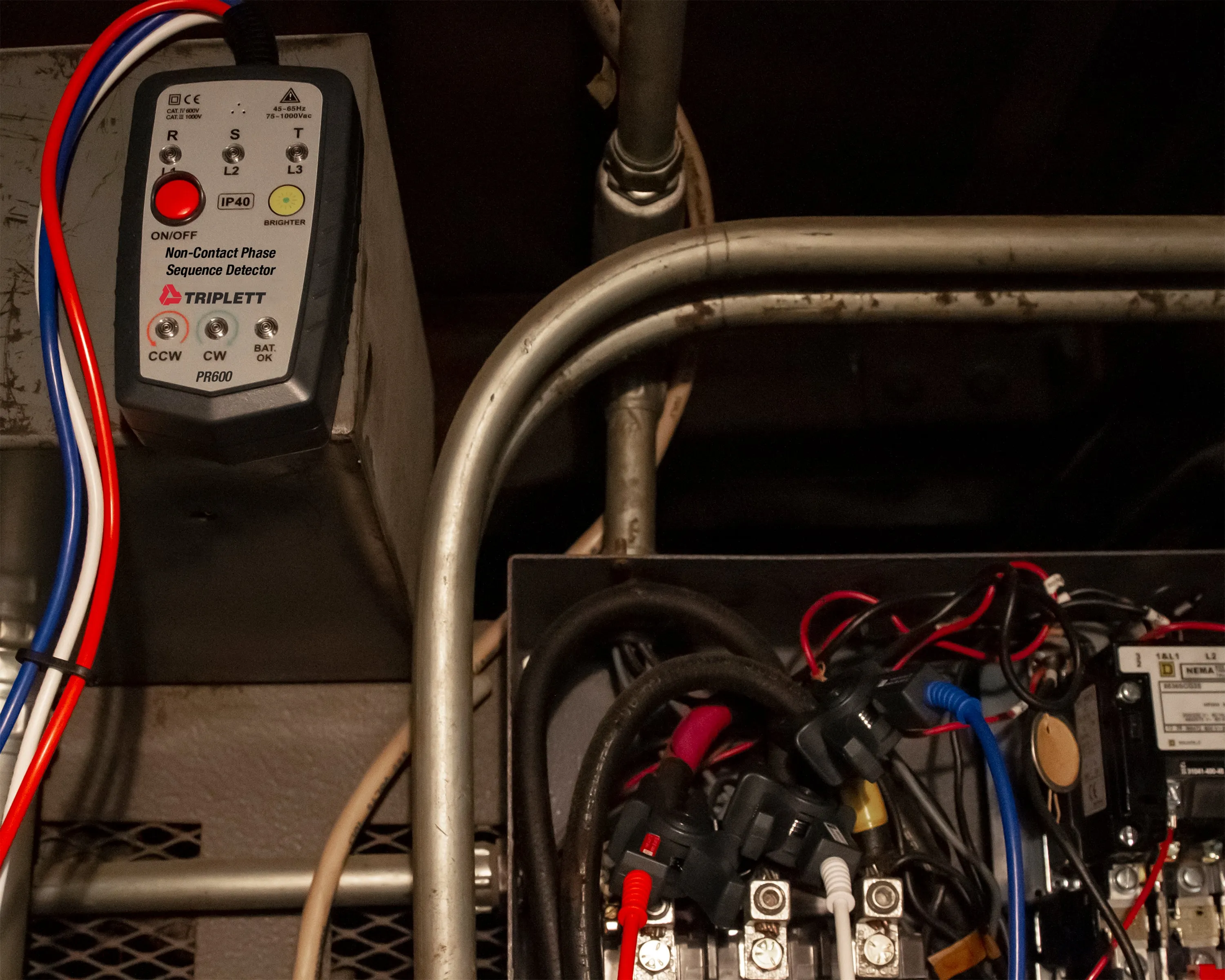

Back cover magnet mounts on metal surfaces for hands-free operation
Auto power off
Low Battery indicator
CAT IV 600V safety category

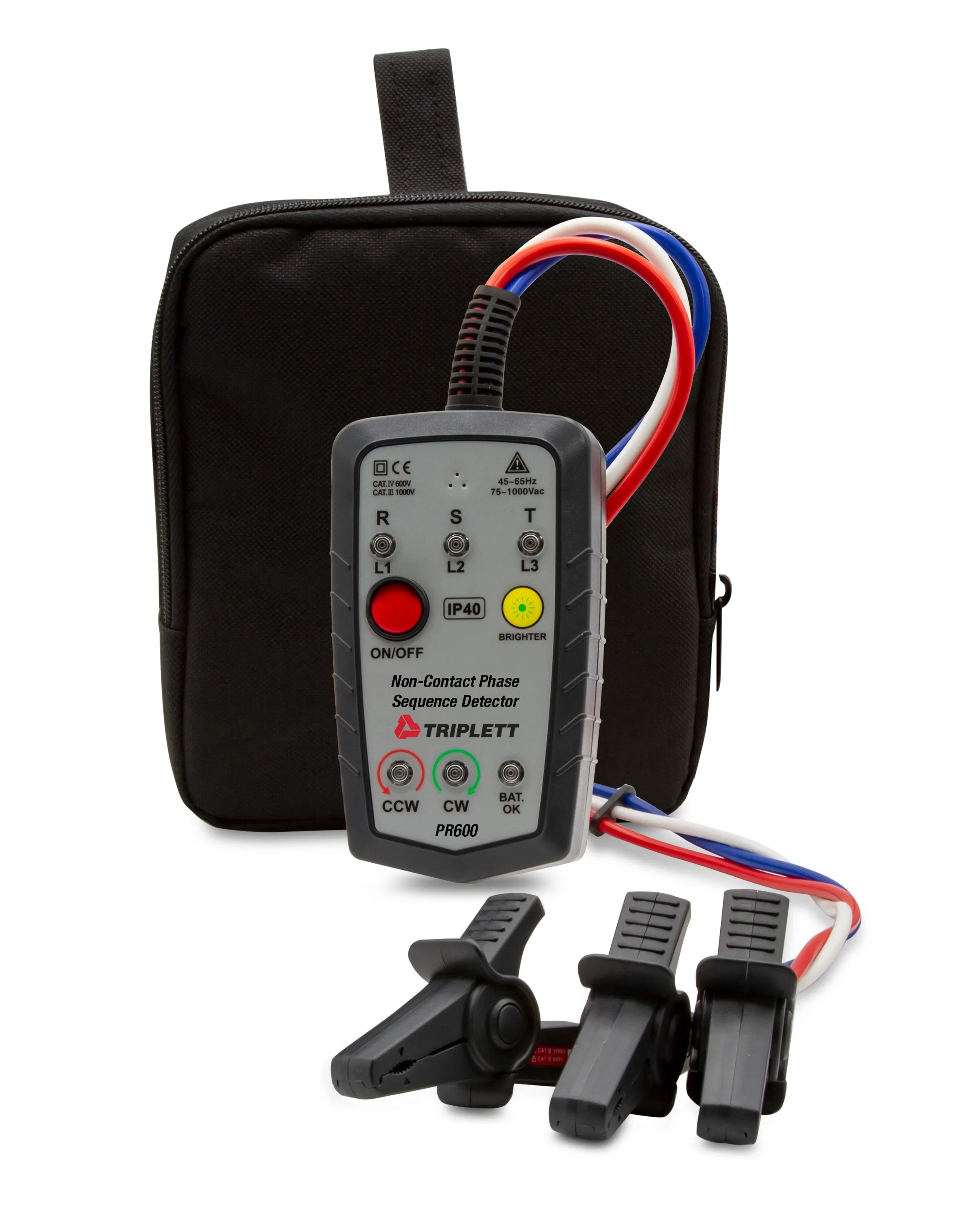

Includes 59" (1.5m) test leads with large color-coded alligator clips, 9V battery and soft case

Specifications

	PR600
Voltage Range	75 to 1000VAC
Bandwidth	45 to 65Hz
Max Conductor Diameter	1.3" (33mm)
Power	9V Battery
Safety Category	CAT IV 600V
Dimensions	5 x 2.8 x 1.8" (128 x 72 x 46mm)
Weight	13.2oz (375g)
