Features:

• Single-wide module, up to 4 modules in mainframe
• Maximum 100 Watts sinking power per module
• Voltage: Up to 60V
• Current: Up to 20A
• Advanced operating modes: CV, CC, CR, CP
• Arbitrary waveform generation
• High speed synchronized digitization of voltage and current
• Superior command processing time and current slew rate
• USB, LAN, GPIB interfaces standard
• N6700C style user interface for ease of use and familiarity

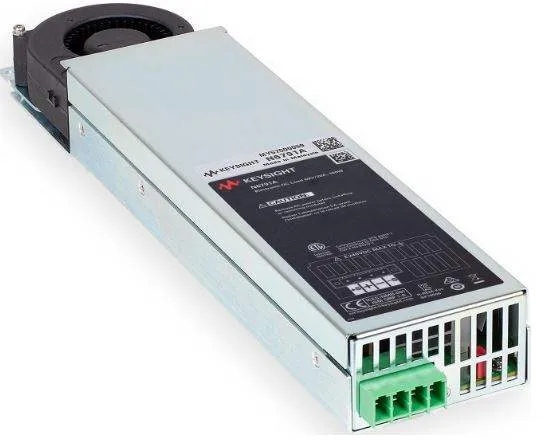

The Keysight N6791A offers a 1U height modular electronic DC load module for N6700C mainframes. Capable of sinking power up to 100 W per channel and be configured with up to four modules in a mainframe.

DC Electronic Load Module (60V/20A/100W)

The Keysight N6790 Series Modular Electronic Loads offer a 100W module and a 200W module each in a 1U footprint. Four different user operation modes are available: constant voltage, constant current, constant resistance, and constant power. With a high, accurate measurement system and digitizing capabilities, users can easily gain insight into their power supply test. Also, the series offers a powerful, built-in arbitrary waveform generator which allows users to emulate complex dynamic load waveforms. This is a must have for any serious power system designer and test engineer.
