Product Details
＋

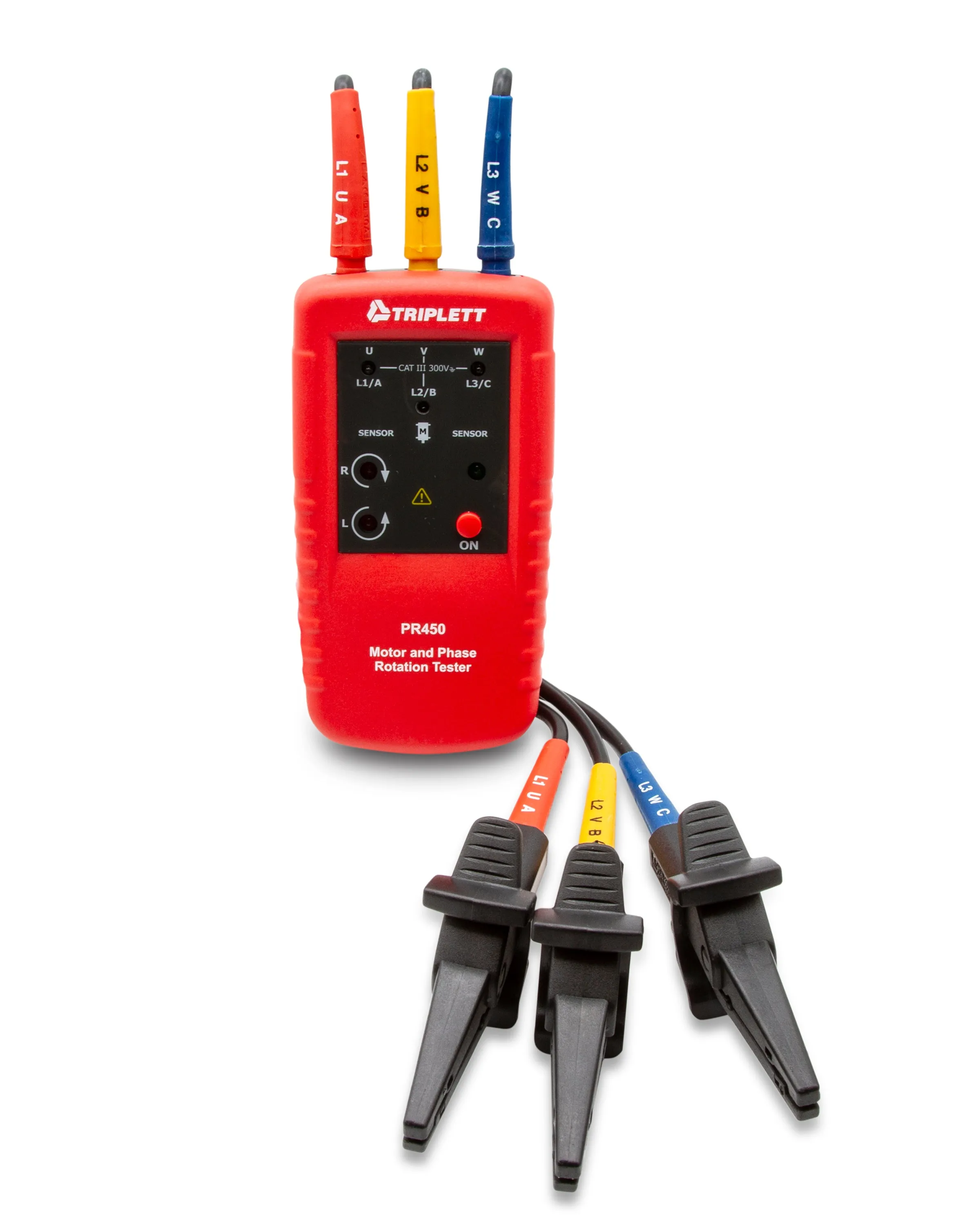

The Triplett Model PR450 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations and determines contact or non-contact motor-rotation direction.
DESCRIPTION

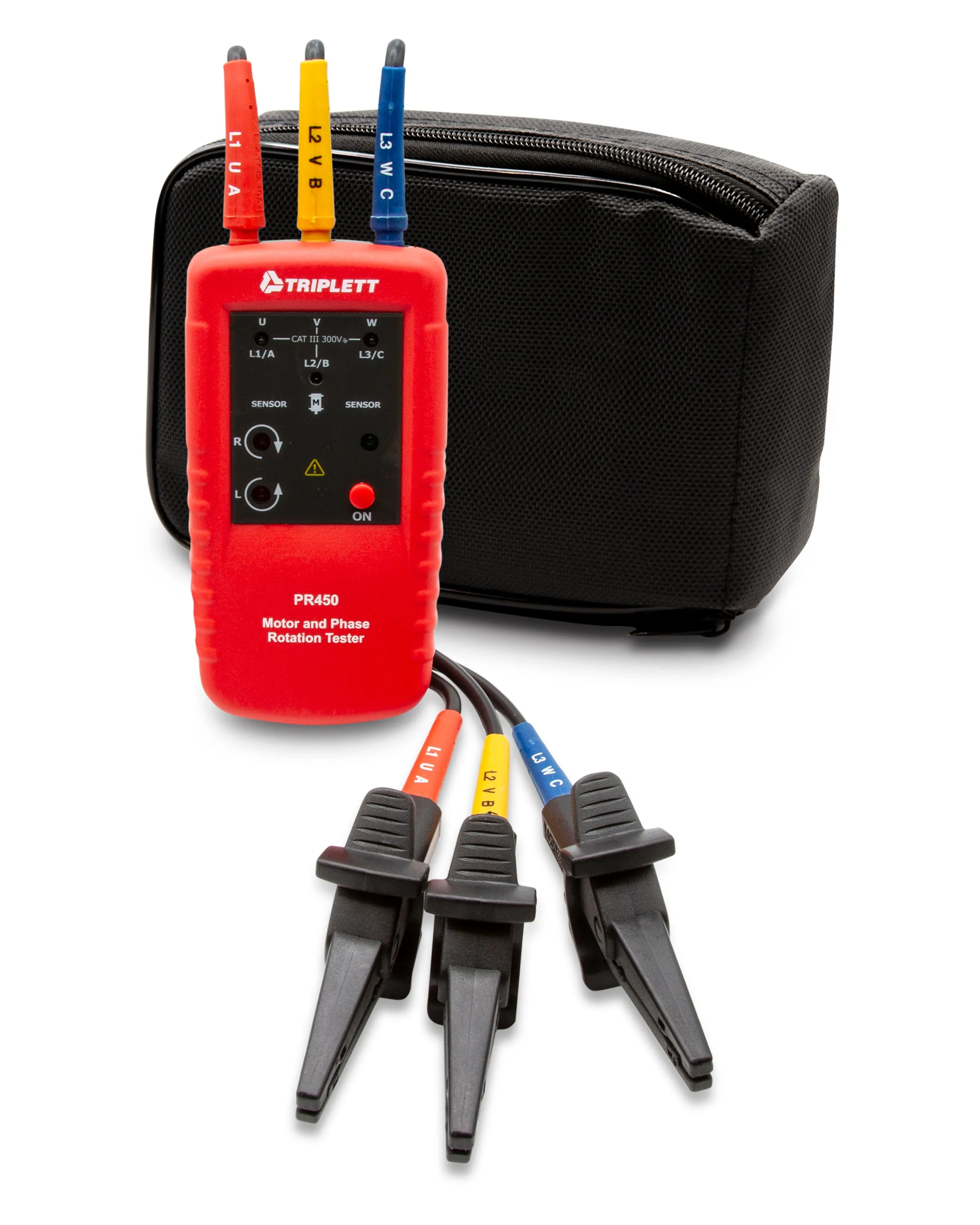

The Triplett Model PR450 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations and determines contact or non-contact motor-rotation direction. Color-coded test leads are provided for connecting to the system or motor under test. LEDs display phase direction/rotation (clockwise/counter-clockwise) and which phases are live. Includes test leads with large color-coded alligator clips, carrying case, and 9V battery. CAT III-600V safety rating. 1-year warranty.
Also available as Phase Rotation Tester - PR400
CATEGORY:
Specifications
- Determines correct phase wiring sequence(L1, L2, L3) for 3-phase system installation
- Complete with color coded test leads with large color-coded alligator clips, and carrying case
- Cat III-600V safety category

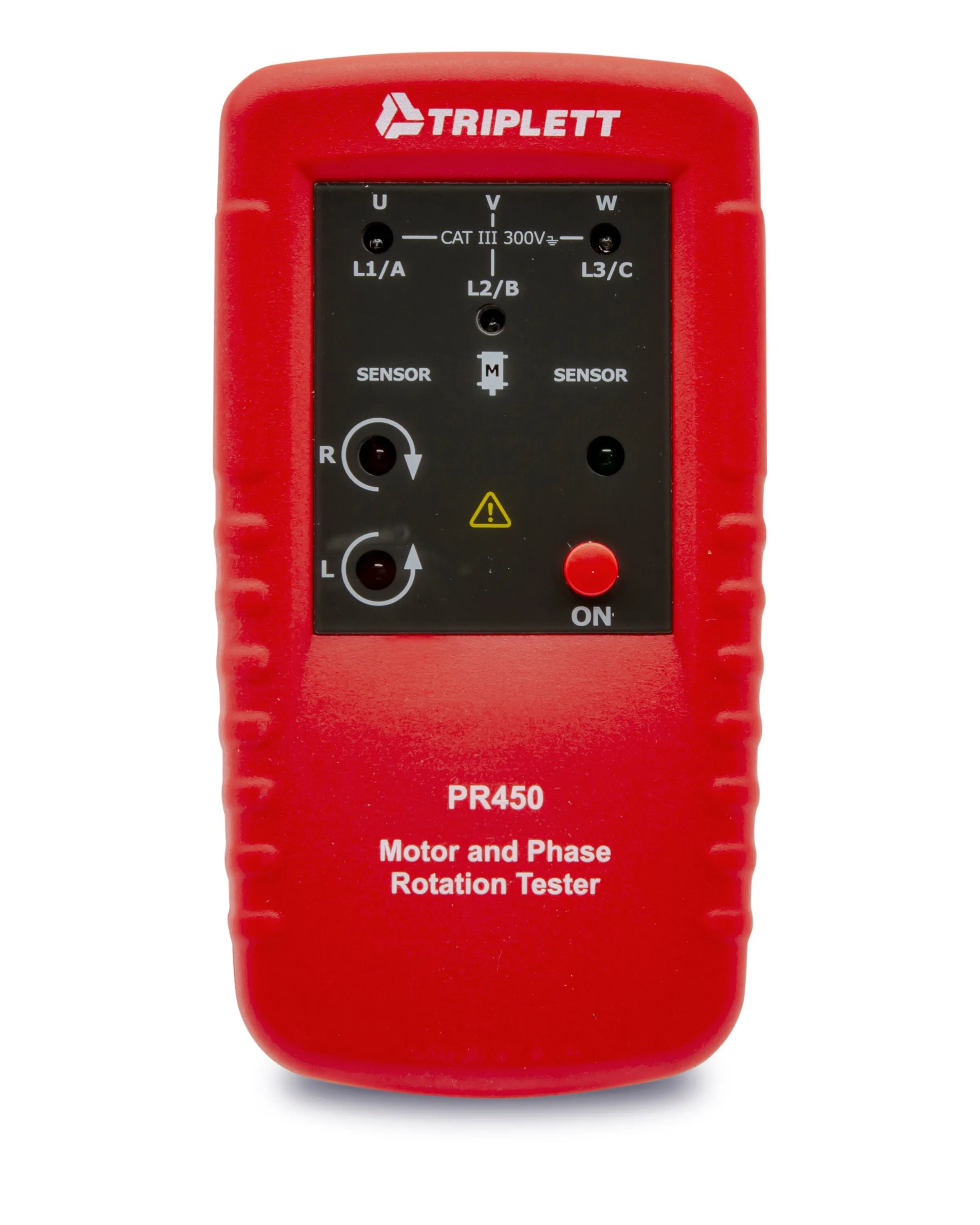

- LEDs display phase direction (clockwise/counter-clockwise) and which phases are live
- Contact or non-contact motor rotation direction indicator
- Includes 9V battery
- 1-year warranty
Specifications
| PR450 | |
| Voltage Range | 40 to 600VAC |
| Bandwidth | 2 to 400Hz |
| Power | 9V battery |
| Safety Category | CAT III 600V |
| Dimensions | 5.1 x 2.7 x 1.3” (130 x 69 x 32mm) |
| Weight | 4.6oz (130g) |
