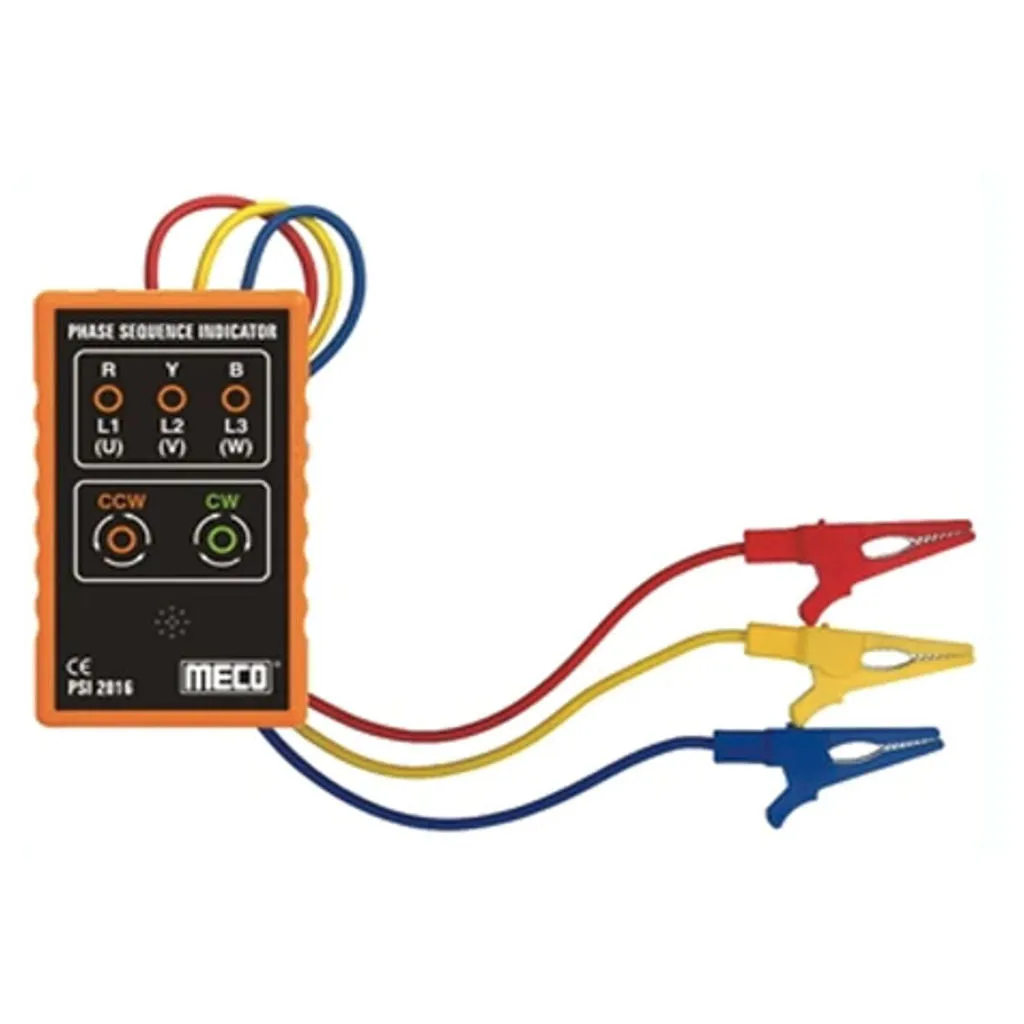

Product Description
-
3 Phase Sequence Indication via LED & Buzzer
-
Reverse Phase Indication via LED & Buzzer
-
Open Phase Indication via LED & Buzzer
-
No Battery Required
-
Rugged & Handy
-
Easy & Safe to Use
-
Coloured Test Probes with Heavy Duty Insulated Crocodile Clips for R, Y, B Phase Connections
-
Phase Presence Indication from as low as 60 V AC (PH-N)
Product Specification
|
Brand |
Meco |
|
Product Model |
PSI 2016 |
|
Product Type |
Phase Sequence Indicatior |
|
Electrical Specifications |
|
|
Voltage Range |
60 - 600V AC |
|
Frequency Range |
40 - 400Hz |
|
Operating Time For Continuous Measurement |
60 minutes Max. at 200VAC, 4 minutes Max. at 500VAC |
|
Withstand Voltage |
4000 V for one minute |
|
Environmental Specifications |
|
|
Storage Temperature |
- 20°C ~ 60°C |
|
Operating Temperature |
- 10°C ~ 40°C |
|
Safety Specifications |
|
|
Electrical Safety |
EN 61010 - 1 |
|
Over Voltage Category |
CAT III 600 V, CAT IV 300V |
|
Mechanical & General Specifications |
|
|
Case & Housing Material |
ABS |
|
Accessories |
Test Leads with Insulated Crocodile Clips & Carrying Case. |
|
Size |
100 x 60 x 24.5mm (approx.) |
|
Weight |
185g (approx.) |
|
Warranty |
1 Year |
