Product Description
-
3½ Digit 1999 Count Large LCD Display
-
High Accuracy for Insulation Measurement and for AC Voltage Measurement
-
Range Selection & Single Person Push Button Operation
-
LCD with Indicator Switch
-
Data Holding Function, Function Icons on Display
-
Measurement of AC Voltage upto 600VAC
-
Auto Range (Insulation Test)
-
Red LED Indicator for HV (High Voltage)
-
Battery Operated
-
As per IS10656-1983
-
As per Safety Standard IEC / EN 61010-1 & 61010-31
-
Over Voltage CAT III, 600V
-
As per EMC Standard IEC 61326 Class B
Product Specification
|
Brand |
Meco |
||||
|

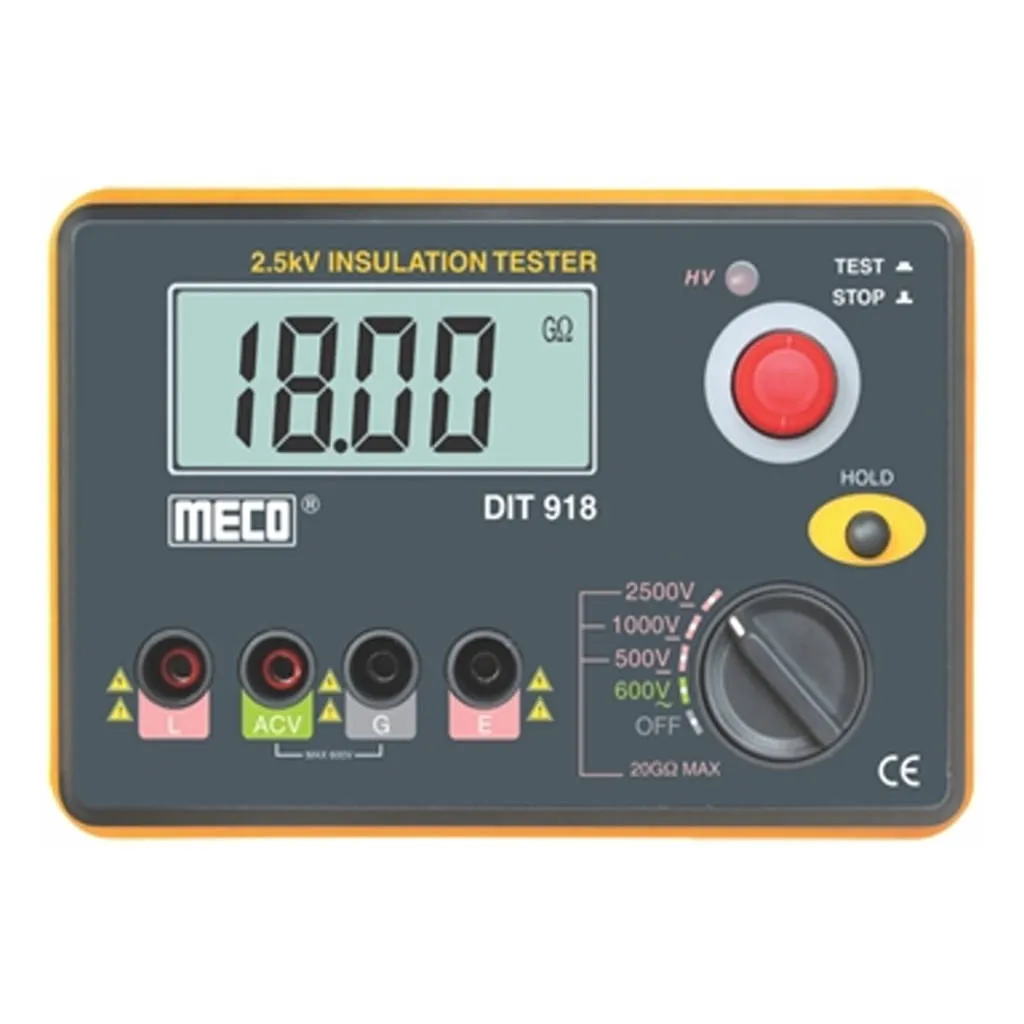

Product Model |
DIT918 |
||||
|
Product Type |
Digital Insulation Testers |
||||
|
Electrical Specification |
Test voltage |
Range |
Accuracy |
Resolution |
|
|
Insulation Resistance |
500V / 1000V / 2500V DC |
0.1MV to 200MV |
±(3%rdg 5 dgt.) |
0.01MV |
|
|
200MV to 10GV |
±(5%rdg 5 dgt.) |
||||
|
10GV to 20GV |
±(10%rdg 5 dgt.) |
||||
|
AC Voltage Measurement |
0-600VAC(40-60Hz) |
- |
±(2%rdg 5 dgt.) |
1V |
|
|
General Specifications |
|||||
|
Display |
3-1⁄2 Digit (1999 Counts) Large LCD Display with 20 mm Digit Height |
||||
|
High Voltage Indication |
Yes |
||||
|
Data Hold |
Yes |
||||
|
Low Battery Indication |
Yes |
||||
|
Low Resistance Warning |
Yes |
||||
|
Operating Temperature |
0°C to 40°C (RH < 80%) |
||||
|
Storage Temperature |
- 10°C to 50°C (RH < 85%) |
||||
|
Power |
9V (6 x 1.5V) (R6AA size batteries) |
||||
|
Standard Accessories |
Insulation Resistance Measurement Test Leads x 1 Set, 1.5V AA Batteries x 6 pcs, Carrying Bag x 1 pc, Instruction Manual x 1 pc |
||||
|
Dimensions |
150 x 100 x 70mm (approx.) |
||||
|
Weight |
680 gms including batteries (approx.) for DIT 918 Meter only, Weight of Accessories extra |
||||
|
Warranty |
1 Year |
||||
