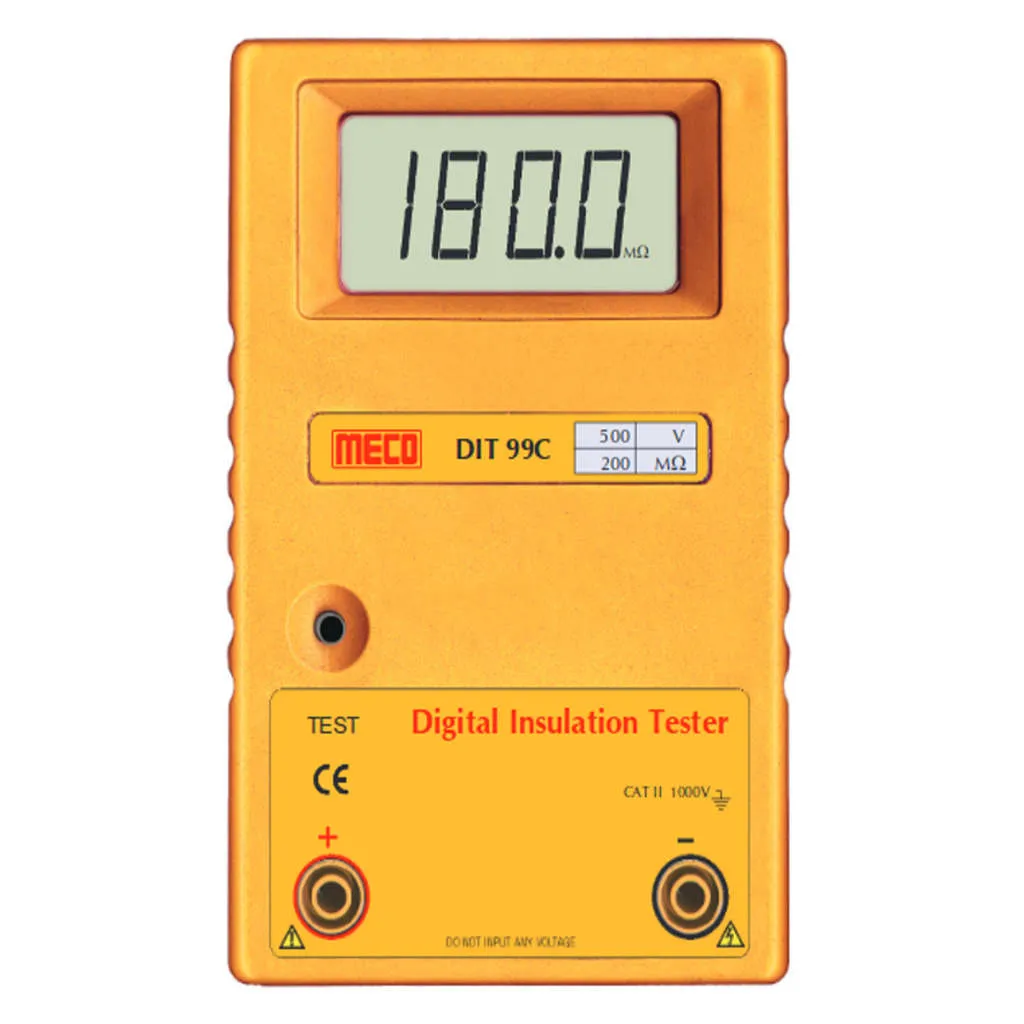

Product Description
-
3½ Digit 17mm LCD Display
-
High Accuracy ± (3% rdg 2 dgt)
-
Single Person Push Button Operation
-
Designed to Generally Confirm to IS 10656-1983
-
Meets Requirement of IEC 61010, Installation Category II, 1000V Phase - Earth
-
Terminal Voltage more than 85% of rated Voltage for Insulation Resistance Measurement from 10% to 100% of the Insulation Resistance Range
-
5 Models with various Voltage & MOhm Ranges
-
Carrying Case
-
Applications
-
Ideal for Insulation Resistance Measurement of
-
Electrical Equipment (Motors, Transformers, Machines, etc.)
-
Electrical Cables for Distribution Networks
-
Cables for Communication Networks
-
House Hold Appliances (Washing Machines, Mixer,Toaster, etc.)
-
Industrial, Commercial & Residential Installations
Product Specification
|
Brand |
Meco |
|
Product Model |
DIT 99B |
|
Product Type |
Digital Insulation Testers |
|
Range |
0 - 200 M Ohms |
|
Test Voltage Dc |
250 V |
|
Resolution |
0.1 M Ohms |
|
Display |
3½ digit LCD display, 17mm height with a maximum reading of 1999 |
|
Accuracy |
± (3% rdg 2 dgt) at 27°C± 5°C |
|
Conversion Rate |
2.5 sec |
|
Over-Range Indication |
“ 1 ” is Displayed |
|
Operating Temperature |
0° to 50° C |
|
Storage Temperature |
-20°C to 60°C |
|
Relative Humidity |
80% Maximum |
|
Power |
9V (6 x 1.5V AA) Battery |
|
Dielectric Strength |
3.5 KV @ 50Hz for 1 min. between Input Terminals & Case |
|
Insulation Resistance |
More than 50MOhm at 500V between Circuit & Case |
|
Standard Accessories |
1 x Pair of Crocodile / Alligator Test Leads (Red & Black), 1 x Carrying Case 6 x 1.5V AA, Batteries (Fitted – In), 1 x Instruction Manual |
|
Dimensions |
145 x 95 x 59 mm (approx.) |
|
Weight |
370gms Including Battery (approx.) |
|
Warranty |
1 Year |
