Matrix Switch Corporation distribution amplifiers combine exceptional performance with value. Their compact size allows for them to be utilized in space constrained situations and all external connections are on the same side making for a clean installation.

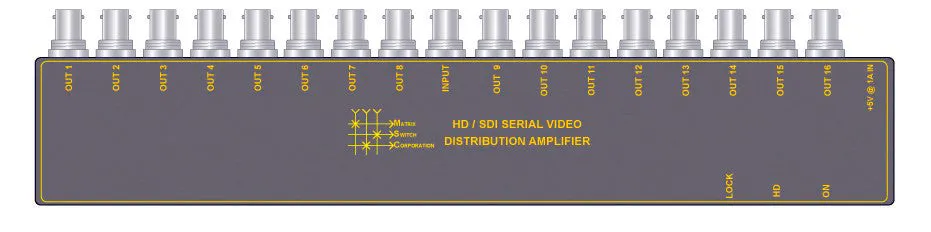

The MSC-HDDA16 include 143MBPS, 270MBPS, 1.484GBPS and 2.97GBPS Auto Rate Detection with "Power OK", "Lock" and "HD" indicators. Two MSC-HDDA16 SDI Distribution Amplifiers can be mounted in a 1RU space using the MSC-DA16RA rack adapter, providing wide distribution of one or two SDI signals to 31 or 32 destinations.

Features:

• Low power consumption of less than 2W.
• Automatic cable equalization.
• Auto re-clock / bypass any rate from 10KBPS through 2.97GBPS (3G-SDI models).
• Power, Lock and HD indicator lights.
• All connectors on one edge for easy installation.

Specifications:

• Input impedance 75 ohms /- 1%
• Input return loss > -15 dB at 1.5GBPS > -12 dB at 2.97GBPS
• SDI HD DA Input level 800mV P-P ±20%
• AES/SPDIF DA Input level 200mV - 8V P-P
• Output impedance 75 ohms /-1%
• Output return loss > -15 dB at 1.5GBPS > -12 dB at 2.97GBPS
• SDI HD DA Output level 800mV P-P /-5%
• AES/SPDIF DA Output level 1V P-P /-5%
• HD (1.483 - 2.97GBPS) cable equalization 175m for Belden type 1694A cable at 1.5GBPS 100m for Belden type 1694A cable at 2.97GBPS
• AES/SPDIF DA input cable Up to 200m
• SDI/HD DA Embedded audio Clean pass through
