Product Details
＋
- CAT III 300V and CAT II 600V
- DC current to 10amps
- Measures resistance up to 20MΩ
- Measure AC and DCV to 1000V
- Large mirror scale
- Transistor test
- Continuity buzzer
- 20kΩ/V Sensitivity

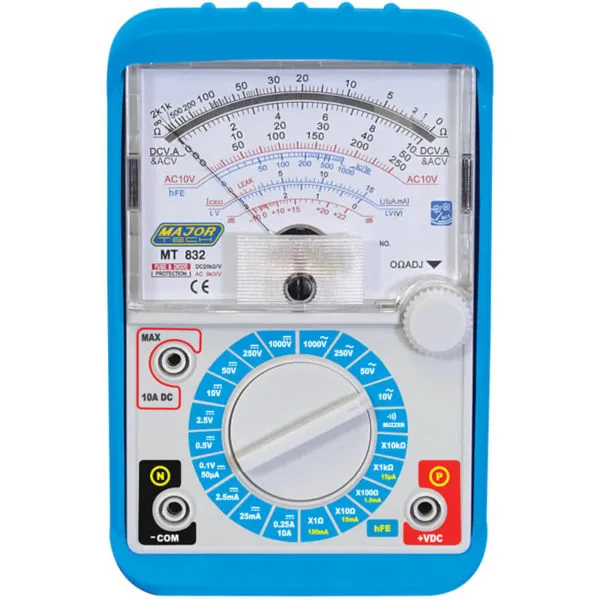

The MT832 Analogue Meter is an ideal meter for general purpose site applications for students, hobbyist and homeowners. The MT832 has 24 versatile ranges, 0 adjust and has a large mirrored scale to easily identify the measurements. This meter is supplied standard with a protective rubber holster.
Specifications
| Function | Range |
| DC Voltage | 0.1V – 1000V |
| AC Voltage | 10V – 1000V |
| DC Current | 50µA – 10A |
| Resistance | 2Ω – 20MΩ |
| dB Measurements | 1dB – 28dB |
| Continuity | Yes |
| Diode Test | Yes |
| Battery Test | Yes |
| Transistor Test PNP Transistors | Yes |
| Digital Display | Analogue |
| Overrange Indication | Yes |
| Enclosure | Rubber holster |
| Batteries | 1 x 9V and 2 x AA |
| Weight | 280g |
| Dimensions | 170 x 110 x 50mm |
| Safety Specs | CAT II 600V |
Safety Ratings
Includes:
- Batteries
- Instruction Manual
