Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPDT |
| Current Rating | 10 A |
| Monitoring Function | Current Monitor |
| Mounting Type | Socket |
| Number of Pins | 8 Pin |
| Output Type | Relay |
| Product Description | The CO Series is used to detect an over current condition. The pick-up current setting is user adjustable within one of three ranges. An external current transformer can be used to extend the range beyond 10 A. The relay will energize when the monitored AC current is above the pick-up setting for a period longer than the adjustable time delay of 0.1 to 10 sec. This delay prevents nuisance tripping caused by inrush currents. It will de-energize when the monitored AC current is below the drop-out setting. |

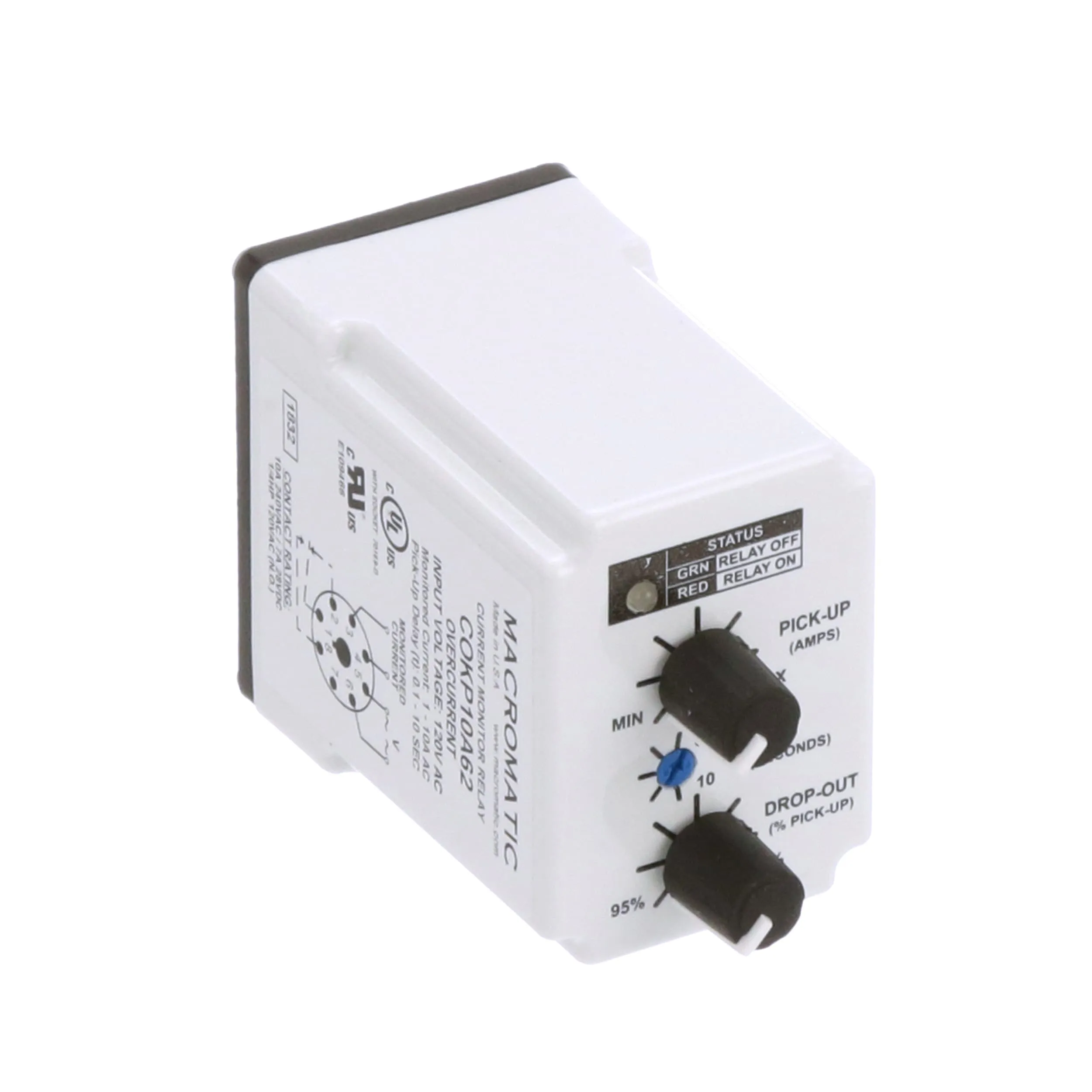

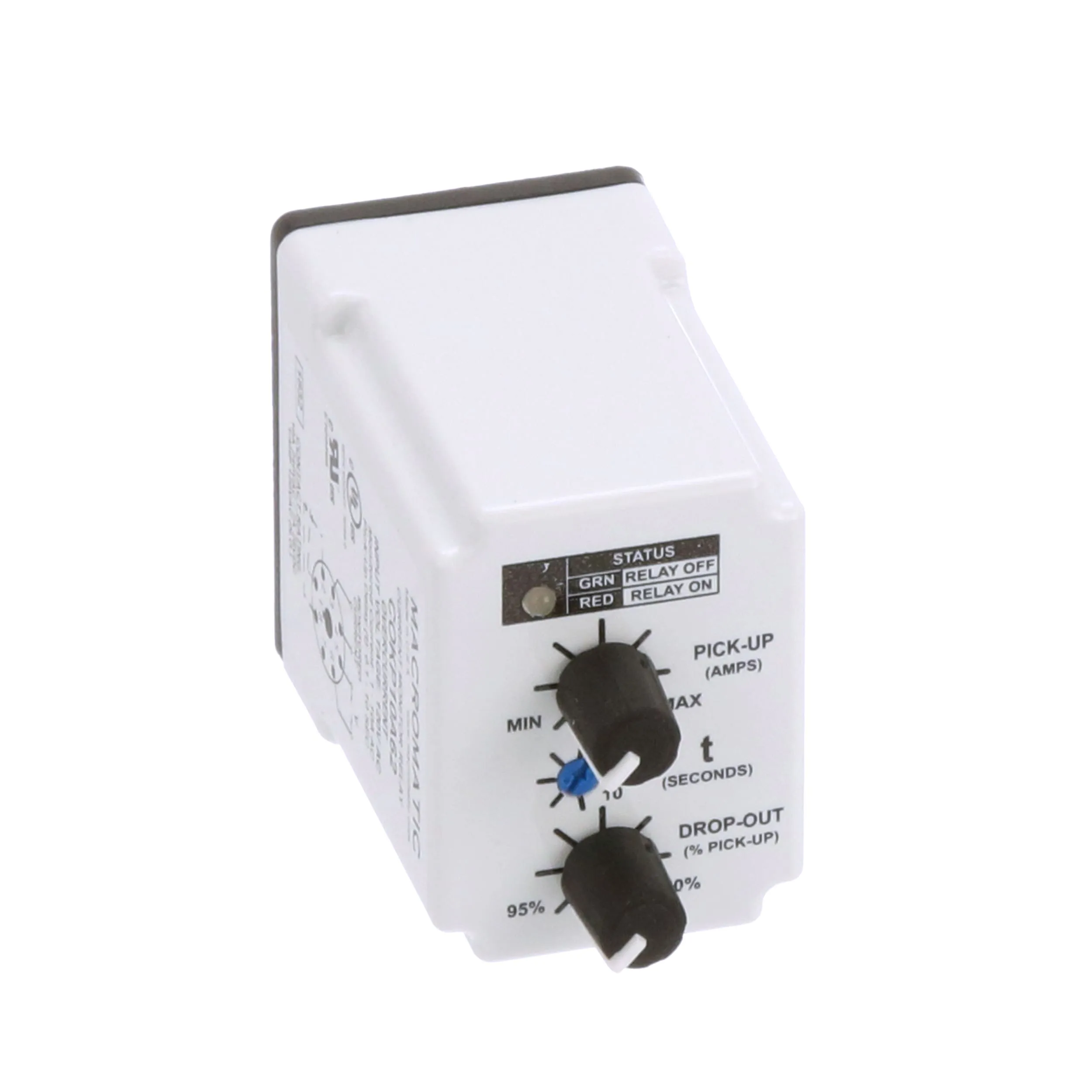

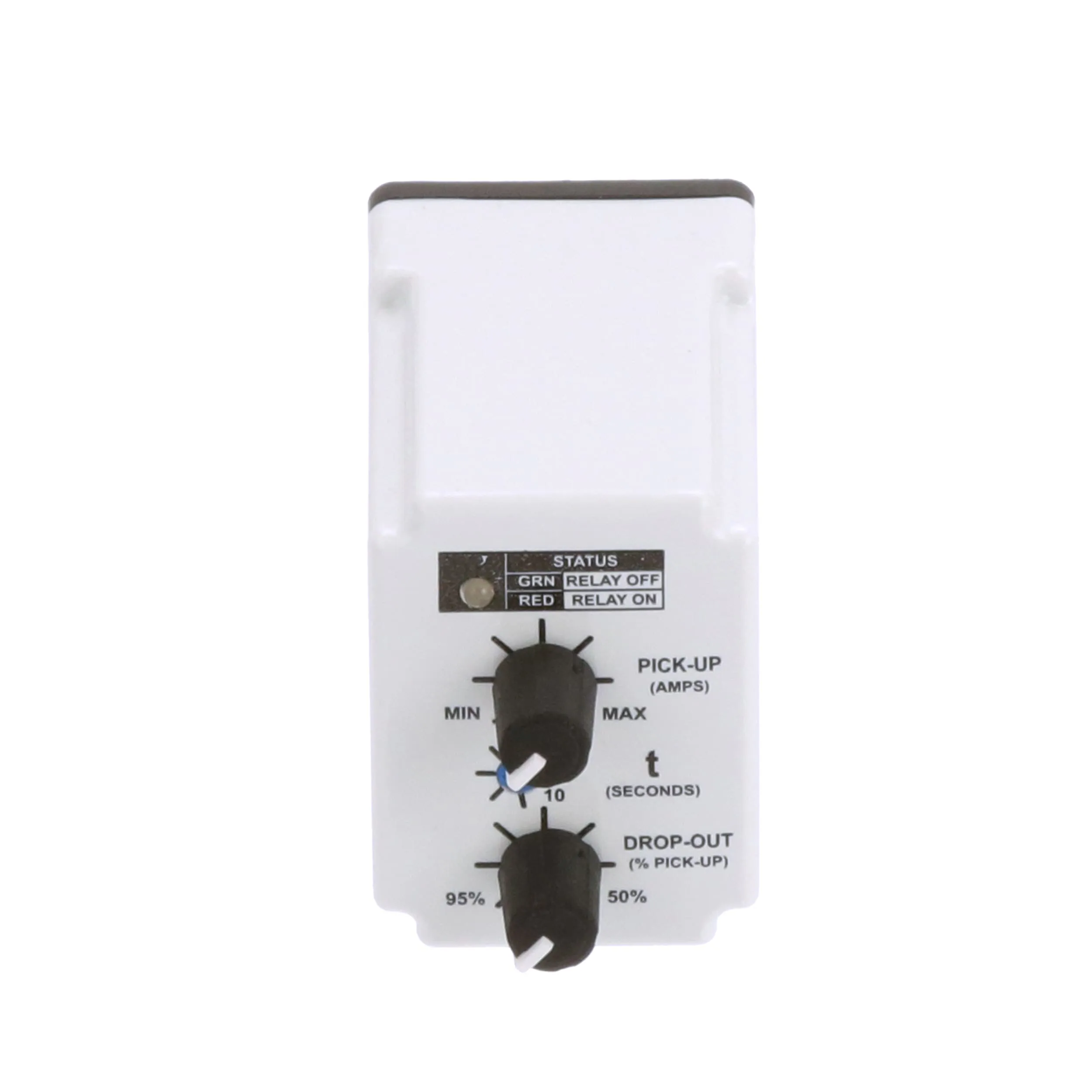

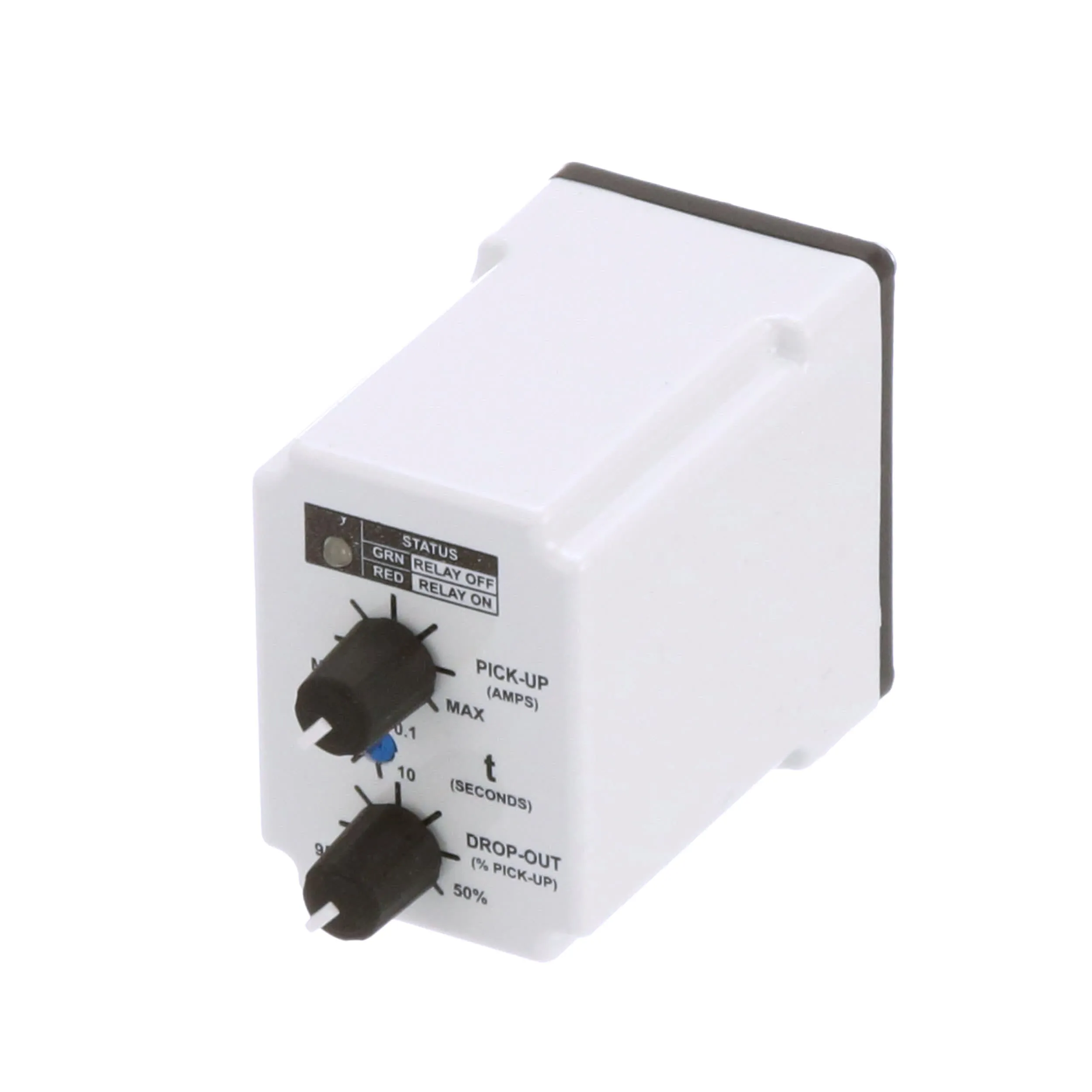

| Product Header | CO Series AC Plug-In Current Monitor Relays |
| Relay Type | Electromechanical |
| Series | |
| Special Features | LED Indicates Relay Status, Monitors AC Single-Phase or DC Voltages, Standard 8-Pin Octal Socket Mounting, Adjustable Time Delay |
| Standards | CE, UL, cULus |
| Supply Voltage | 120 VAC |

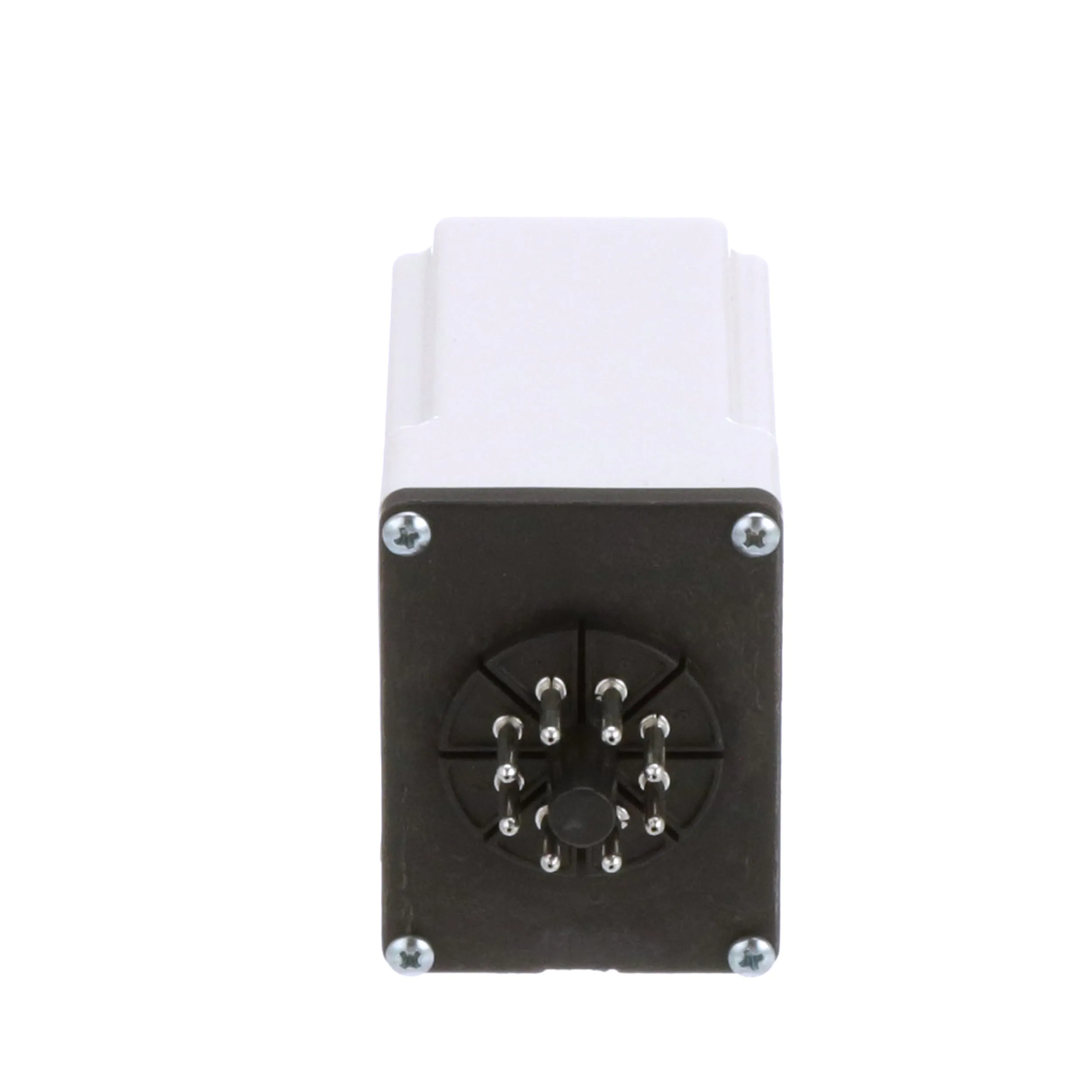

| Termination | 8-Pin Octal |
| Voltage Rating |
240 VAC ; 30 VDC |
| Voltage, Control | 120 VAC |
Overview
The COKP Series is used to detect an overcurrent condition. The pick-up current setting is user-adjustable within 1-10A. An external current transformer can be used to extend the range of these products. The drop-out setting is adjustable from 50-95% of the selected pick-up setting. The relay will energize when the monitored AC current is above the pick-up setting for a period longer than the adjustable time delay (t) of 0.1-10 seconds. This delay prevents nuisance tripping caused by inrush currents. It will de-energize when the monitored AC current is below the drop-out setting.
