Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±0.1% % |
| Approvals | RoHS |
| Cut Out, Panel | 1.34×0.84 " |
| Depth | 0.394" (10mm) |
| Dimensions | 1.38" L x 0.88" W x 0.66" H |
| Dimensions, Cutout, Inches | 34 x 21.3 mm |
| Display Digit Height | 9.4 mm |
| Display Type | LED |
| Function | Voltmeter |
| Input Signal Type | Voltage |
| Measurement Range | 200 mVDC |
| Measuring Range | Maximum of 200 mVDC |
| Meter Type | Voltmeter |
| Minimum Operating Temperature | 0 °C |
| Number of Digits | 3.5 Digits |
| Operating Temperature | 0 to 50 °C |
| Primary Type | Electronic |

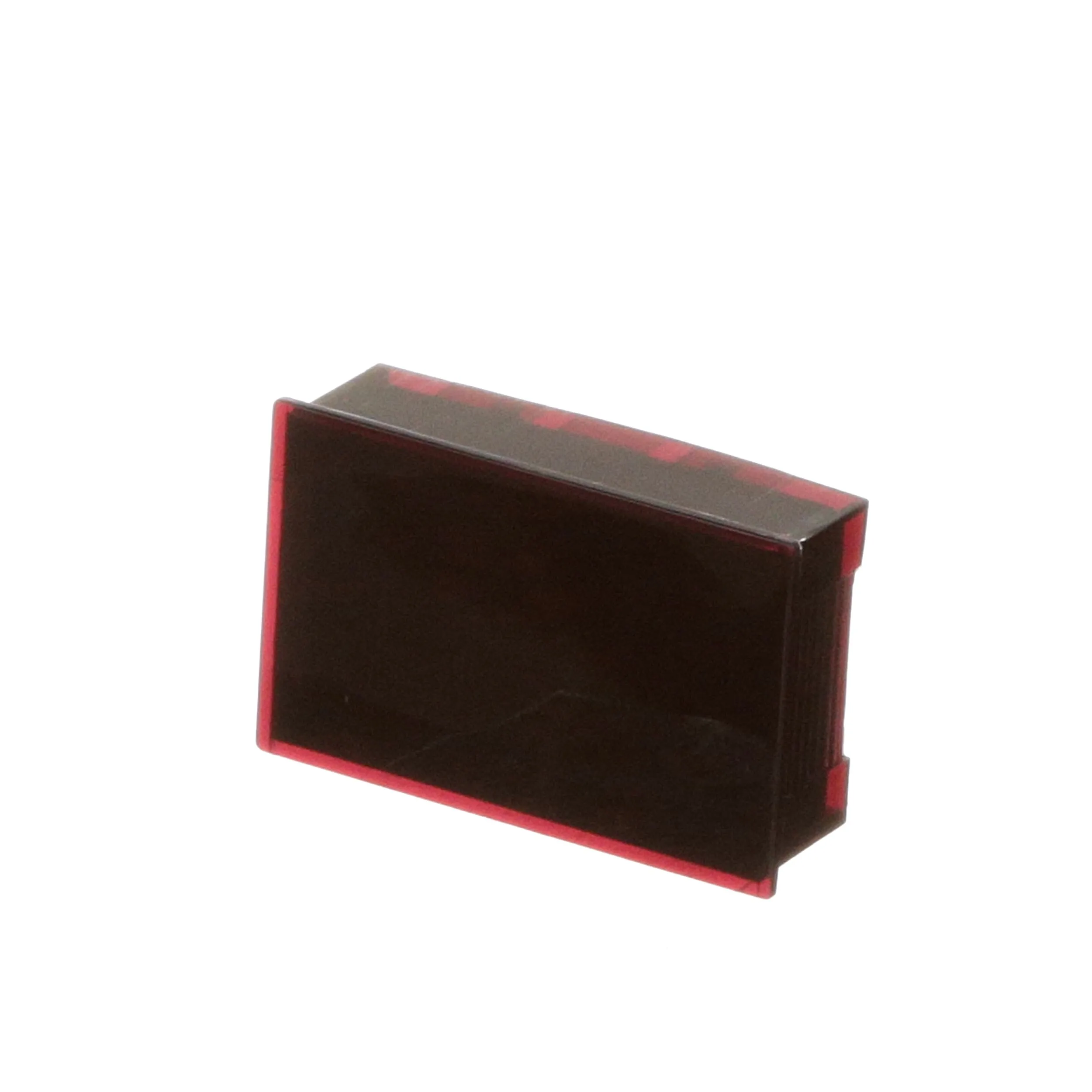

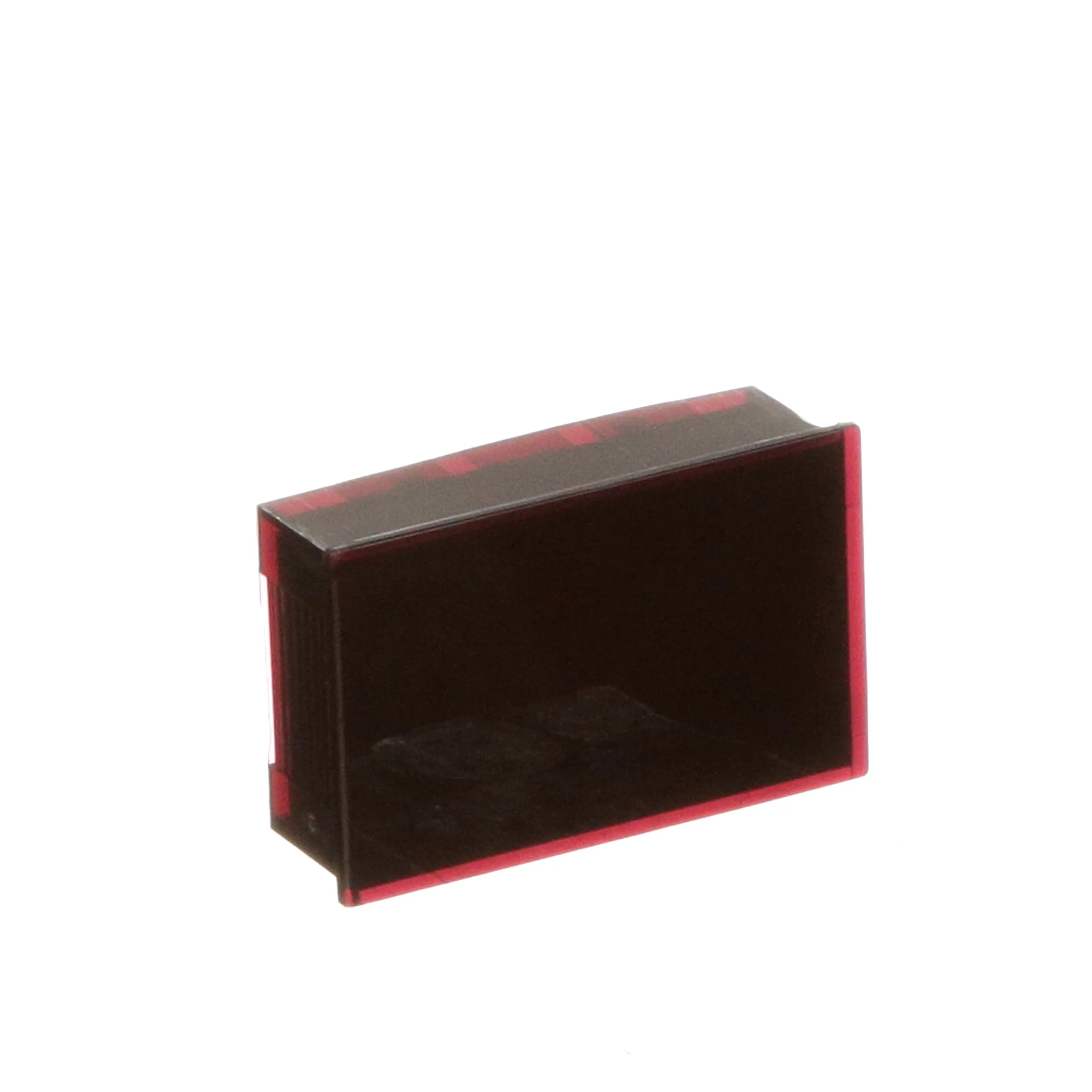

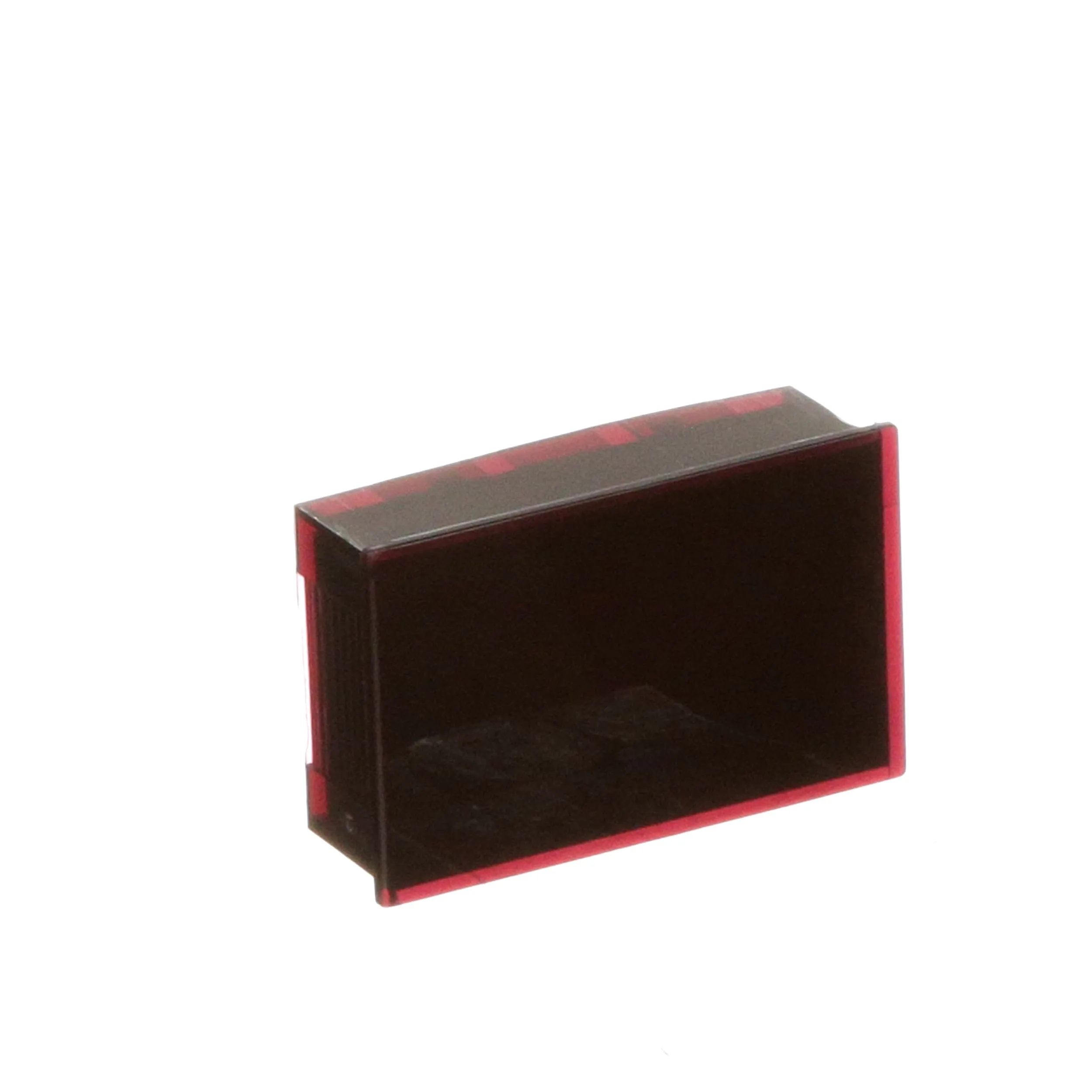

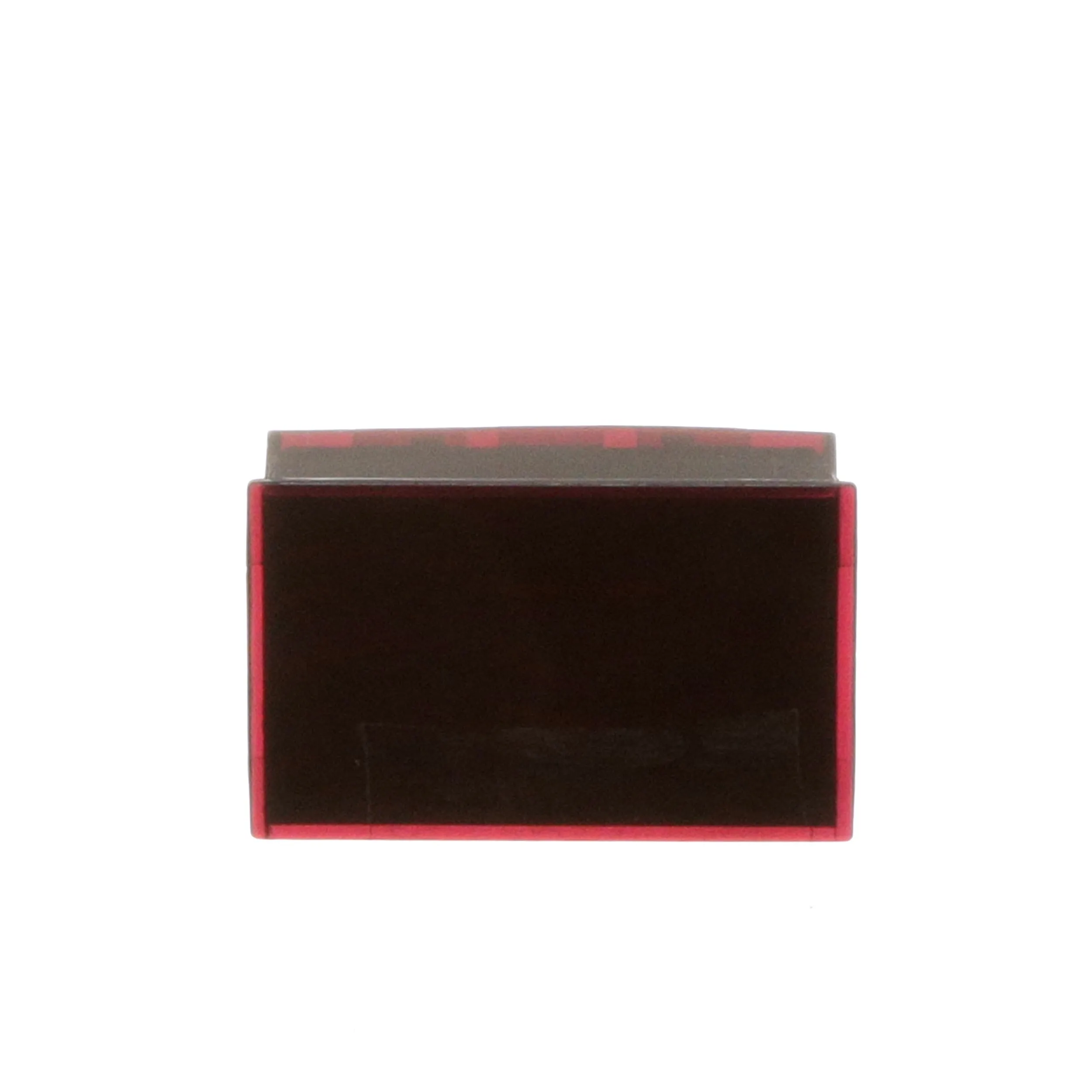

| Product Header | 3-1/2 Digit LED Voltmeter Module |
| Series | |
| Special Features | Splashproof |
| Supply Voltage | 5 VDC |
| Temperature Range | 0 to 50 °C |
| Temperature, Opening, Maximum | 50 °C |

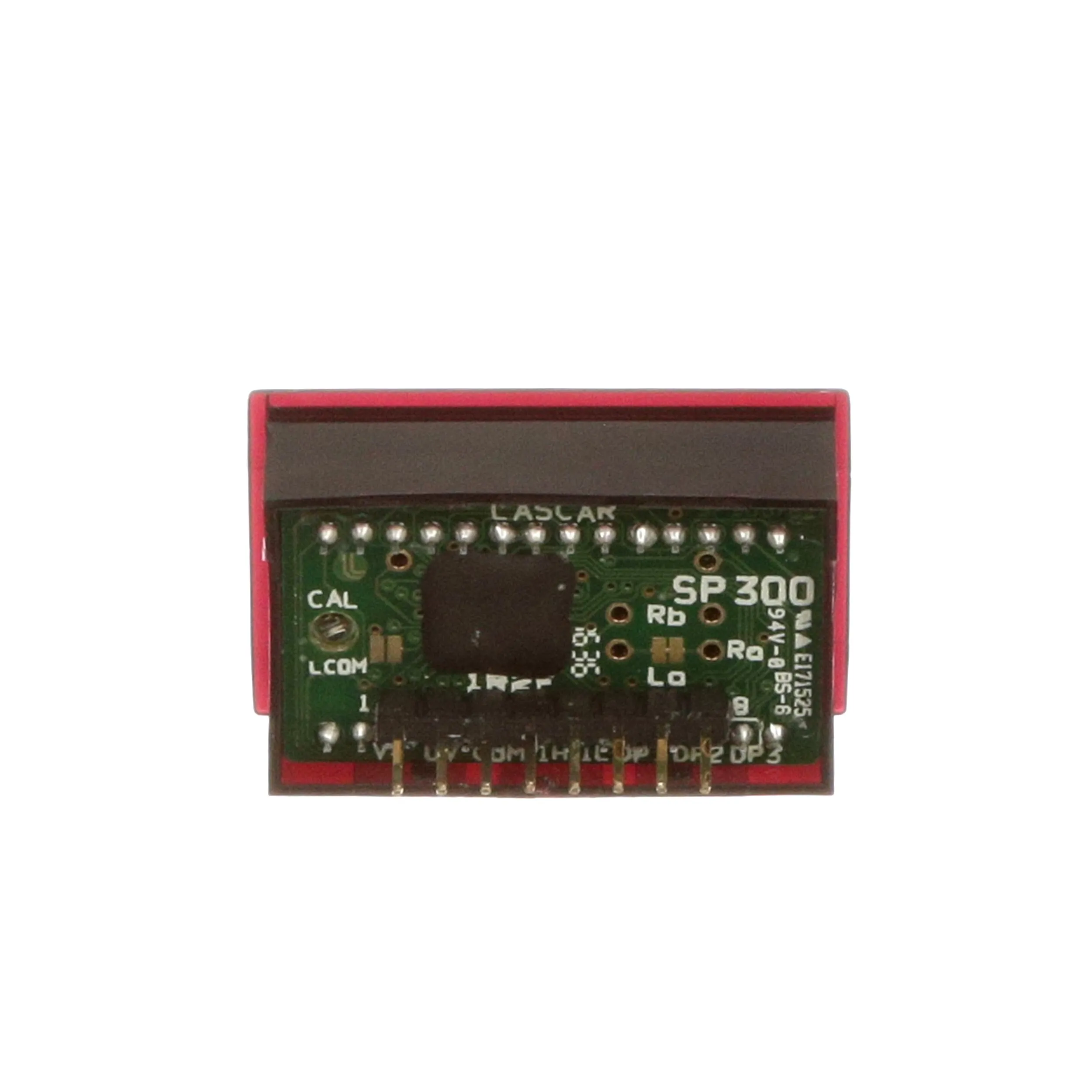

| Termination | SIL-8 Pins |
| Type | Electronic |
Overview
The SP Series consists of five 31⁄2-digit voltmeters with ±200 mVDC full scale reading, a 3-digit 2-wire signal powered voltmeter (SP 5-1200-BL) and a 17 segment, analog-style LCD panel meter (SP 5-1710-BL). The SP Series voltmeters are available in LCD and LED format with 12-pin modules allowing more modes of operation and compatibility with similar competing modules. 9-pin versions are lower cost, easier to use and more suited to new designs. All modules when fitted with the rubber seal supplied are splashproof protected from the front.
