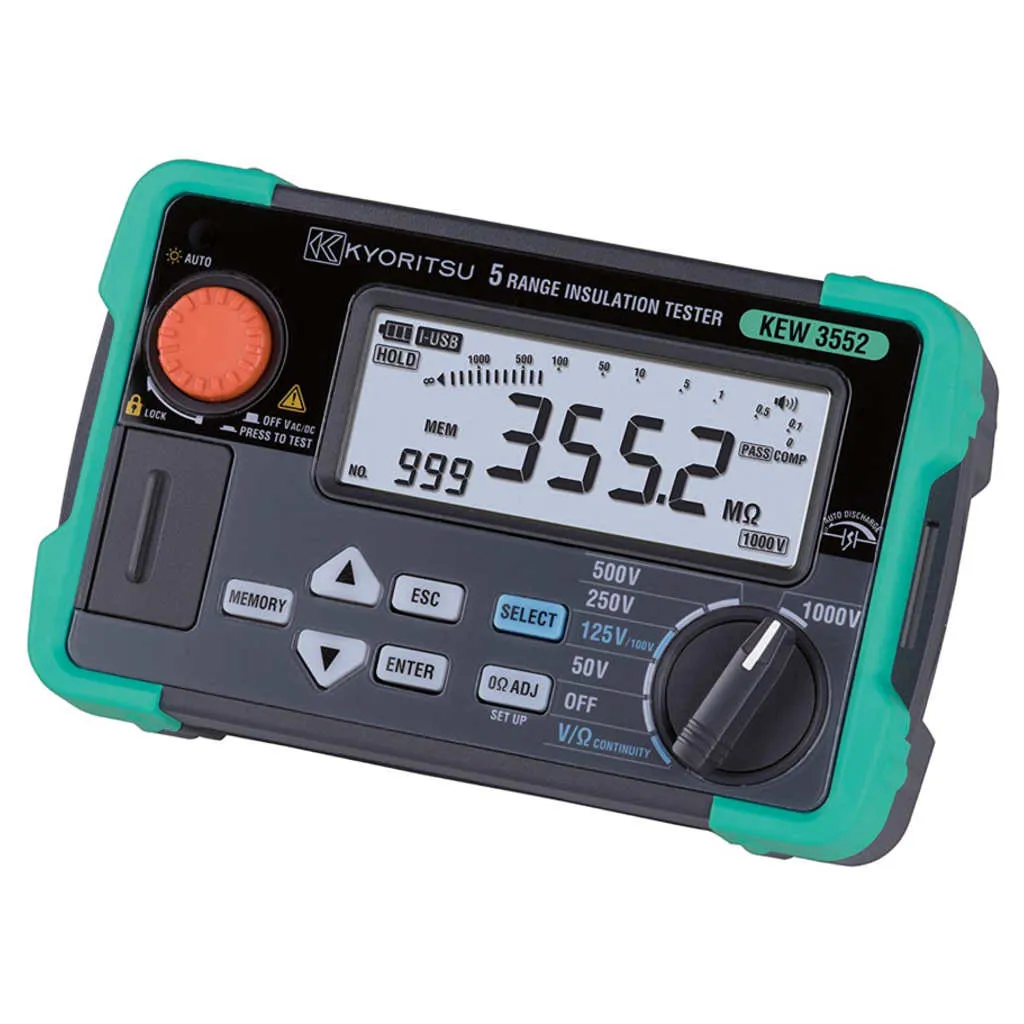

Name: Kyoritsu Digital Insulation/Continuity Tester With Memory Function 3552
SKU: 1297385

Product Details ＋

Product Description

World’s fastest measurement speed (0.5 sec.)
Six ranges available for insulation
Resistance test (50/100/125/250/500/1000 V)
nsulation measurement up to 40GΩ
Diagnostic Insulation Test : PI, DAR

Product Specification

Brand	Kyoritsu
Product Type	Insulation Tester Digital
Product Model	3552
Insulation Resistance
Test Voltage	50V/100V/125V/250V/500V/1000V
Measuring Range (Auto Range)	100.0MΩ（50V） 200.0MΩ（100V） 250.0MΩ（125V） 500.0MΩ（250V） 20.00GΩ（500V） 40.00GΩ（1000V）
Mid-Scale Value	2MΩ（50V） 5MΩ（100V/125V） 10MΩ（250V） 100MΩ（500V） 200MΩ（1000V）
First Effective Measuring Range	0.100 ～ 10.00MΩ（50V） 0.100 ～ 20.00MΩ（100V） 0.100 ～ 25.00MΩ（125V） 0.100 ～ 50.0MΩ（250V） 0.100 ～ 500MΩ（500V） 0.100 ～ 1000MΩ（1000V）
Accuracy	±2%rdg ±2dgt
Second Effective Measuring Ranges	0.050 ~ 0.099MΩ（50V/100V/125V/250V/500V/1000V） 10.01 ~ 100.0MΩ（50V） 20.01 ~ 200.0MΩ（100V） 25.01 ~ 250.0MΩ（125V） 50.1 ~ 500MΩ（250V） 501 ~ 2000MΩ（500V） 1001 ~ 4000MΩ（1000V）
Accuracy	±5%rdg (0.050 ~ 0.099MΩ: ±2%rdg±4dgt)
Rated Current	1.0 ~ 1.1mA
Output Short Circuit Current	1.5mA max
Ω / Continuty
Auto Range	40.00/400.0/4000Ω
Accuracy	±2.5%rdg ±8dgt
Output Voltage On Open Circuit	5V（4~6.9V）
Output Short Circuit Current	200mA max
Voltage
Voltage Range	AC 2.0~600V（45~65Hz）　 DC -2.0~-600V 2.0~ 600V
Accuracy	±1%rdg ±4dgt
General
Applicable Standards	IEC61010 CATⅢ 600V/CAT IV 300V IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529（IP40）
Power Source	LR6/R6 Kyoritsu Digital Insulation/Continuity Tester With Memory Function 3552 Title: DefaultTitle $ 62.54 $ 48.11 Please select combo product attributes The combo subtotal is $,SAVE$ Unavailable You May Also Like $ 56.30 $ 43.31 CAT5E RJ45 Inline Coupler Extension $ 14.90 Tool- Wire Cutter And Stripper $ 52.95 $ 40.73 For 2016-2020 Toyota Tacoma H11 LED Headlight Bulbs Bundle $ 62.60 $ 48.15 Factory Refurbished DEWALT FLEXVOLT® 60V MAX* VSR™ Stud and Joist Drill with E-Clutch® System (Tool Only) DCD460B $ 84.27 $ 64.82 BFT Cellular Call Box W/ Keypad- Pedestal Mount - BFTCELL-PRIME4G $ 58.84 $ 45.26 Fluke 717 3000G Pressure Calibrator, 0 - 3000 psi, .05% Accuracy $ 59.84 $ 46.03 ALTO TX212S 12-Inch 900Watt Subwoofer $ 87.59 $ 67.38 Fireboy-Xintex Propane Fume Detector w/Automatic Shut-Off Plastic Sensor - No Solenoid Valve - Chrome Bezel Display [P-1CNV-R] $ 53.77 $ 41.36 7'' LED Halo Headlights with Turn Signals 4.5'' LED Halo Fog Lights Bracket $ 65.01 $ 50.01 Amtech All Weather Mains Voltage Tester ＋ Home Wire Strippers ＋ Adjustable Wire Strippers Compact Multi-Wire Tools Voltage Testers ＋ Digital Voltage Testers Pen-Style Voltage Testers Wireless Systems ＋ Wi-Fi Voltage Monitors Accessories ＋ Tool Belts for Electricians Wire Organizer Cases Sensors ＋ Current Measurement Modules Circuit Continuity Sensors Lighting ＋ Work Area LEDs Voltage Detection Indicators Cart ＋ Your cart is currently empty. Total: VIEW CART
