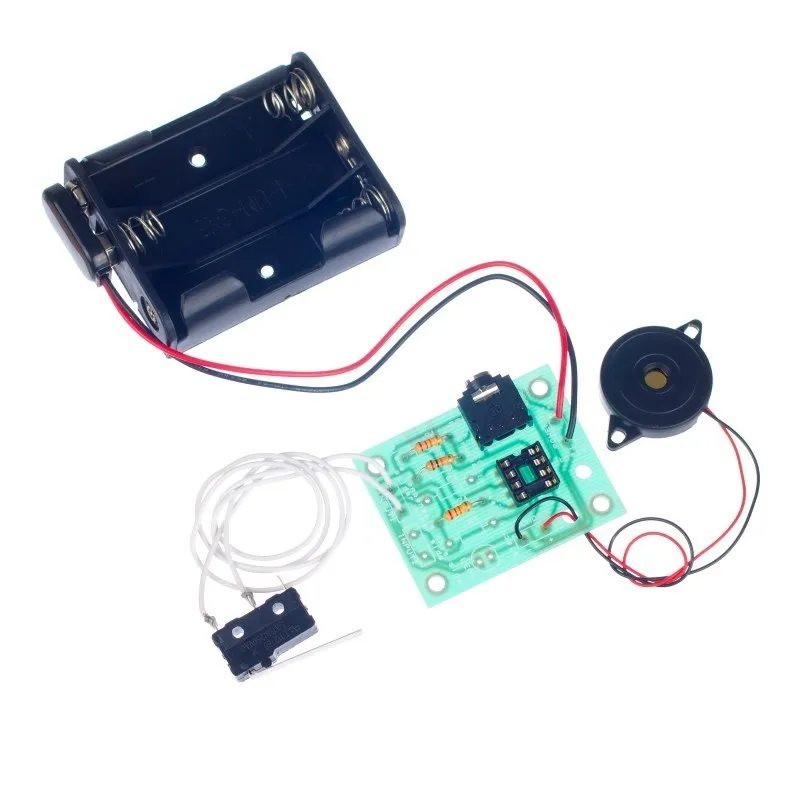

The music box has a micro switch used to start the music when the box lid is opened, or can be triggered by a passing coin in to a money box. The kit can be used with your choice of 8 pin PIC processor and flowchart software. A simple programming task allows the student to play a tune of their choice when the switch it activated. The kit is compatible with most educational PICs & software. Programming is via a 3.5mm jack interface.

Features:

• This board is compatible with most education Flowcharting Systems.
• A simple programming task allows the student to play a tune of their choice when the switch it activated.

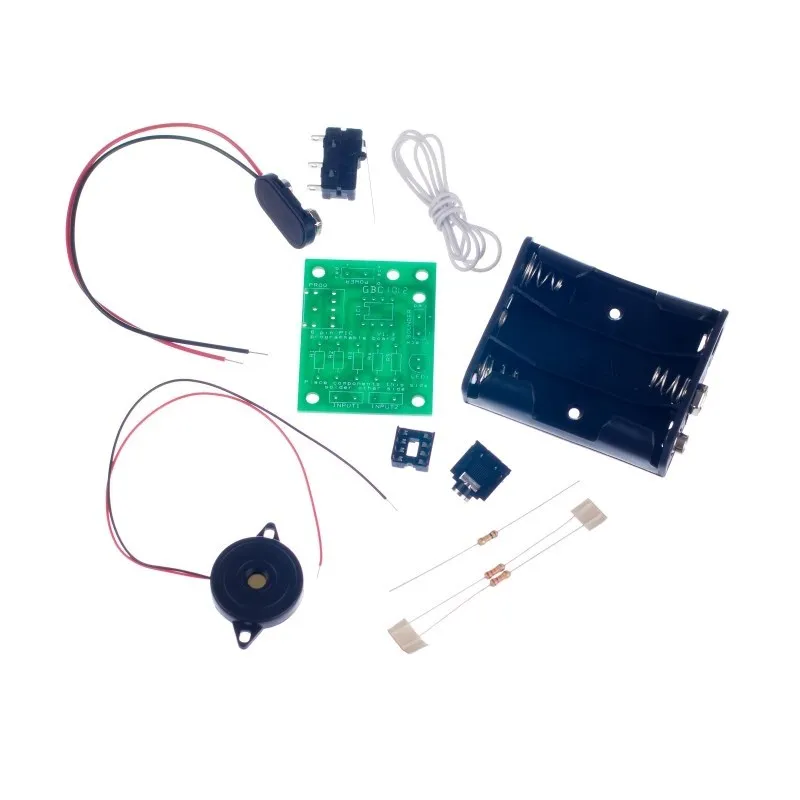

Contents:

• 1 x 3.5mm PCB Mount Jack Socket.
• 1 x 10KΩ Resistor.
• 2 x 22KΩ Resistors.
• 1 x 8 Pin IC Holder.
• 1 x Micro Switch With Medium Lever.
• 1 x Piezo Buzzer (no Drive).
• 1 x PP3 Clip Lead.
• 1 x 3AA Battery Cage.
• 0.5m Connecting Wire
• 1 x music box PCB

Dimensions:

• PCB Length: 46mm.
• PCB Width: 36mm.

Requires:

• Your choice of processor (PICAXE or GENIE).
• You will also need either the PICAXE or GENIE programming software and .
• 3 x AA Batteries.
• .
• .
• .

Resources:

• .
• .

Note:

• This kit requires soldering.
• Processor not included.
• You will also need either the or GENIE programming software and lead.
