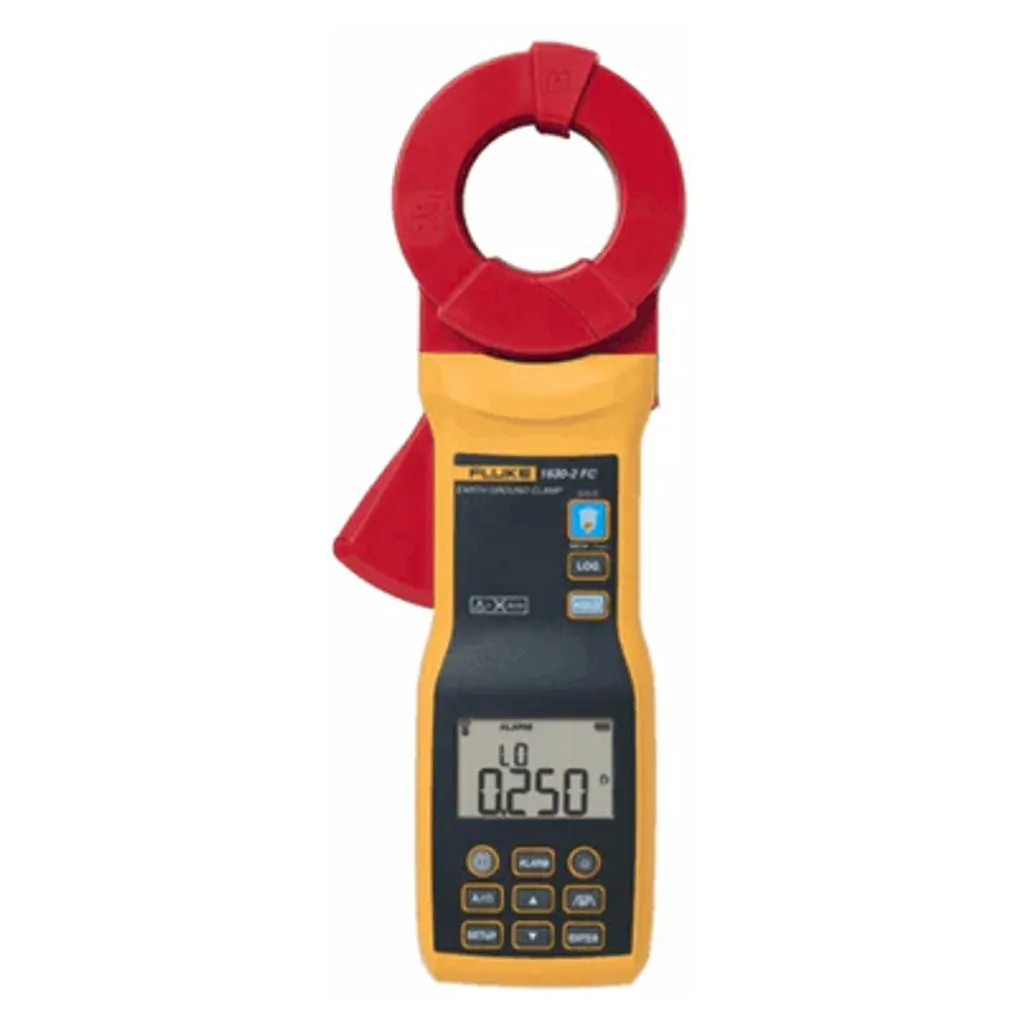

Product Description
-
Earth Ground Ac Leakage Current Measurement
-
Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting
-
Rugged
-
Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments
-
Logging Measurements
-
The earth ground clamp saves time by automatically recording data at pre-set intervals and saves up to 32,760 measurements in memory at the set logging interval. Saves time by recording and storing measured values
-
Alarm Threshold
-
User-defined high/low alarm limits, for rapid measurement evaluation
-
Band-Pass Filter
-
Selectable band-pass filter function removes unwanted noise from the ac leakage current measurement
-
In Ground Resistance measurement mode, with backlight turned off, and RF mode turned off
Product Specification
|
Brand |
Fluke |
|
|
Type |
Resistance Meter |
|
|
Model |
1630 |
|
|
Maximum Voltage To Earth Ground |
1000 V |
|
|
Battery Type |
AA alkaline IEC/EN LR6 (x4) |
|
|
Battery Life |
More than 15 hours* |
|
|
Frequency Range |
40 Hz to 1 kHz |
|
|
Ingress Protection |
IEC/EN 60529: IP30 with jaw closed |
|
|
LCD |
Digital reading |
9999 counts |
|
Refresh rate |
4 per second |
|
|
Operating Temperature |
-10 °C to 50 °C |
|
|
Storage Temperature |
-20 °C to 60 °C |
|
|
Operating Humidity |
Non condensing (<10 °C) (< 50 °F) |
|
|
≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F]) |
||
|
≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F]) |
||
|
≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F]) |
||
|
(Non condensing) |
||
|
Operating Altitude |
2000 m (6561 feet) |
|
|
Storage Altitude |
12 000 m (39,370 feet) |
|
|
Reference Temperature |
23 °C ±5 °C (73 °F ±9 °F) |
|
|
Temperature Coefficient |
0.15% x (specified accuracy)/ °C (<18 °C or >28 °C [<64.4 °F or >82.4 °F]) |
|
|
Overload Indication |
OL |
|
|
Data Logging Capacity |
Minimum of 32,760 measurements |
|
|
Data Logging Interval |
1 second to 59 minutes and 59 seconds |
|
|
Display Reading Specification With Standard Loop Resistance |
||
|
Input (Ω) |
Minimum |
Maximum |
|
0.474 |
0.417 |
0.531 |
|
0.5 |
0.443 |
0.558 |
|
10 |
9.55 |
10.45 |
|
100 |
96 |
104 |
|
General |
IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1 |
|
|
Measurement |
IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V |
|
|
Current Clamp For Leakage Current Measurements |
IEC/EN 61557-13: Class 2, ≤30 A/m |
|
|
Resistance To Earth |
IEC/EN 61557-5 |
|
|
Effectiveness Of Thepprotective Measures |
IEC/EN 61557-16 |
|
|
Electromagnetic Compatibility (EMC) |
International |
IEC/EN 61326-1: Portable Electromagnetic Environment |
|
CISPR 11: Group 1, Class B, IEC/EN 61326-2-2 |
||
|
Korea (KCC) |
Class A equipment (Industrial Broadcast & Communications Equipment) |
|
|
USA (FCC) |
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
|
|
Frequency Range |
2412 MHz to 2462 MHz |
|
|
Output Power |
<10 mW |
|
|
Radio Frequency Certification |
FCC ID:T68-FBLE IC:6627A-FBLE |
|
|
Conductor Size |
40 mm (1.57 in) approximately |
|
|
Dimensions (L X W X H) |
283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in) |
|
|
Weight |
880g (31 oz) |
|
