Product Details
＋
Product Description
-

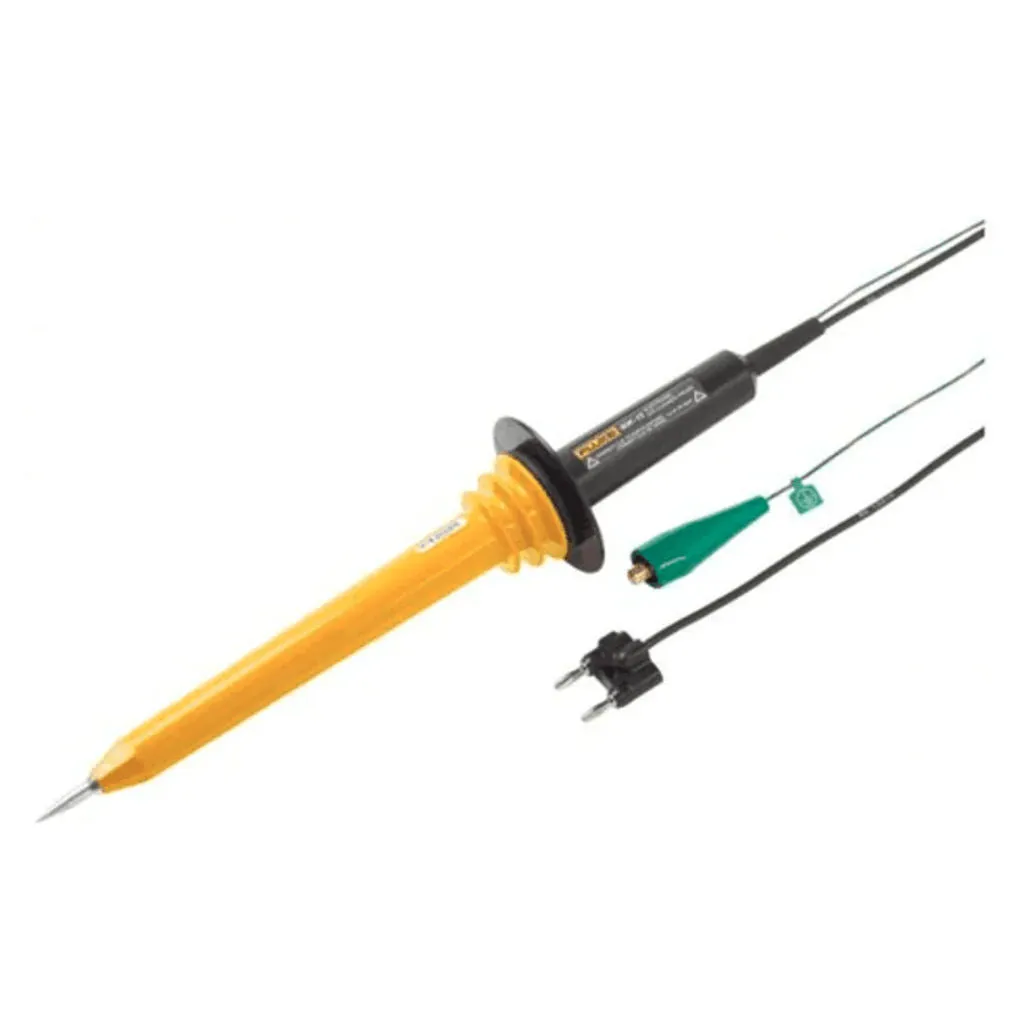

The 80K-15 is a high voltage probe designed to extend the voltage measuring capability of an AC/DC voltmeter to 15,000 volts peak AC or DC Overvoltage Category I
-
This means the probe can only be used to make measurements on energy limited circuits within equipment
Product Specification
|
Brand |
Fluke |
|
Type |
Probe |
|
Model |
80k-15 |
|
Voltage Range |
0 to 15kV DC or peak AC, 10kV rms AC |
|
Basic Accuracy: |
DC /- 2% 60Hz: /- 5% |
|
Safety Standards |
IEC 1010-2-031:1993, Type B, 40 kV DC or peak AC, 28kV rms AC, Overvoltage Category I (voltage derived from limited energy transformer) |
|
Division Ratio |
1000:1 |
|
Input Resistance |
1000 Megohm |
|
Required Meter Input Resistance |
10 Megohm |
