The DIP switch is a manually operated switch commonly used in electronics for configuration purposes.

Here's a breakdown of its features:

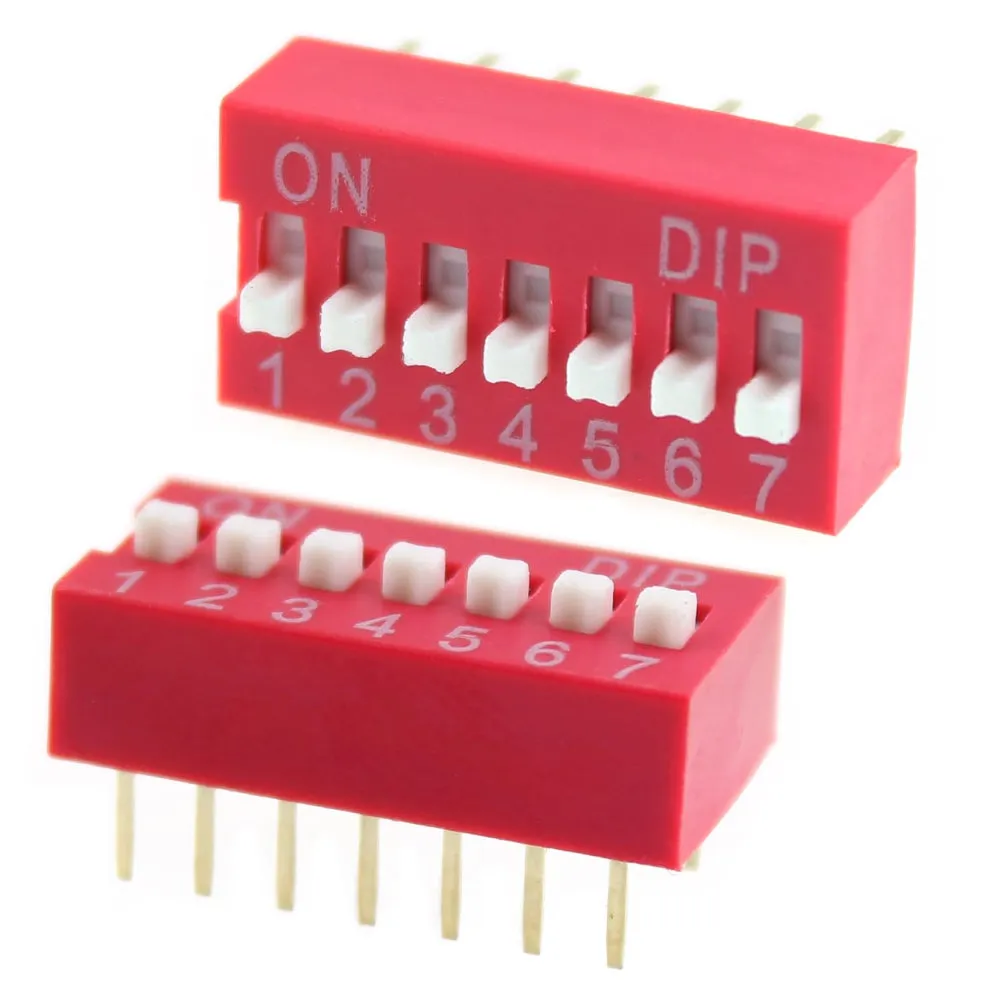

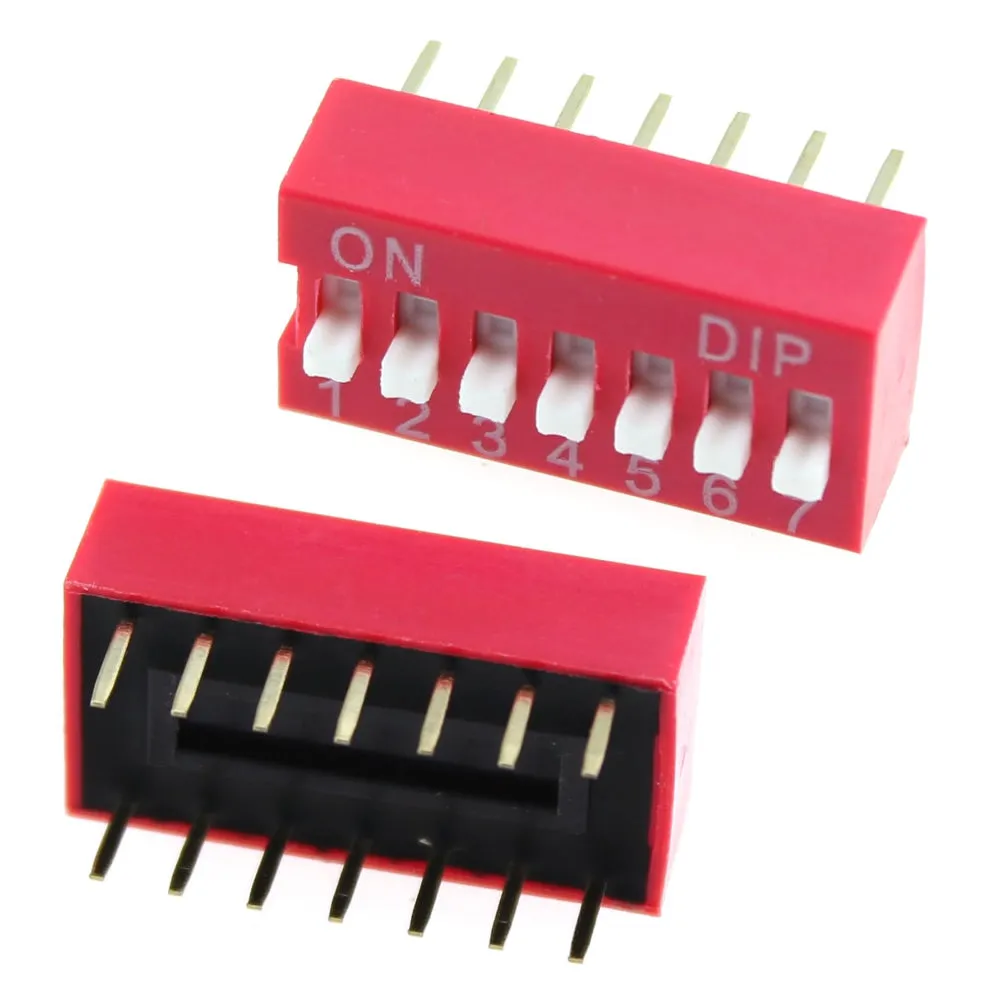

Name: DIP Switch 14 Pin (7 Bit) Pitch 2.54mm
SKU: 2239067

Number of Pins (14): This refers to the number of electrical connections on the switch. In this case, there are 14 pins.

Bit Configuration (7 Bit): The switch is configured to represent 7 bits of binary information. Each bit can be independently set to either ON or OFF, allowing for various binary combinations.

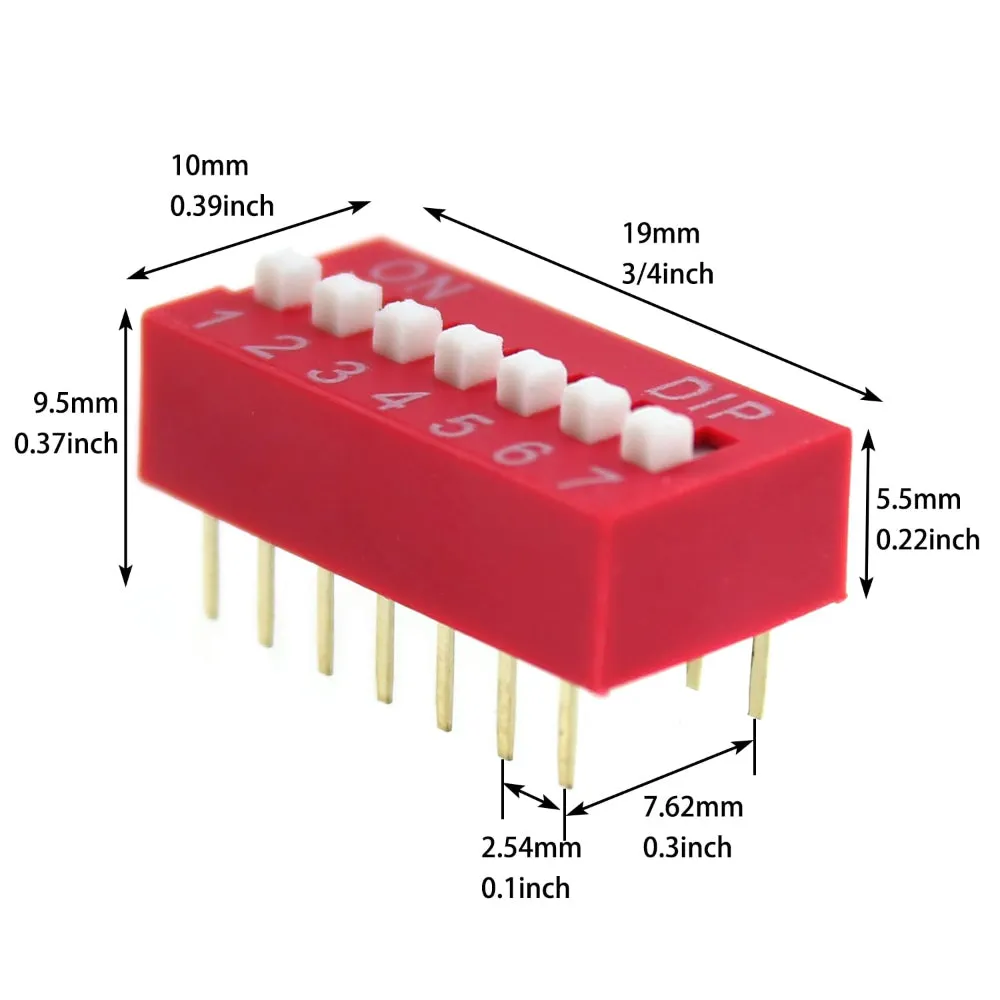

Pitch (2.54mm): This is the distance between the center of one pin to the center of the adjacent pin. A pitch of 2.54mm is a standard measurement for DIP switches and is commonly used in electronics, especially on printed circuit boards (PCBs).

Applications:

Prototyping: They are commonly used in prototyping scenarios where temporary configuration changes are needed.

Electronic Modules: DIP switches are found in various electronic modules and devices where user-adjustable settings are required.

Board-level Configuration: DIP switches are frequently used on PCBs to set parameters or configure the behavior of a device.
