Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPDT |
| Current Rating | 8 A |
| Enclosure Rating | IP20 |
| IP Rating | IP20 |
| Monitoring Function | Current Monitor |
| Mounting Type | Socket |
| Output Type | SPDT |

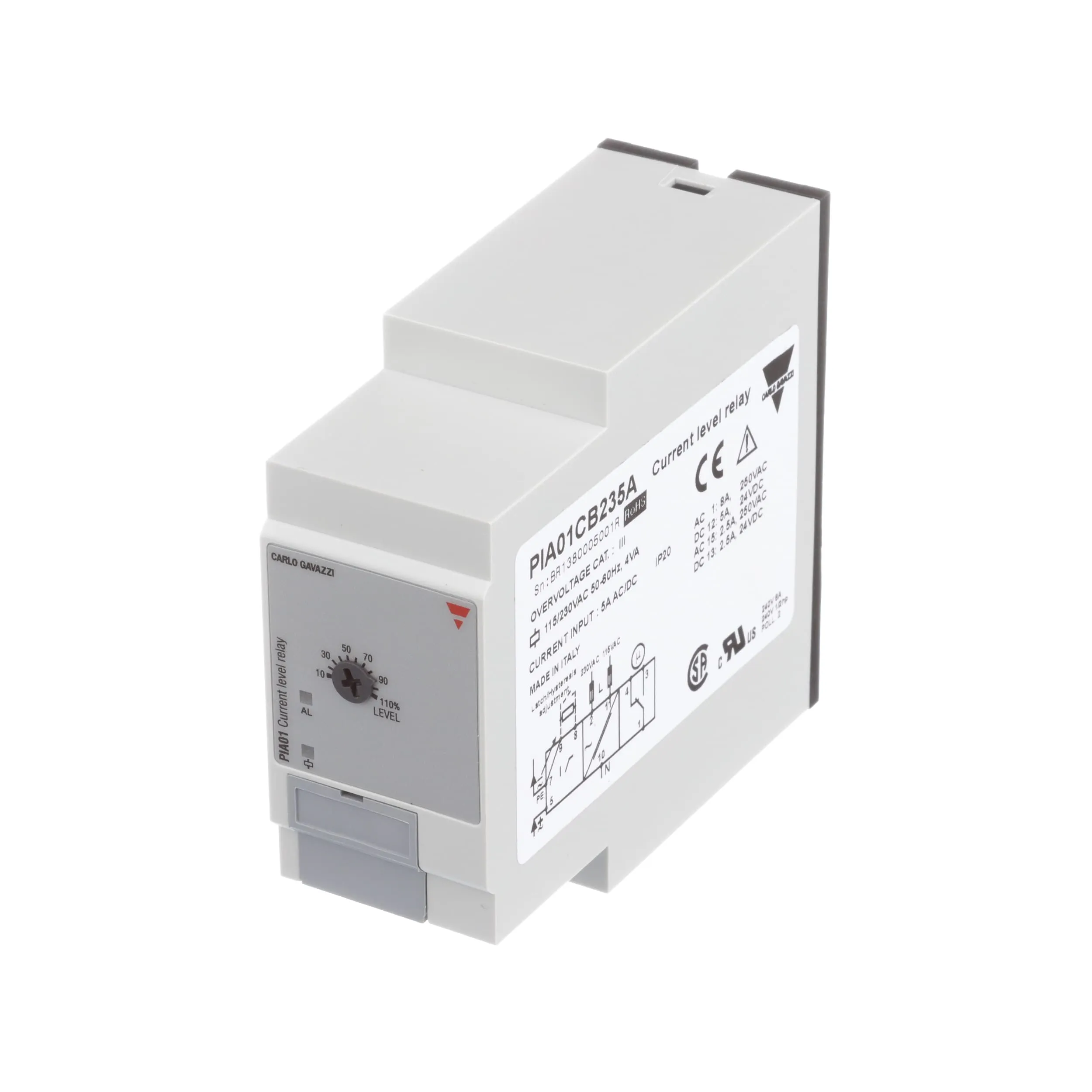

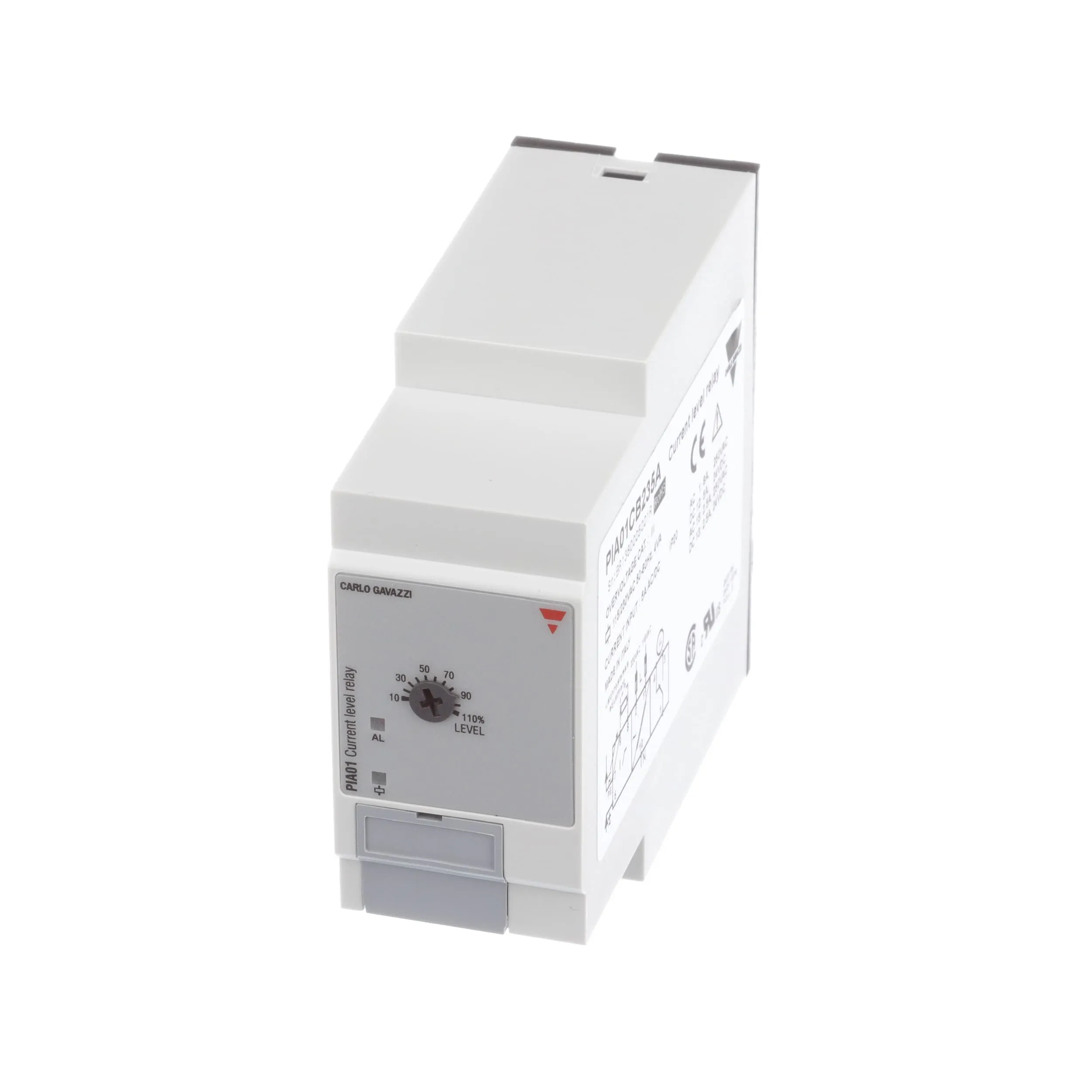

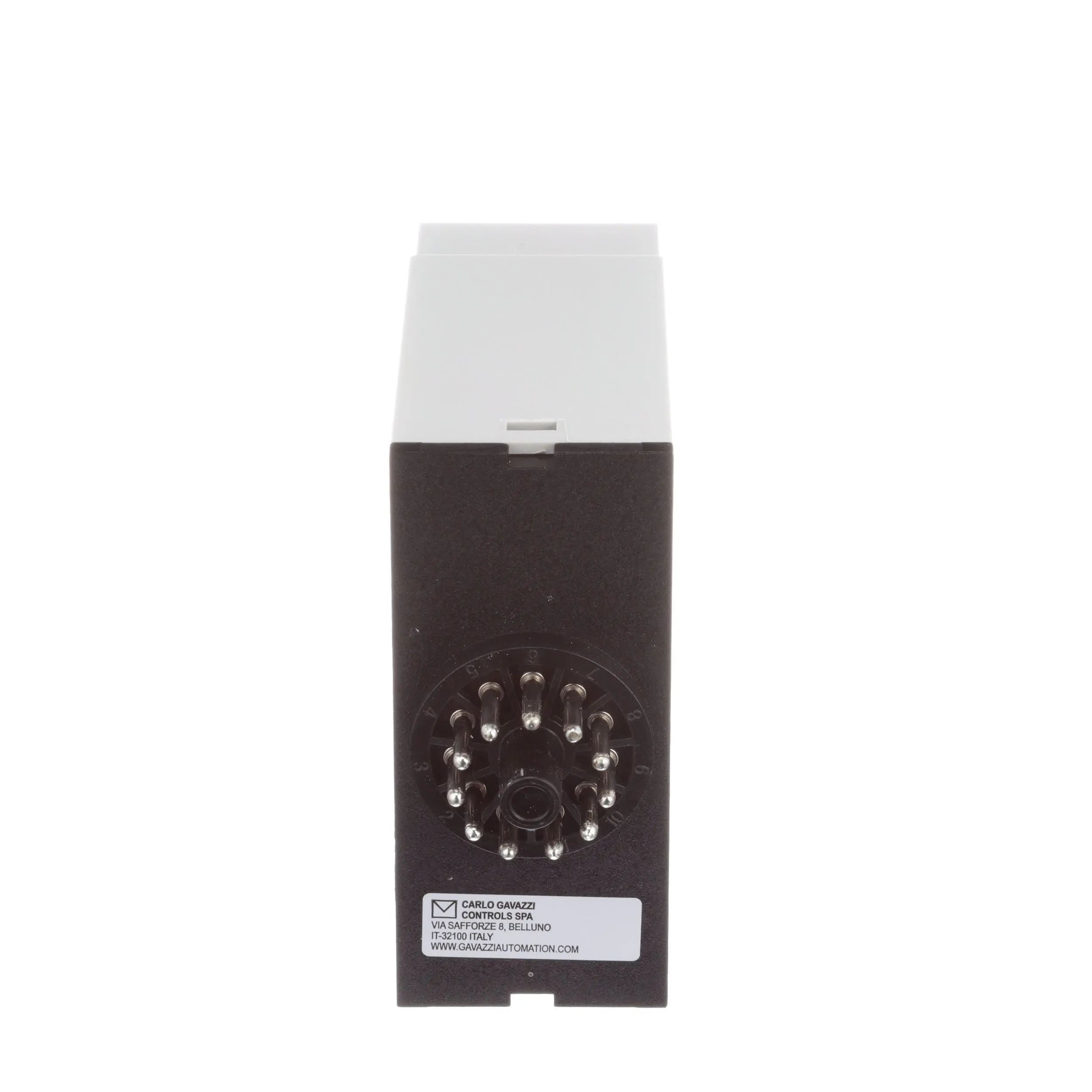

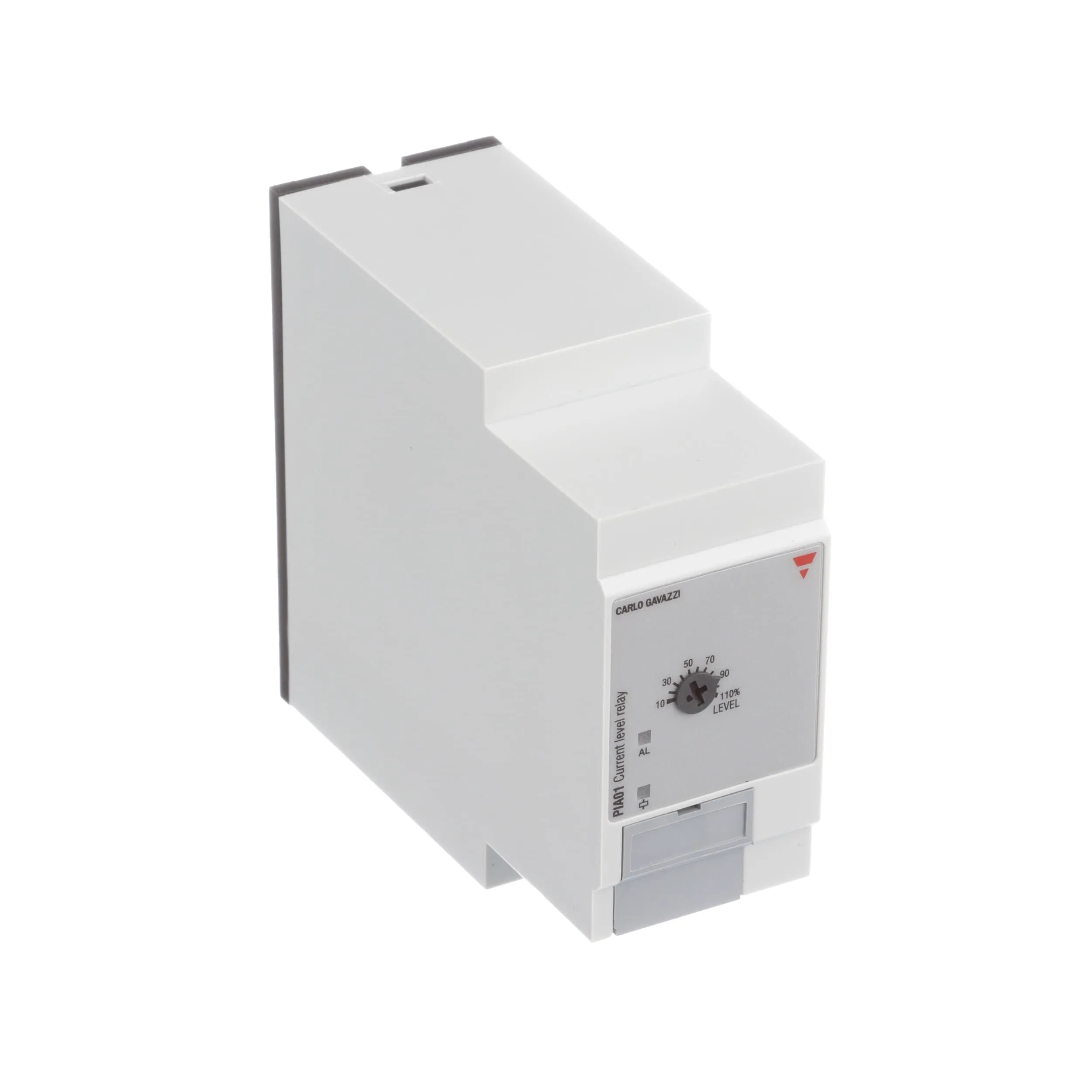

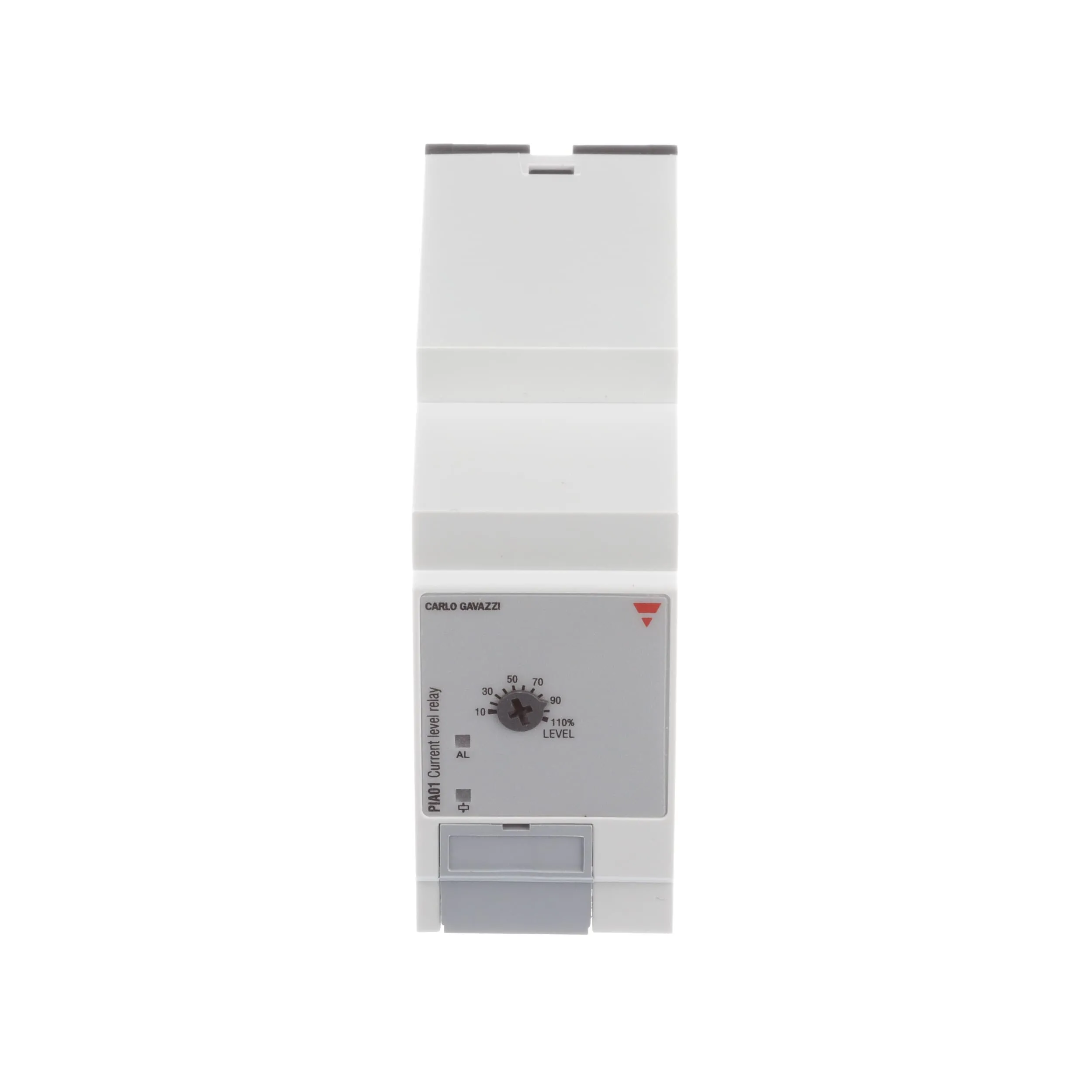

| Product Description | PIA01 are precise AC⁄DC over current monitoring relays. Direct measuring or through current transformer. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the relay status. Through the built-in shunt it is possible to monitor loads up to 5 A AC⁄DC. |
| Product Header | SPDT Monitoring Relay |
| Relay Type | Electromechanical |
| Series | |
| Special Features | LED Indicates Relay Status, Monitors AC Single-Phase or DC Voltages, Standard 8-Pin Octal Socket Mounting |
| Standards | CE, CSA, UL |
| Supply Voltage | 24 to 28 VAC/VDC |
| Voltage Rating | 250/24 VAC/VDC |
| Voltage, Control | 115⁄230 VAC |
Overview
DIB01/PIB01 Series Over/Under Current Relay
Carlo Gavazzi DIB01 and PIB01 series are precise TRMS AC/DC over or under current monitoring relays. The DIB and PIB ranges allow direct measuring or through current transformer. The current monitoring relays have a built-in latch function that allows the ON-position of the relay output to be maintained. The front facing LED's indicate the state of the alarm and the output relay.
