Features:
- Wide coverage up to 1100 V / 1 A DC 20 W max.
- 10 fA measure resolution
- 0.012% basic measure accuracy with 6 1/2-digit resolution
- Five-inch, high resolution capacitive touch screen GUI
- Source and sink (4-quadrant) operation
- SCPI and TSP scripting programming modes
- TSP-Link for multi-channel I-V testing
- Front panel input banana jacks; rear panel high-voltage input triaxial connections
- Built-in context-sensitive help
- Front-panel USB 2.0 memory I/O port for transferring data, test scripts, and test configurations
Accesssories:
- Set of High Performance Test Leads (8608)
- USB Cable, Type A to Type B, 3.3 ft (USB-B-1)
- Safety Interlock Mating Connector (CS-1616-3)
- TSP-Link/Ethernet Cable (17469460X)
- QuickStart Guide
- Test Script Builder Software
- LabVIEW with IVI Drivers
Application:
Devices:
- Power semiconductors and materials: SiC, GaN, power MOSFETs, power diodes
- IGBT
- Thyristors, SCRs
- Transient suppression devices
- Circuit protection devices: TVS, MOVs, fuses, etc.
- Connectors, switches, relays
- Power management modules
- Batteries
Tests:
- I-V characterization
- Forward voltage
- Breakdown voltage
- Leakage current
- Isolation
- Hi-Pot
- Dielectric withstanding
Specifications:
- 1000 volts
- 20 watts
- 1 amp

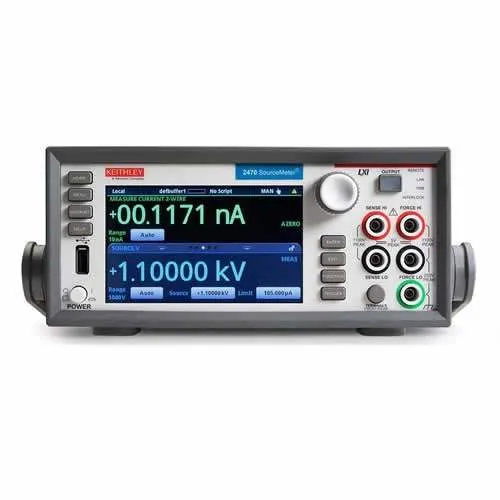

The Keithley 2470 High Voltage Graphical SourceMeter SMU Instrument, 1 A, 1000 V, 20 W brings advanced Touch, Test, Invent technology right to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touchscreen technology to make testing intuitive and minimize the learning curve to help engineers and scientists learn faster, work smarter, and invent easier. With its 1100 V and 10 fA capability, the 2470 is optimized for characterizing and testing high voltage, low leakage devices, materials, and modules, such as silicon carbide (SiC), gallium nitride (GaN), power MOSFETs, transient suppression devices, circuit protection devices, power modules, batteries, and much more. These new capabilities, combined with Keithley's decades of expertise in developing high precision, high-accuracy SMU instruments, make the 2470 a "go-to instrument" for high-voltage source and low-current measurement applications in the lab and in the test rack.
